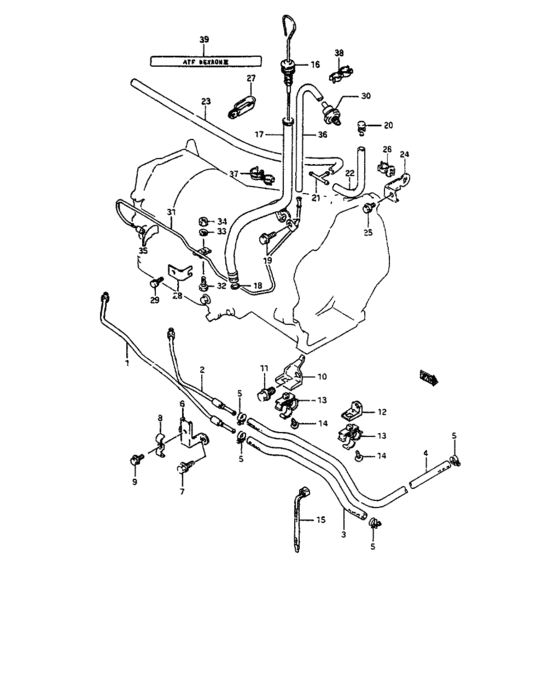

3at oil hose (AT:2DR:2 VALVE) Diagram Suzuki SIDEKICK
- Year
- -
- Sales region
- All regions
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-61A01-000
PIPE,OIL INLET
|
22910-61A01-000 |
— | ||
|
2
|
2
22920-61A01-000 PIPE,OIL OUTLET |
22920-61A01-000 |
US $27.05 |
||
|
3
|
3
24891-56X52-000 HOSE SETL:1000->920 |
24891-56X52-000 |
US $52.99 |
||
|
4
|
4
24891-56X52-000 HOSE SETL:1000->620 |
24891-56X52-000 |
US $52.99 |
||
|
5
|
5
09400-15302-000
Clamp
|
09400-15302-000 |
— | ||
| replacement | |||||
|
5
|
5
09400-15311-000 CLAMP |
09400-15311-000 |
US $23.20 |
||
|
6
|
6
22933-61A01-000
ブラケット,オイルパイプクランプ
|
22933-61A01-000 |
— | ||
|
7
|
7
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
7
|
7
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
8
|
8
24899-85500-000
PLATE,OIL PIPE
|
24899-85500-000 |
— | ||
|
9
|
9
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
9
|
9
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
10
|
10
22934-61A00-000
Bracket,oil hose clamp,no.1
|
22934-61A00-000 |
— | ||
|
11
|
11
01550-10163-000
Bolt
|
01550-10163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1016B-000 BoltPlug, oil gallery |
01550-1016B-000 |
from US $0.96 |
||
|
11
|
11
01550-1016A-000 BoltPlug, oil gallery |
01550-1016A-000 |
from US $4.96 |
||
|
12
|
12
22935-61A00-000
Bracket,oil hose clamp,no.2
|
22935-61A00-000 |
— | ||
| replacement | |||||
|
12
|
12
22935-61A10-000 BRACKET,OIL HOSE CLAMP,NO.2 |
22935-61A10-000 |
US $3.53 |
||
|
13
|
13
09403-14309-000 CLAMP |
09403-14309-000 |
US $4.32 |
||
|
14
|
14
03541-06253-000
Screw, lower
|
03541-06253-000 |
— | ||
| replacement | |||||
|
14
|
14
03542-0625B-000 SCREW |
03542-0625B-000 |
US $0.80 |
||
|
15
|
15
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
16
|
16
22951-61A01-000 GAUGE,OIL |
22951-61A01-000 |
US $20.79 |
||
|
17
|
17
22940-61A50-000
Tube, oil filler
->22940-61A30,USED WITH 22961-61A30 |
22940-61A50-000 |
— | ||
| replacements | |||||
|
17
|
17
22940-61A30-000
TUBE,OIL FILLER
->22940-61A30,USED WITH 22961-61A30 |
22940-61A30-000 |
— | ||
|
17
|
17
22951-61A01-000 GAUGE,OIL->22940-61A30,USED WITH 22961-61A30 |
22951-61A01-000 |
US $20.79 |
||
|
17
|
17
22961-61A30-000
Seal,oil filler tube
->22940-61A30,USED WITH 22961-61A30 |
22961-61A30-000 |
— | ||
|
17
|
17
24839-61A31-000 EMBLEM,ATF->22940-61A30,USED WITH 22961-61A30 |
24839-61A31-000 |
US $2.47 |
||
|
17
|
17
22940-61A30-000
TUBE,OIL FILLER
JSAETA01C00169193~,JSAETA01V00148753~ |
22940-61A30-000 |
— | ||
|
18
|
18
09280-15009-000
O ring,d:2.6,id:14.5
|
09280-15009-000 |
— | ||
|
18
|
18
22961-61A30-000
Seal,oil filler tube
JSAETA01C00169193~,JSAETA01V00148753~ |
22961-61A30-000 |
— | ||
|
19
|
19
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
20
|
20
46543-60A00-000
プラグ,ブリーザ
<-24820-60A00 |
46543-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
27991-65D01-000 PLUG,BREATHER<-24820-60A00 |
27991-65D01-000 |
from US $1.92 |
||
|
21
|
21
09367-08004-000 3 WAY3 way (m8) |
09367-08004-000 |
from US $2.24 |
||
|
22
|
22
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
22
|
22
44421-12FR0-000 HOSE |
44421-12FR0-000 |
from US $16.64 |
||
|
23
|
23
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
23
|
23
44421-12FR0-000 HOSE |
44421-12FR0-000 |
from US $16.64 |
||
|
24
|
24
24831-57800-000
Bracket, hose clamp
|
24831-57800-000 |
— | ||
|
25
|
25
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
25
|
25
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
26
|
26
09403-12314-000 CLAMP |
09403-12314-000 |
US $17.30 |
||
|
26
|
26
09403-11311-000 CLAMPJSAETA01C00165108~,JSAETA01V00143981~ |
09403-11311-000 |
US $1.38 |
||
|
27
|
27
09403-13406-000
クランプ
|
09403-13406-000 |
— | ||
|
28
|
28
28272-61A00-000
BRACKET,K.D.CABLE
|
28272-61A00-000 |
— | ||
|
29
|
29
01570-06163-000
Bolt
|
01570-06163-000 |
— | ||
| replacements | |||||
|
29
|
29
01570-0616B-000 Bolt |
01570-0616B-000 |
from US $0.80 |
||
|
29
|
29
01570-0616A-000 Bolt |
01570-0616A-000 |
from US $0.80 |
||
|
30
|
30
18133-61A10-000
FILTER,VACUUM MODULATOR GAS
|
18133-61A10-000 |
— | ||
|
31
|
31
28260-61A01-000
PIPE,VACUUM MODULATOR
|
28260-61A01-000 |
— | ||
|
32
|
32
01500-08203-000
Bolt
|
01500-08203-000 |
— | ||
| replacement | |||||
|
32
|
32
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
33
|
33
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
33
|
33
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
33
|
33
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
34
|
34
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
34
|
34
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
34
|
34
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
35
|
35
09354-54115-60C
Hose, modulator
|
09354-54115-60C |
— | ||
|
36
|
36
09354-54115-600
ホース,5.4X11.4X600
|
09354-54115-600 |
— | ||
| replacement | |||||
|
36
|
36
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum |
09355-54115-600 |
from US $7.20 |
||
|
37
|
37
09408-00105-000 CLAMP |
09408-00105-000 |
US $29.80 |
||
|
38
|
38
09408-00138-000 CLAMP |
09408-00138-000 |
US $27.20 |
||
|
39
|
39
24839-61A31-000 EMBLEM,ATF |
24839-61A31-000 |
US $2.47 |
||
