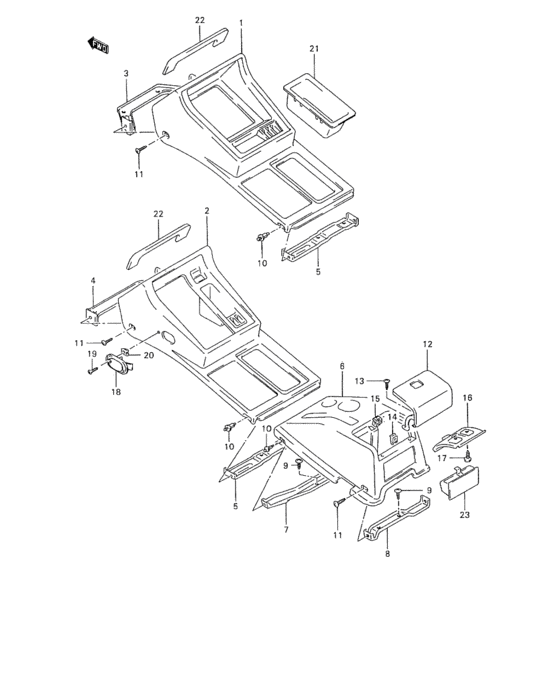

B console box (B CONSOLE BOX) Diagram Suzuki SIDEKICK SPORT
- Year
- -
- Sales region
- U.S.A.
- drive
- 2WD
- transmission
- AT
- grade
- JX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
73911-62A50-5ES
BOX,CENTER CONSOLE FR
AT:96 MODEL,97 MODEL |
73911-62A50-5ES |
— | ||
|
2
|
2
73911-62A50-T01
BOX,CENTER CONSOLE FR
AT:98 MODEL,PRODUCT OF JAPAN |
73911-62A50-T01 |
— | ||
|
4
|
4
73931-60A10-000 BRACKET,CTR CONSOLE FR NO.1AT |
73931-60A10-000 |
US $8.76 |
||
|
5
|
5
73932-60A10-000 BRACKET,CTR CONSOLE FR NO.2 |
73932-60A10-000 |
US $16.80 |
||
|
6
|
6
73921-63AL0-5ES
Box, ctr console rear
|
73921-63AL0-5ES |
— | ||
|
6
|
6
73921-79E00-5ES
BOX,CENTER CONSOLE RR
S:96 MODEL; SE416 |
73921-79E00-5ES |
— | ||
|
6
|
6
73921-79E00-T01 BOX, CENTER CONSOLE REAR (GRAY)S:98 MODEL,PRODUCT OF JAPAN; SE416 |
73921-79E00-T01 |
US $73.42 |
||
|
6
|
6
73920-79E10-5ES
Box, ctr console rr
SV418:96 MODEL,97 MODEL |
73920-79E10-5ES |
— | ||
|
6
|
6
73920-79E10-T01 BOX,CENTER CONSOLE REAR(GRAY)SV418:98 MODEL |
73920-79E10-T01 |
US $83.90 |
||
|
7
|
7
73933-56B00-000 BRACKET,CTR CONSOLE RR NO.1 |
73933-56B00-000 |
US $16.80 |
||
|
8
|
8
73934-60A00-000 BRACKET,CTR CONSOLE RR NO.2 |
73934-60A00-000 |
US $10.40 |
||
|
9
|
9
03241-06123-000
Screw
|
03241-06123-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0612A-000 SCREW |
03241-0612A-000 |
US $0.80 |
||
|
10
|
10
09409-06314-5PK CLIP(BLACK) |
09409-06314-5PK |
from US $1.46 |
||
|
11
|
11
03242-05123-000
Screw, inner cover
|
03242-05123-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
12
|
12
73922-56B00-5ES
LID,CTR CONSOLE RR
|
73922-56B00-5ES |
— | ||
|
13
|
13
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
14
|
14
09148-05004-000 NUT |
09148-05004-000 |
US $11.80 |
||
| replacement | |||||
|
14
|
14
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
15
|
15
73170-50A00-000 LOCK,I/P CTR BOXLock, lid |
73170-50A00-000 |
from US $10.40 |
||
|
16
|
16
73923-56B00-000 GUIDE,ASHTRAY |
73923-56B00-000 |
US $12.07 |
||
|
17
|
17
03541-05163-000
Screw
|
03541-05163-000 |
— | ||
| replacement | |||||
|
17
|
17
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
18
|
18
75818-60E30-5ES
CAP,CTR CONSOLE FR
AT:96 MODEL,97 MODEL |
75818-60E30-5ES |
— | ||
| replacement | |||||
|
18
|
18
75818-60E30-T01 CAP,CTR CONSOLE FRAT:96 MODEL,97 MODEL |
75818-60E30-T01 |
US $8.02 |
||
|
18
|
18
75818-60E30-T01 CAP,CTR CONSOLE FRAT:98 MODEL,PRODUCT OF JAPAN |
75818-60E30-T01 |
US $8.02 |
||
|
19
|
19
03221-05163-000
SCREW
AT |
03221-05163-000 |
— | ||
| replacement | |||||
|
19
|
19
03221-0516A-000 SCREWAT |
03221-0516A-000 |
US $0.80 |
||
|
20
|
20
09148-05038-000 NUTNut, inner AT |
09148-05038-000 |
from US $0.91 |
||
|
21
|
21
73913-62A00-5ES
TRAY,CENTER CONSOLE FR
2WD |
73913-62A00-5ES |
— | ||
|
21
|
21
73913-62A10-5ES
Tray, ctr console fr
2WD:AT:96 MODEL,97 MODEL |
73913-62A10-5ES |
— | ||
| replacement | |||||
|
21
|
21
73913-62A10-T01
TRAY,CENTER CONSOLE FR
2WD:AT:96 MODEL,97 MODEL |
73913-62A10-T01 |
— | ||
|
21
|
21
73913-62A10-T01
TRAY,CENTER CONSOLE FR
2WD:AT:98 MODEL,PRODUCT OF JAPAN |
73913-62A10-T01 |
— | ||
|
22
|
22
73915-60A00-000 CUSHION,CENTER CONSOLE |
73915-60A00-000 |
US $20 |
||
|
23
|
23
89820-56B00-5ES
ASHTRAY,RR
96 MODEL,97 MODEL |
89820-56B00-5ES |
— | ||
|
23
|
23
89820-56B00-T01
ASHTRAY,RR
98 MODEL,PRODUCT OF JAPAN |
89820-56B00-T01 |
— | ||
| replacement | |||||
|
23
|
23
89820-56B00-P4Z
Ashtray,rr
98 MODEL,PRODUCT OF JAPAN |
89820-56B00-P4Z |
— | ||
