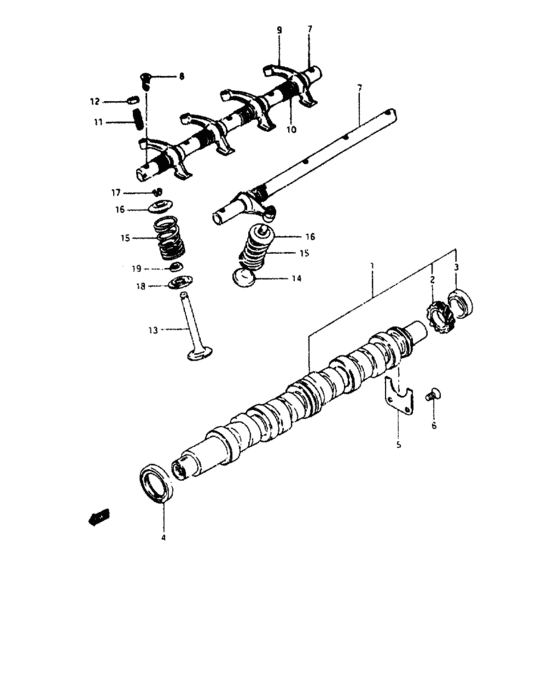

Camshaft and valve (CAMSHAFT AND VALVE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-M8000-200
Cam shaft
|
12710-M8000-200 |
— | ||
|
2
|
2
12721-73000-000 GEAR,DISTRIBUTOR DRIVE NT:13NT:13 |
12721-73000-000 |
US $39.74 |
||
|
3
|
3
12731-M7300-100
Cam, fuel pump
|
12731-M7300-100 |
— | ||
|
4
|
4
09283-32038-000
オイルシール,32X47X6
|
09283-32038-000 |
— | ||
| replacement | |||||
|
4
|
4
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
US $11.10 |
||
|
5
|
5
12749-M7300-100
Plate, camshaft thrust
|
12749-M7300-100 |
— | ||
|
6
|
6
02122-M0612-800
Screw
|
02122-M0612-800 |
— | ||
|
7
|
7
12860-M7300-400
Shaft, valve rocker
|
12860-M7300-400 |
— | ||
|
8
|
8
02122-M0616-800
Screw
|
02122-M0616-800 |
— | ||
|
9
|
9
12841-M7300-200
Arm, Valve Rocker
|
12841-M7300-200 |
— | ||
|
10
|
10
12891-M7300-100
Spring, rocker arm
|
12891-M7300-100 |
— | ||
|
11
|
11
12846-M7301-000
Screw, valve adjusting
|
12846-M7301-000 |
— | ||
|
12
|
12
09159-07002-000 NUT |
09159-07002-000 |
US $18 |
||
|
13
|
13
12911-M7301-200
Valve, Intake
|
12911-M7301-200 |
— | ||
|
14
|
14
12915-M7301-200
Valve, Exhaust
|
12915-M7301-200 |
— | ||
|
15
|
15
12921-M7300-200
Spring, valve
|
12921-M7300-200 |
— | ||
|
16
|
16
12931-M8201-000
Retainer, valve spring
|
12931-M8201-000 |
— | ||
|
17
|
17
12932-M8201-000
Cotter, valve
|
12932-M8201-000 |
— | ||
|
18
|
18
12933-M7300-000
Seat, valve spring
|
12933-M7300-000 |
— | ||
|
19
|
19
09289-07005-000
オイルシール
|
09289-07005-000 |
— | ||
| replacement | |||||
|
19
|
19
09289-07007-000 SEAL,OIL(6.5X14.5X9.7)Seal |
09289-07007-000 |
from US $7.04 |
||
