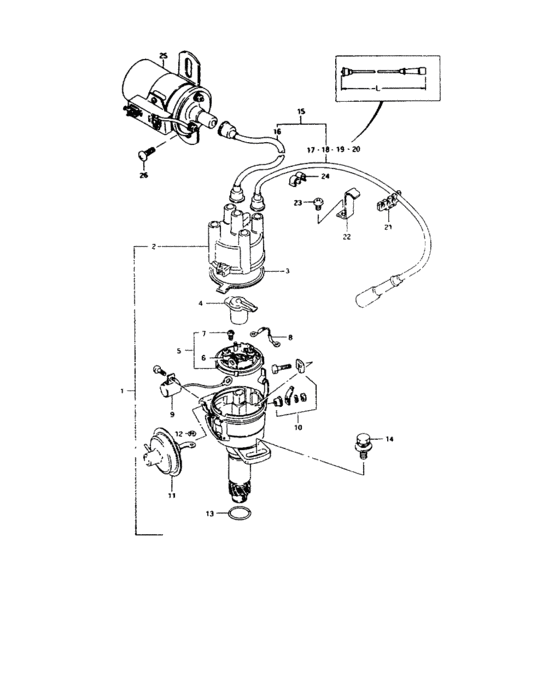

Distributor (DISTRIBUTOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-80040-000
DISTRIBUTOR ASSY
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
33100-80040-000 |
— | ||
|
2
|
2
33321-60A10-000 CAP,DISTRIBUTOR |
33321-60A10-000 |
US $15.96 |
||
|
3
|
3
33324-79610-000 PACKING,CAP |
33324-79610-000 |
US $1.52 |
||
|
4
|
4
33310-82010-000 ROTOR ASSY |
33310-82010-000 |
US $8.21 |
||
|
5
|
5
33102-75110-000 BREAKER ASSY |
33102-75110-000 |
US $34.40 |
||
|
6
|
6
33140-74010-000
POINT ASSY
|
33140-74010-000 |
— | ||
|
7
|
7
33151-52011-000 SCREW,POINT |
33151-52011-000 |
US $0.99 |
||
|
8
|
8
33341-76410-000 WIRE,LEAD |
33341-76410-000 |
US $4.05 |
||
|
9
|
9
33261-73010-000 CONDENSER |
33261-73010-000 |
US $12 |
||
|
10
|
10
33210-80030-000
Ens terminal.
|
33210-80030-000 |
— | ||
|
11
|
11
33230-80061-000
Controller assy, vacuum
|
33230-80061-000 |
— | ||
| replacement | |||||
|
11
|
11
33230-60A30-000 CONTROLLER ASSY,VACUUM |
33230-60A30-000 |
US $79.20 |
||
|
12
|
12
33239-76410-000 E-RING |
33239-76410-000 |
US $1.60 |
||
|
13
|
13
33278-52010-000
Oリング
|
33278-52010-000 |
— | ||
| replacement | |||||
|
13
|
13
33278-85310-000 O-RING |
33278-85310-000 |
US $2.74 |
||
|
14
|
14
09138-08003-000 SCREW(8X30) |
09138-08003-000 |
from US $1.49 |
||
|
15
|
15
33700-M8003-000
Cord assy, high tension
RHD |
33700-M8003-000 |
— | ||
|
15
|
15
33700-M8005-000
Cord assy, high tension
LHD |
33700-M8005-000 |
— | ||
|
16
|
16
33710-M8003-000
Cord no.1
RHD |
33710-M8003-000 |
— | ||
|
16
|
16
33710-M8005-000
Cord no.1
LHD |
33710-M8005-000 |
— | ||
|
17
|
17
33730-M8203-000
Cord no.2
|
33730-M8203-000 |
— | ||
|
18
|
18
33740-M8203-000
Cord no.3
|
33740-M8203-000 |
— | ||
|
19
|
19
33750-M8203-000
Cord no.4
|
33750-M8203-000 |
— | ||
|
20
|
20
33760-M8203-000
Cord no.5
|
33760-M8203-000 |
— | ||
|
21
|
21
33883-M6320-000
Clamp, cord no. 1
|
33883-M6320-000 |
— | ||
|
22
|
22
33881-M8000-000
Clamp, cord no.2
|
33881-M8000-000 |
— | ||
|
23
|
23
02112-M0608-600
Screw
|
02112-M0608-600 |
— | ||
|
24
|
24
09408-M0003-300
Clamp vaccum hose
|
09408-M0003-300 |
— | ||
|
25
|
25
33410-M5802-000
Coil assy, ignition
|
33410-M5802-000 |
— | ||
|
26
|
26
02142-M0610-600
Screw
|
02142-M0610-600 |
— | ||
