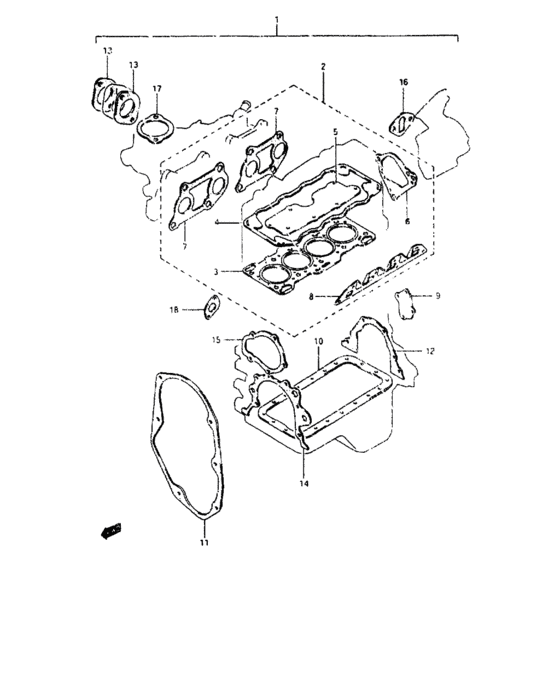

Engine gaskets (ENGINE GASKETS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-M8081-500
Gasket set, engine
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
11400-M8081-500 |
— | ||
|
2
|
2
11100-M8081-200
Gasket set, cylinder nead
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
11100-M8081-200 |
— | ||
|
3
|
3
11141-75120-000 GASKET,CYL HEAD NA |
11141-75120-000 |
US $64.80 |
||
|
4
|
4
11109-M7304-000
Gasket, cylinder head cover
|
11109-M7304-000 |
— | ||
|
5
|
5
11173-M7304-100
Gasket, breather plate
|
11173-M7304-100 |
— | ||
|
6
|
6
11169-M7301-200
Gasket, case
|
11169-M7301-200 |
— | ||
|
7
|
7
13119-M7304-100
Gasket, intake manifold
|
13119-M7304-100 |
— | ||
|
8
|
8
14140-M7304-000
Gasket, manifold
|
14140-M7304-000 |
— | ||
|
9
|
9
11229-M7300-000
Gasket, cyl block plate
|
11229-M7300-000 |
— | ||
|
10
|
10
11529-M7304-100
Gasket, oil pan
|
11529-M7304-100 |
— | ||
|
11
|
11
11399-M7301-000
Gasket, cover
|
11399-M7301-000 |
— | ||
|
12
|
12
11349-M7301-200
Gasket
|
11349-M7301-200 |
— | ||
|
13
|
13
13125-M8003-000
Gasket, carburetor
|
13125-M8003-000 |
— | ||
|
14
|
14
16119-M7301-100
Gasket, oil pump case
|
16119-M7301-100 |
— | ||
|
15
|
15
17431-M7301-100
Gasket, water pump
|
17431-M7301-100 |
— | ||
|
16
|
16
15319-M7303-100
Gasket
|
15319-M7303-100 |
— | ||
|
17
|
17
17569-M0001-100
Gasket, thermontat cap
|
17569-M0001-100 |
— | ||
|
18
|
18
17559-M9301-100
Gasket, water inlet pipe
|
17559-M9301-100 |
— |
