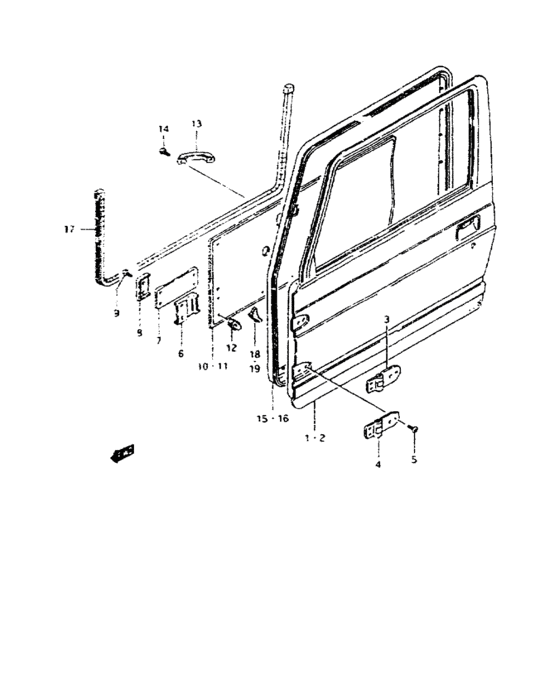

Front door (FRONT DOOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-82C80-000
Panel, front door rh
MODIFIED |
68001-82C80-000 |
— | ||
| replacements | |||||
|
1
|
1
03111-0625A-000 SCREWMODIFIED |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREWMODIFIED |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUTMODIFIED |
09148-06007-000 |
US $0.91 |
||
|
1
|
1
68001-80C12-000 PANEL ASSY,FRONT DOOR,RMODIFIED |
68001-80C12-000 |
US $983.44 |
||
|
1
|
1
03111-06253-000
Screw
MODIFIED |
03111-06253-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
MODIFIED |
03241-06123-000 |
— | ||
|
1
|
1
68001-80180-000
Panel, front door rh
PRE-MODIFIED |
68001-80180-000 |
— | ||
| replacements | |||||
|
1
|
1
03111-0625A-000 SCREWPRE-MODIFIED |
03111-0625A-000 |
from US $0.80 |
||
|
1
|
1
03241-0612A-000 SCREWPRE-MODIFIED |
03241-0612A-000 |
US $0.80 |
||
|
1
|
1
09148-06007-000 NUTPRE-MODIFIED |
09148-06007-000 |
US $0.91 |
||
|
1
|
1
68001-80C12-000 PANEL ASSY,FRONT DOOR,RPRE-MODIFIED |
68001-80C12-000 |
US $983.44 |
||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,RPRE-MODIFIED |
82201-82C00-000 |
from US $103.41 |
||
|
1
|
1
82610-70D02-000 STRIKER,FR DOOR LATCHPRE-MODIFIED |
82610-70D02-000 |
US $20 |
||
|
1
|
1
03111-06253-000
Screw
PRE-MODIFIED |
03111-06253-000 |
— | ||
|
1
|
1
03241-06123-000
Screw
PRE-MODIFIED |
03241-06123-000 |
— | ||
|
2
|
2
68002-82C70-000
Panel, front door lh
MODIFIED |
68002-82C70-000 |
— | ||
| replacements | |||||
|
2
|
2
03111-0625A-000 SCREWMODIFIED |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREWMODIFIED |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUTMODIFIED |
09148-06007-000 |
US $0.91 |
||
|
2
|
2
68002-82C72-000 PANEL ASSY,FRONT DOOR,LMODIFIED |
68002-82C72-000 |
US $393.76 |
||
|
2
|
2
03111-06253-000
Screw
MODIFIED |
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
MODIFIED |
03241-06123-000 |
— | ||
|
2
|
2
68002-80180-000
Panel, front door lh
PRE-MODIFIED |
68002-80180-000 |
— | ||
| replacements | |||||
|
2
|
2
03111-0625A-000 SCREWPRE-MODIFIED |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREWPRE-MODIFIED |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUTPRE-MODIFIED |
09148-06007-000 |
US $0.91 |
||
|
2
|
2
68002-80C12-000
PANEL ASSY,FRONT DOOR,L
PRE-MODIFIED |
68002-80C12-000 |
— | ||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,LPRE-MODIFIED |
82202-82C00-000 |
US $104.14 |
||
|
2
|
2
82610-70D02-000 STRIKER,FR DOOR LATCHPRE-MODIFIED |
82610-70D02-000 |
US $20 |
||
|
2
|
2
99000-79449-000 PLUG,KEY HOLE BLINDPRE-MODIFIED |
99000-79449-000 |
US $9.53 |
||
|
2
|
2
02142-05107-000 SCREWScrew, shift plate PRE-MODIFIED |
02142-05107-000 |
from US $0.80 |
||
|
2
|
2
09125-05042-000 SCREW(5X10)PRE-MODIFIED |
09125-05042-000 |
from US $0.91 |
||
|
2
|
2
03111-06253-000
Screw
PRE-MODIFIED |
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
PRE-MODIFIED |
03241-06123-000 |
— | ||
|
2
|
2
68002-80C11-000
パネルアッシ,ドア,レフト(ドアミラー)
LHD |
68002-80C11-000 |
— | ||
| replacements | |||||
|
2
|
2
68002-80C12-000
PANEL ASSY,FRONT DOOR,L
LHD |
68002-80C12-000 |
— | ||
|
2
|
2
03111-0625A-000 SCREWLHD |
03111-0625A-000 |
from US $0.80 |
||
|
2
|
2
03241-0612A-000 SCREWLHD |
03241-0612A-000 |
US $0.80 |
||
|
2
|
2
09148-06007-000 NUTLHD |
09148-06007-000 |
US $0.91 |
||
|
2
|
2
03111-06253-000
Screw
LHD |
03111-06253-000 |
— | ||
|
2
|
2
03241-06123-000
Screw
LHD |
03241-06123-000 |
— | ||
|
3
|
3
69310-M8011-000
Hinge, door upper
|
69310-M8011-000 |
— | ||
|
4
|
4
69320-M8011-000
Hinge, door lower
|
69320-M8011-000 |
— | ||
|
5
|
5
09125-08002-000
スクリュ,8X20
|
09125-08002-000 |
— | ||
| replacement | |||||
|
5
|
5
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
6
|
6
76182-M6310-100
Protector, trim
|
76182-M6310-100 |
— | ||
|
7
|
7
81811-M8010-000
Band, open stopper
|
81811-M8010-000 |
— | ||
|
8
|
8
76182-M5800-200
Garnish, open stopper
|
76182-M5800-200 |
— | ||
|
9
|
9
02132-M0520-500
Screw
|
02132-M0520-500 |
— | ||
|
10
|
10
83710-M8011-100
Trim, door rh
|
83710-M8011-100 |
— | ||
|
11
|
11
83720-M8011-100
Trim, door lh
|
83720-M8011-100 |
— | ||
|
12
|
12
09409-M0830-900
Clip, door trim
|
09409-M0830-900 |
— | ||
|
13
|
13
78271-M5805-300
Handle, inside pull
|
78271-M5805-300 |
— | ||
|
14
|
14
09125-M0604-100
Screw
|
09125-M0604-100 |
— | ||
|
15
|
15
84641-M8012-100
Weatherstrip, door rh
|
84641-M8012-100 |
— | ||
|
16
|
16
84651-M8012-100
Weatherstrip, door lh
|
84651-M8012-100 |
— | ||
|
17
|
17
84630-M8000-000
Trim, door opening
|
84630-M8000-000 |
— | ||
|
18
|
18
84642-80120-000 PAD,OPENING WEATHERSTRIP,R |
84642-80120-000 |
US $6.56 |
||
|
19
|
19
84652-80120-000 PAD,OPENING WEATHERSTRIP,L |
84652-80120-000 |
US $4.10 |
||
