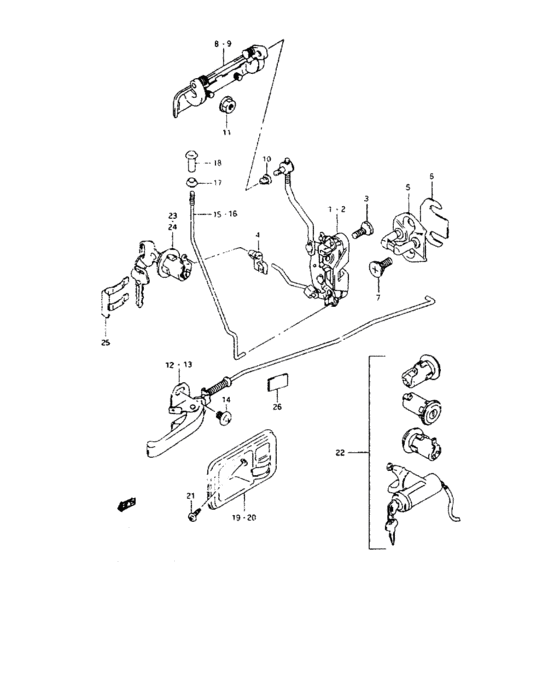

Front door lock (FRONT DOOR LOCK) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-M82C3-000
Latch assy, door rh
|
82201-M82C3-000 |
— | ||
|
1
|
1
82201-82C00-000 LATCH ASSY,FR DR,RGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
82201-82C00-000 |
from US $103.41 |
||
|
2
|
2
82202-M82C3-000
Latch assy, door lh
|
82202-M82C3-000 |
— | ||
|
2
|
2
82202-82C10-000
Latch assy, door lh
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
82202-82C10-000 |
— | ||
|
2
|
2
82202-82C00-000 LATCH ASSY,FR DR,LLHD |
82202-82C00-000 |
US $104.14 |
||
|
3
|
3
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
3
|
3
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
4
|
4
09209-M0501-600
Pin
RHD |
09209-M0501-600 |
— | ||
|
5
|
5
82610-M8500-000
Striker, lock
|
82610-M8500-000 |
— | ||
|
6
|
6
82681-M8010-000
Spacer
|
82681-M8010-000 |
— | ||
|
7
|
7
09137-08004-000 SCREW(8X18) |
09137-08004-000 |
US $1.44 |
||
| replacement | |||||
|
7
|
7
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
8
|
8
82021-M7900-000
Handle, door rh
|
82021-M7900-000 |
— | ||
|
9
|
9
82011-M7900-000
Handle, door lh
|
82011-M7900-000 |
— | ||
|
10
|
10
82891-M8010-000
Snap
|
82891-M8010-000 |
— | ||
|
11
|
11
08316-M2606-600
Nut
|
08316-M2606-600 |
— | ||
|
12
|
12
83110-M8010-000
Handle, inside rh
|
83110-M8010-000 |
— | ||
|
13
|
13
83130-M8010-000
Handle, inside lh
|
83130-M8010-000 |
— | ||
|
14
|
14
02142-M0610-800
Screw
|
02142-M0610-800 |
— | ||
|
15
|
15
83241-M8010-000
Rod, safety lock rh
|
83241-M8010-000 |
— | ||
|
16
|
16
83242-M8010-000
Rod, safety lock lh
|
83242-M8010-000 |
— | ||
|
17
|
17
78242-M6100-000
Cap, lock knob
|
78242-M6100-000 |
— | ||
|
18
|
18
78241-M6000-200
Knob, inside lock
|
78241-M6000-200 |
— | ||
|
19
|
19
78471-M7900-000
Bezel, handle rh
|
78471-M7900-000 |
— | ||
|
20
|
20
78481-M7900-000
Bezel, handle rh
|
78481-M7900-000 |
— | ||
|
21
|
21
03141-M0408-300
Screw
|
03141-M0408-300 |
— | ||
|
22
|
22
37011-M8310-000
Lock set
|
37011-M8310-000 |
— | ||
|
23
|
23
77402-M7985-000
Cylinder assy, door rh
|
77402-M7985-000 |
— | ||
|
24
|
24
77402-M7986-000
Cylinder assy, door lh
LHD |
77402-M7986-000 |
— | ||
|
25
|
25
77461-M7800-000
Clip, key cylinder
RHD |
77461-M7800-000 |
— | ||
|
26
|
26
77591-M7500-000
Pad, door inside handle
|
77591-M7500-000 |
— | ||
