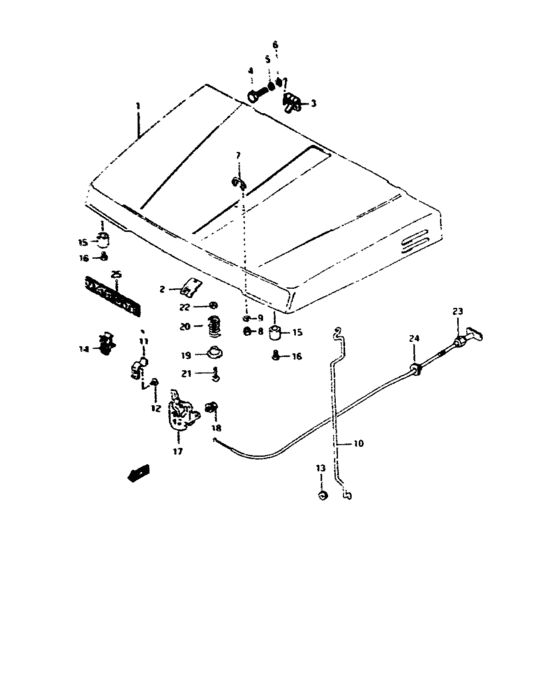

Front hood (FRONT HOOD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-80100-000 PANEL ASSY,FRONT HOOD |
58300-80100-000 |
US $1,452.80 |
||
|
2
|
2
58370-80000-000 HOOK,HOOD LOCK |
58370-80000-000 |
US $12.70 |
||
|
3
|
3
58410-80010-000 HINGE,HOOD |
58410-80010-000 |
from US $15.50 |
||
|
4
|
4
01104-M0616-600
Bolt
|
01104-M0616-600 |
— | ||
|
5
|
5
09160-M0601-900
Washer
|
09160-M0601-900 |
— | ||
|
6
|
6
08321-M3106-300
Lock washer
|
08321-M3106-300 |
— | ||
|
7
|
7
68380-M8000-000
Hook, window lock
FOR SOFT TOP |
68380-M8000-000 |
— | ||
|
8
|
8
09159-M0603-600
Nut
FOR SOFT TOP |
09159-M0603-600 |
— | ||
|
9
|
9
09161-M0600-900
Washer
FOR SOFT TOP |
09161-M0600-900 |
— | ||
|
10
|
10
72442-M8001-000
Stay, front hood
|
72442-M8001-000 |
— | ||
|
11
|
11
72443-M8001-000
Bracket, hood stay
|
72443-M8001-000 |
— | ||
|
12
|
12
02142-M0610-600
Screw
|
02142-M0610-600 |
— | ||
|
13
|
13
09308-M0800-100
Grommet
|
09308-M0800-100 |
— | ||
|
14
|
14
09403-M0930-900
Clamp
|
09403-M0930-900 |
— | ||
|
16
|
16
02112-M0618-600
Screw
|
02112-M0618-600 |
— | ||
|
17
|
17
82110-M8000-400
Latch, hood
RHD |
82110-M8000-400 |
— | ||
|
17
|
17
82110-80014-000
''
LHD |
82110-80014-000 |
— | ||
| replacement | |||||
|
17
|
17
82110-8001V-000 LATCH,HOODLHD |
82110-8001V-000 |
US $152.35 |
||
|
18
|
18
09138-06002-000 SCREW(6X10) |
09138-06002-000 |
US $15.50 |
||
|
19
|
19
82171-M8010-000
Support, open spring
|
82171-M8010-000 |
— | ||
|
20
|
20
09440-27007-000 SPRING |
09440-27007-000 |
US $3.04 |
||
|
21
|
21
02112-M0640-500
Screw
|
02112-M0640-500 |
— | ||
|
22
|
22
08310-M1106-600
Nut
|
08310-M1106-600 |
— | ||
|
23
|
23
82160-M8001-100
Cable, hood lock
|
82160-M8001-100 |
— | ||
|
24
|
24
82191-50E00-000 GROMMET,LATCH RELEASE CABLE |
82191-50E00-000 |
US $3.52 |
||
|
25
|
25
86711-M7970-000
Emblem, maruti
|
86711-M7970-000 |
— | ||
