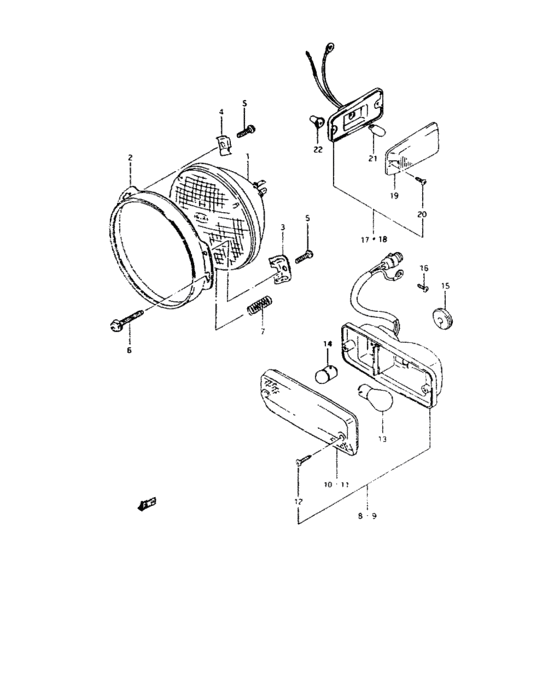

Front lamp (FRONT LAMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-M7902-100
Headlamp assy
RHD |
35100-M7902-100 |
— | ||
|
1
|
1
35100-M7261-000
Headlamp assy
LHD |
35100-M7261-000 |
— | ||
|
2
|
2
35131-M8003-000
Rim
|
35131-M8003-000 |
— | ||
|
3
|
3
35132-M8003-000
Plate, no.1
|
35132-M8003-000 |
— | ||
|
4
|
4
35136-M8003-000
Plate, no.2
|
35136-M8003-000 |
— | ||
|
5
|
5
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
6
|
6
35151-M8003-000
Screw
|
35151-M8003-000 |
— | ||
|
7
|
7
35154-M8003-000
Spring
|
35154-M8003-000 |
— | ||
|
8
|
8
35601-M8011-000
Lamp assy, combination rh
|
35601-M8011-000 |
— | ||
|
9
|
9
35602-M8011-000
Lamp assy, combination lh
|
35602-M8011-000 |
— | ||
|
10
|
10
35612-M8011-000
Lens rh
|
35612-M8011-000 |
— | ||
|
11
|
11
35632-M8011-000
Lens lh
|
35632-M8011-000 |
— | ||
|
12
|
12
03112-04309-000 SCREW |
03112-04309-000 |
from US $0.76 |
||
|
13
|
13
09471-12056-000
Bulb (12v, 21w)
|
09471-12056-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12045-000 BULB(12V21W) |
09471-12045-000 |
from US $4.41 |
||
|
14
|
14
09471-12058-000
Bulb 12v5w
|
09471-12058-000 |
— | ||
| replacement | |||||
|
14
|
14
09471-12140-000 BULB(12V5W) |
09471-12140-000 |
from US $2.03 |
||
|
15
|
15
09308-M0800-800
Grommet
|
09308-M0800-800 |
— | ||
|
16
|
16
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
16
|
16
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
17
|
17
36410-M8001-000
Lamp, side turn signal rh
|
36410-M8001-000 |
— | ||
|
18
|
18
36430-M8001-000
Lamp, side turn signal lh
|
36430-M8001-000 |
— | ||
|
19
|
19
36412-M8000-000
Lens
|
36412-M8000-000 |
— | ||
|
20
|
20
03112-04169-000
スクリュ
|
03112-04169-000 |
— | ||
| replacement | |||||
|
20
|
20
03111-0416A-000 SCREW |
03111-0416A-000 |
US $0.80 |
||
|
21
|
21
09471-12081-000
Bulb (12v,5w)
|
09471-12081-000 |
— | ||
| replacement | |||||
|
21
|
21
09471-12216-000 BULB(12V5W)Bulb (12v5w) |
09471-12216-000 |
from US $4.32 |
||
|
22
|
22
09159-M0400-200
Nut
|
09159-M0400-200 |
— | ||
