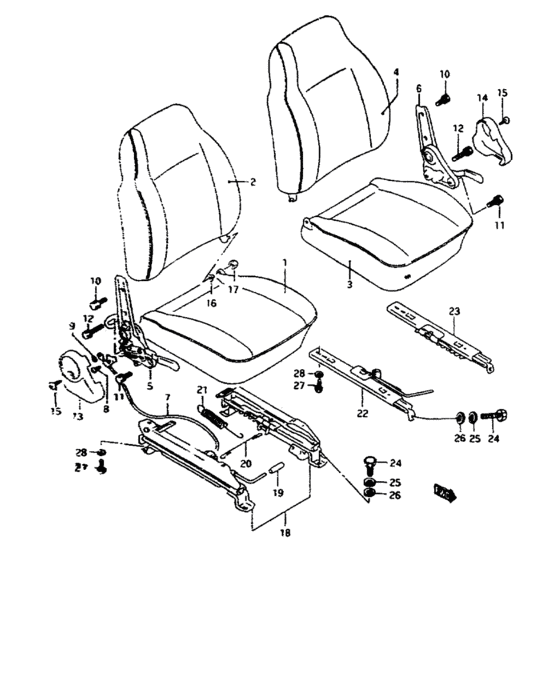

Front seat (RHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-M8061-000
Cushion assy, front rh
|
85101-M8061-000 |
— | ||
|
2
|
2
85301-M8305-000
Back assy, front rh
|
85301-M8305-000 |
— | ||
|
3
|
3
85102-M8061-000
Cushion assy, front lh
|
85102-M8061-000 |
— | ||
|
4
|
4
85302-M8303-100
Back assy, front lh
|
85302-M8303-100 |
— | ||
|
5
|
5
85210-M8029-000
Reclining assy, rh
|
85210-M8029-000 |
— | ||
|
5
|
5
85210-80290-000
Reclining assy, rh
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
85210-80290-000 |
— | ||
| replacement | |||||
|
5
|
5
85210-80290-5PK RECLINING,FR SEAT,RGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
85210-80290-5PK |
US $144.62 |
||
|
6
|
6
85710-M8300-100
Reclining assy, lh
|
85710-M8300-100 |
— | ||
|
6
|
6
85710-83001-000
Reclining assy, lh
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
85710-83001-000 |
— | ||
| replacement | |||||
|
6
|
6
85710-83001-5PK
RECLINING,FR SEAT,L
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
85710-83001-5PK |
— | ||
|
7
|
7
87570-83000-000 WIRE ASSY,WALKIN |
87570-83000-000 |
US $14.46 |
||
|
8
|
8
03111-05103-000
スクリュ
|
03111-05103-000 |
— | ||
| replacement | |||||
|
8
|
8
03111-0510A-000 SCREW |
03111-0510A-000 |
US $7.70 |
||
|
9
|
9
09148-04032-000 NUT |
09148-04032-000 |
from US $0.77 |
||
|
10
|
10
01104-M0816-600
Bolt
|
01104-M0816-600 |
— | ||
|
11
|
11
01137-10166-000
ボルト
|
01137-10166-000 |
— | ||
| replacement | |||||
|
11
|
11
01570-1016A-000 Bolt |
01570-1016A-000 |
US $17.30 |
||
|
12
|
12
01107-M1040-600
Bolt, no.1
|
01107-M1040-600 |
— | ||
|
13
|
13
85221-M8200-100
Cover, reclining rh
|
85221-M8200-100 |
— | ||
|
14
|
14
85721-M8200-100
Cover, reclining lh
|
85721-M8200-100 |
— | ||
|
15
|
15
03241-M0512-300
Screw
|
03241-M0512-300 |
— | ||
|
16
|
16
85291-M8029-000
Bush
|
85291-M8029-000 |
— | ||
|
17
|
17
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
17
|
17
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
17
|
17
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
18
|
18
86901-83002-000
WALKIN ASSY,FR SEAT,L
|
86901-83002-000 |
— | ||
|
19
|
19
86736-83000-000 KNOB,LOCK HANDLE |
86736-83000-000 |
US $1.60 |
||
|
20
|
20
86731-83000-000 ROD,WALKIN TENSION |
86731-83000-000 |
US $8.64 |
||
|
21
|
21
86732-83000-000 SPRING,WALKIN |
86732-83000-000 |
US $7.95 |
||
|
22
|
22
86601-M8014-300
Rail assy, inside
|
86601-M8014-300 |
— | ||
|
22
|
22
86601-80134-000 RAIL ASSY,FR SEAT SLIDER,RGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
86601-80134-000 |
US $65.87 |
||
|
23
|
23
86602-M8014-300
Rail assy, outside
|
86602-M8014-300 |
— | ||
|
23
|
23
86602-80133-000 RAIL ASSY,FR SEAT SLIDE,LGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
86602-80133-000 |
US $50.78 |
||
|
24
|
24
01104-M0816-600
Bolt
|
01104-M0816-600 |
— | ||
|
25
|
25
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
26
|
26
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
|
27
|
27
01104-M0816-600
Bolt
|
01104-M0816-600 |
— | ||
|
28
|
28
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
