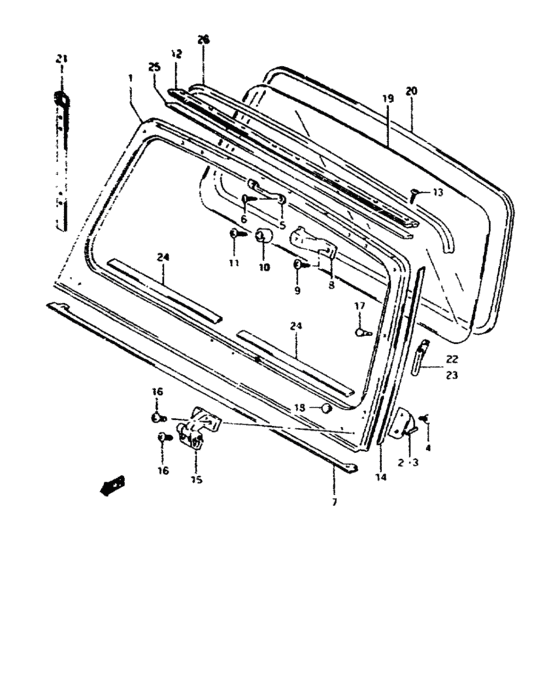

Front window (FRONT WINDOW) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59101-80004-000
パネルアッシ,フロントウィンド
FOR N/TREAD |
59101-80004-000 |
— | ||
| replacement | |||||
|
1
|
1
59101-80005-000
PANEL ASSY,FRONT WINDOW
FOR N/TREAD |
59101-80005-000 |
— | ||
|
1
|
1
59101-70A00-000
パネルアッシ,フロントウィンド
FOR W/TREAD |
59101-70A00-000 |
— | ||
| replacement | |||||
|
1
|
1
59101-70A01-000 PANEL ASSY,FRONT WINDOWFOR W/TREAD |
59101-70A01-000 |
US $611.20 |
||
|
1
|
1
59101-80024-000
Pare-brise mod j
LHD |
59101-80024-000 |
— | ||
| replacement | |||||
|
1
|
1
59101-83012-000
PANEL ASSY,FRONT WINDOW
LHD |
59101-83012-000 |
— | ||
|
2
|
2
72411-M8000-000
Stay, window lock rh
|
72411-M8000-000 |
— | ||
|
3
|
3
72412-M8000-000
Stay, window lock lh
|
72412-M8000-000 |
— | ||
|
4
|
4
02142-M0616-600
Screw
|
02142-M0616-600 |
— | ||
|
5
|
5
72415-M8000-000
Hook, window stopper
FOR SOFT TOP |
72415-M8000-000 |
— | ||
|
6
|
6
02112-M0510-300
Screw
FOR SOFT TOP |
02112-M0510-300 |
— | ||
|
7
|
7
72413-M8300-000
Weatherstrip, window under
|
72413-M8300-000 |
— | ||
|
8
|
8
72414-80000-000 BRACKET,FR WINDOW CUSHION |
72414-80000-000 |
US $2.72 |
||
|
9
|
9
03211-M0516-300
Screw
|
03211-M0516-300 |
— | ||
|
10
|
10
09320-M0600-600
Cushion
|
09320-M0600-600 |
— | ||
|
11
|
11
03211-M0516-300
Screw
|
03211-M0516-300 |
— | ||
|
12
|
12
72418-80003-000 GARNISH,FR WINDOW,UPR |
72418-80003-000 |
US $26.60 |
||
|
13
|
13
03111-05203-000
New Genuine Part
|
03111-05203-000 |
— | ||
| replacement | |||||
|
13
|
13
03111-0520A-000 SCREW |
03111-0520A-000 |
US $0.80 |
||
|
14
|
14
84644-80001-000 SEAL,WINDOW SIDE |
84644-80001-000 |
US $2.24 |
||
|
15
|
15
72420-80010-000 HINGE,FR WINDOW |
72420-80010-000 |
US $31.20 |
||
|
16
|
16
09125-06022-000 SCREW(6X16)Screw (6x16) |
09125-06022-000 |
US $1.76 |
||
|
17
|
17
09250-02001-000
CAP(OD:6)
|
09250-02001-000 |
— | ||
| replacement | |||||
|
17
|
17
09250-02002-000 Cap(Od:6) |
09250-02002-000 |
US $1.92 |
||
|
18
|
18
09250-M1400-300
Cap, antenna hole
|
09250-M1400-300 |
— | ||
|
19
|
19
84511-M8011-100
Glass, windshield
CLEAR |
84511-M8011-100 |
— | ||
|
19
|
19
84511-M8018-100
Glass, windshield
TINTED |
84511-M8018-100 |
— | ||
|
20
|
20
84611-M8010-000
Weatherstrip, windshield
|
84611-M8010-000 |
— | ||
|
21
|
21
72450-80002-000 BELT,FR WINDOWFOR SOFT TOP |
72450-80002-000 |
from US $7.70 |
||
|
22
|
22
84648-80011-000 GARNISH,FR WINDOW SIDE,R |
84648-80011-000 |
US $2.24 |
||
|
23
|
23
84649-80011-000 GARNISH,FR WINDOW SIDE,L |
84649-80011-000 |
US $2.24 |
||
|
24
|
24
72416-M8300-000
Sheet, window rear lower
|
72416-M8300-000 |
— | ||
|
25
|
25
72419-83010-000 PAD,FR WINDOW GARNISH |
72419-83010-000 |
US $12.01 |
||
|
26
|
26
72462-M8300-000
Weatherstrip, frt window upper
|
72462-M8300-000 |
— | ||
