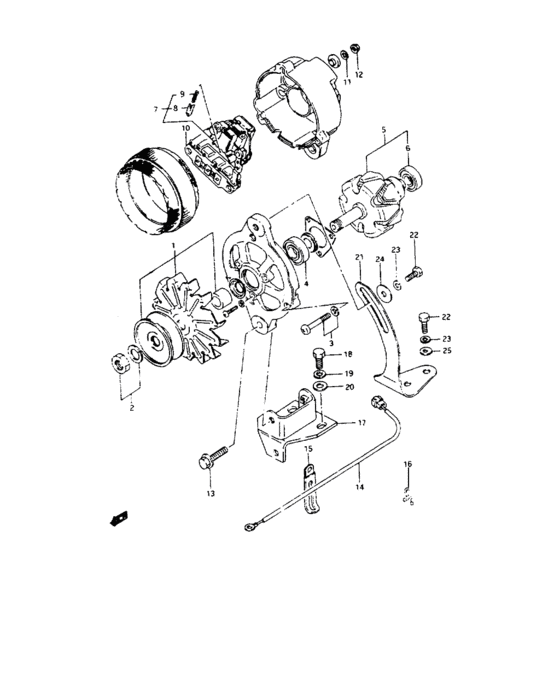

Generator (GENERATOR) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31771-79030-000
プーリアッシ
|
31771-79030-000 |
— | ||
| replacement | |||||
|
1
|
1
31771-80030-000 PULLEY ASSY |
31771-80030-000 |
US $41.58 |
||
|
2
|
2
31775-70030-000
ナットアッシ
|
31775-70030-000 |
— | ||
| replacements | |||||
|
2
|
2
31775-50F20-000 NUT |
31775-50F20-000 |
US $2.72 |
||
|
2
|
2
31775-60C10-000 NUT,PULLEY |
31775-60C10-000 |
US $4.31 |
||
|
3
|
3
31631-72131-000
Screw set
|
31631-72131-000 |
— | ||
|
4
|
4
31582-82630-000
BEARING
|
31582-82630-000 |
— | ||
| replacement | |||||
|
4
|
4
31582-82631-000 BEARING |
31582-82631-000 |
US $25.58 |
||
|
5
|
5
31402-78440-000
Rotor assy
|
31402-78440-000 |
— | ||
|
6
|
6
31612-80011-000
BEARING,REAR
|
31612-80011-000 |
— | ||
|
7
|
7
32500-80010-000 REGULATOR ASSY |
32500-80010-000 |
US $253.92 |
||
|
8
|
8
31631-78432-000 BRUSH |
31631-78432-000 |
US $9.57 |
||
|
9
|
9
31653-70030-000
スプリング,ブラシ
|
31653-70030-000 |
— | ||
|
10
|
10
31622-80010-000
Rectifier Assy
|
31622-80010-000 |
— | ||
|
11
|
11
08321-M2106-800
Lock washer
|
08321-M2106-800 |
— | ||
|
12
|
12
08310-M1106-600
Nut
|
08310-M1106-600 |
— | ||
|
13
|
13
01517-M0630-600
Bolt
|
01517-M0630-600 |
— | ||
|
14
|
14
36748-M7510-100
Wire, generator lead
|
36748-M7510-100 |
— | ||
|
15
|
15
09404-M0840-500
Clamp, lead wire
|
09404-M0840-500 |
— | ||
|
16
|
16
09408-M0001-200
Clamp
|
09408-M0001-200 |
— | ||
|
17
|
17
11550-M7910-000
Bracket, generator
|
11550-M7910-000 |
— | ||
|
18
|
18
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
19
|
19
08321-M2108-600
Lock washer
|
08321-M2108-600 |
— | ||
|
20
|
20
08322-M1108-600
Washer
|
08322-M1108-600 |
— | ||
|
21
|
21
11561-M8000-000
Arm, adjuster
|
11561-M8000-000 |
— | ||
|
22
|
22
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
23
|
23
08321-M2108-600
Lock washer
|
08321-M2108-600 |
— | ||
|
24
|
24
09160-M0803-000
Washer
|
09160-M0803-000 |
— | ||
|
25
|
25
09160-08050-000
Washer rr torqu
|
09160-08050-000 |
— | ||
| replacements | |||||
|
25
|
25
09160-08144-000 WASHER(8.5X16X2.6) |
09160-08144-000 |
from US $3.71 |
||
|
25
|
25
09160-08092-000 Washer |
09160-08092-000 |
from US $2.10 |
||
