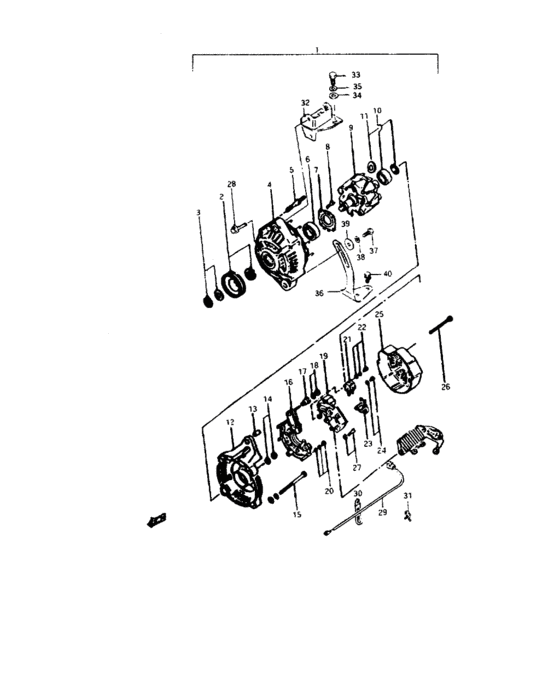

Generator (SRF ND) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-M8003-000
Generator assy
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
31400-M8003-000 |
— | ||
|
2
|
2
31771-M8003-000
Pulley
|
31771-M8003-000 |
— | ||
|
3
|
3
31775-M8003-000
Nut set
|
31775-M8003-000 |
— | ||
|
4
|
4
31580-M8003-000
Frame assy, drive end
|
31580-M8003-000 |
— | ||
|
5
|
5
31587-M8003-000
Bolt stud
|
31587-M8003-000 |
— | ||
|
6
|
6
31612-M8003-000
Bearing
|
31612-M8003-000 |
— | ||
|
7
|
7
31585-M8003-000
Plate, retainer
|
31585-M8003-000 |
— | ||
|
8
|
8
31586-M8003-000
Screw
|
31586-M8003-000 |
— | ||
|
9
|
9
31710-M8003-000
Rotor assy
|
31710-M8003-000 |
— | ||
|
10
|
10
31582-M8003-000
Bearing
|
31582-M8003-000 |
— | ||
|
11
|
11
31613-M8003-000
Cover set, bearing
|
31613-M8003-000 |
— | ||
|
12
|
12
31611-M8003-000
Frame, end rear
|
31611-M8003-000 |
— | ||
|
13
|
13
31616-M8003-000
Bush
|
31616-M8003-000 |
— | ||
|
14
|
14
31517-M8003-000
Nut
|
31517-M8003-000 |
— | ||
|
15
|
15
31651-M8003-000
Bolt
|
31651-M8003-000 |
— | ||
|
16
|
16
31622-M8003-000
Holder, sub-assy rectifier
|
31622-M8003-000 |
— | ||
|
17
|
17
31514-M8003-000
Insulation bush
|
31514-M8003-000 |
— | ||
|
18
|
18
31515-M8003-000
Nut w/washer
|
31515-M8003-000 |
— | ||
|
19
|
19
32500-M8003-000
Regulator assy
|
32500-M8003-000 |
— | ||
|
20
|
20
31518-M8003-000
Screw
|
31518-M8003-000 |
— | ||
|
21
|
21
31631-M8003-000
Brush holder sub-assy
|
31631-M8003-000 |
— | ||
|
22
|
22
31516-M8003-000
Screw w/washer
|
31516-M8003-000 |
— | ||
|
23
|
23
31519-M8003-000
Seal ring
|
31519-M8003-000 |
— | ||
|
24
|
24
31520-M8003-000
Screw w/washer
|
31520-M8003-000 |
— | ||
|
25
|
25
31614-M8003-000
Cover, end rear
|
31614-M8003-000 |
— | ||
|
26
|
26
31691-M8003-000
Bolt
|
31691-M8003-000 |
— | ||
|
27
|
27
31523-M8003-000
Screw w/washer
|
31523-M8003-000 |
— | ||
|
28
|
28
01517-M0830-600
Bolt
|
01517-M0830-600 |
— | ||
|
29
|
29
36748-M7510-000
Lead wire comp generator
|
36748-M7510-000 |
— | ||
|
30
|
30
09404-M0840-500
Clamp, lead wire
|
09404-M0840-500 |
— | ||
|
31
|
31
09408-M0001-200
Clamp
|
09408-M0001-200 |
— | ||
|
32
|
32
11550-M7910-000
Bracket, generator
|
11550-M7910-000 |
— | ||
|
33
|
33
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
34
|
34
08322-M1108-600
Washer
|
08322-M1108-600 |
— | ||
|
35
|
35
08321-M3108-600
Lock washer
|
08321-M3108-600 |
— | ||
|
36
|
36
11561-M8000-000
Arm, adjuster
|
11561-M8000-000 |
— | ||
|
37
|
37
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
38
|
38
08321-M3108-600
Lock washer
|
08321-M3108-600 |
— | ||
|
39
|
39
09160-M0803-000
Washer
|
09160-M0803-000 |
— | ||
|
40
|
40
09118-08105-000
Bolt, lower
|
09118-08105-000 |
— |
