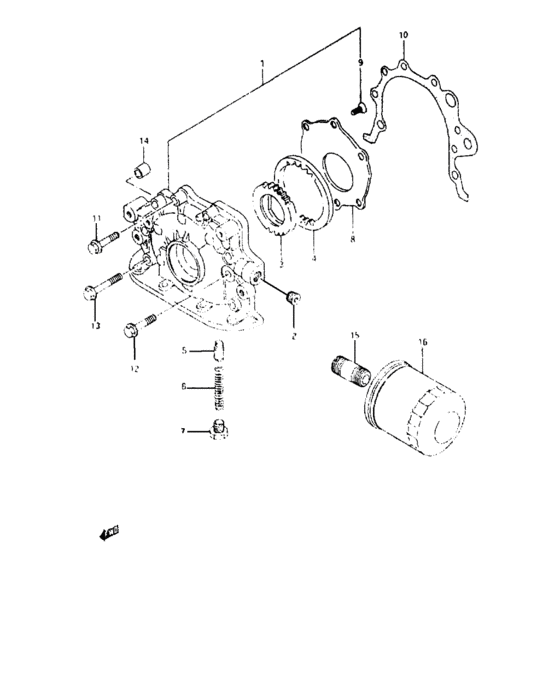

Oil pump (OIL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16100-M7303-300
Pump assy, oil
|
16100-M7303-300 |
— | ||
|
1
|
1
16100-M7314-300
Pump assy, oil
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
16100-M7314-300 |
— | ||
|
2
|
2
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
2
|
2
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
3
|
3
16131-73001-000
Gear, inner
|
16131-73001-000 |
— | ||
| replacement | |||||
|
3
|
3
16130-73000-000 ROTOR SET,OIL PUMP |
16130-73000-000 |
US $72.86 |
||
|
4
|
4
16132-73000-000
Gear, outer
|
16132-73000-000 |
— | ||
|
5
|
5
16151-M7300-000
Valve, relief
|
16151-M7300-000 |
— | ||
|
6
|
6
16152-M7300-100
Spring, relief valve
|
16152-M7300-100 |
— | ||
|
7
|
7
16153-M7300-000
Retainer, spring
|
16153-M7300-000 |
— | ||
|
8
|
8
16161-M7300-200
Plate, gear
|
16161-M7300-200 |
— | ||
|
9
|
9
02122-M0612-800
Screw
|
02122-M0612-800 |
— | ||
|
10
|
10
16119-M7301-100
Gasket, oil pump case
|
16119-M7301-100 |
— | ||
|
11
|
11
01517-M0630-600
Bolt
|
01517-M0630-600 |
— | ||
|
12
|
12
01517-M0635-600
Bolt
|
01517-M0635-600 |
— | ||
|
13
|
13
01517-M0640-600
Bolt
|
01517-M0640-600 |
— | ||
|
14
|
14
04211-M0910-900
Knock pin
|
04211-M0910-900 |
— | ||
|
15
|
15
11241-M7300-300
Stand, oil filter
|
11241-M7300-300 |
— | ||
|
16
|
16
16510-M7301-000
Filter assy, oil
|
16510-M7301-000 |
— | ||
