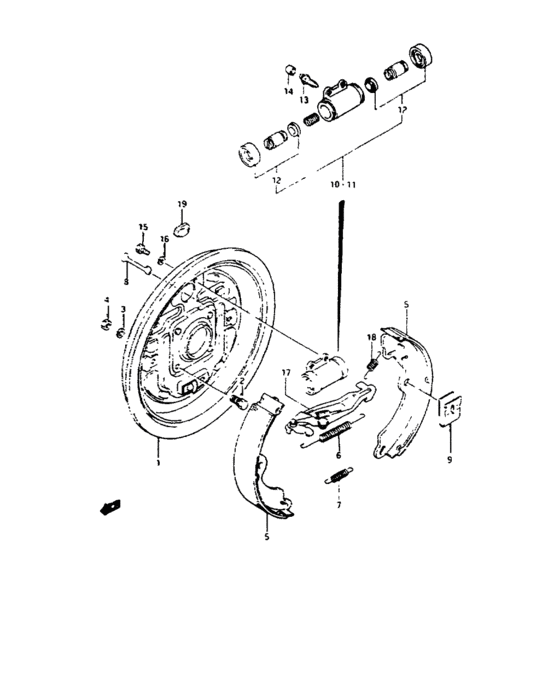

Rear brake (NARROW TREAD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-83041-000 PLATE,BACKING |
53110-83041-000 |
US $92 |
||
|
2
|
2
53114-83040-000
ボルト,バッキングプレート
|
53114-83040-000 |
— | ||
| replacement | |||||
|
2
|
2
09100-08013-000 BOLT(8X19.5) |
09100-08013-000 |
US $1.22 |
||
|
3
|
3
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
4
|
4
08310-M1108-600
Nut
|
08310-M1108-600 |
— | ||
|
5
|
5
53210-M8304-100
Shoe brake
|
53210-M8304-100 |
— | ||
|
6
|
6
53331-M8005-000
Spring, shoe return no.1
|
53331-M8005-000 |
— | ||
|
7
|
7
53231-M8304-100
Spring, shoe return b
|
53231-M8304-100 |
— | ||
|
8
|
8
52241-M7304-000
Pin, shoe hold down
|
52241-M7304-000 |
— | ||
|
9
|
9
52243-M7924-100
Spring, hold down
|
52243-M7924-100 |
— | ||
|
10
|
10
53401-M8304-000
Cylinder assy, rh
|
53401-M8304-000 |
— | ||
|
11
|
11
53402-M8304-000
Cylinder assy, lh
|
53402-M8304-000 |
— | ||
|
12
|
12
52400-M8082-000
Piston cup & boot set
|
52400-M8082-000 |
— | ||
|
13
|
13
52473-M6002-000
Plug, bleeder
|
52473-M6002-000 |
— | ||
|
14
|
14
52474-58040-000
Cap
|
52474-58040-000 |
— | ||
| replacements | |||||
|
14
|
14
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
14
|
14
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
15
|
15
01107-M0612-600
Bolt
|
01107-M0612-600 |
— | ||
|
16
|
16
08321-M3106-600
Washer
|
08321-M3106-600 |
— | ||
|
17
|
17
53810-M8006-000
Rod
|
53810-M8006-000 |
— | ||
|
18
|
18
53821-M8005-000
Spring, rod
|
53821-M8005-000 |
— | ||
|
19
|
19
53121-80050-000 PLUG,ADJUSTER |
53121-80050-000 |
US $2.13 |
||
