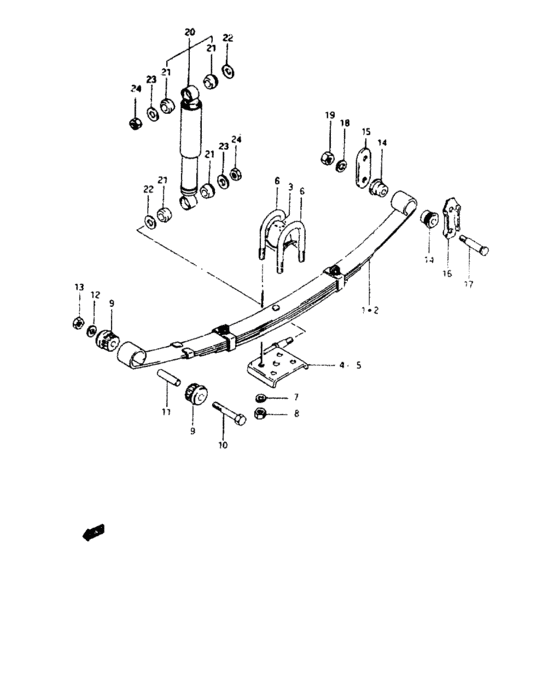

Rear suspension (REAR SUSPENSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41310-M8033-000
Spring assy, rear
RHD |
41310-M8033-000 |
— | ||
|
1
|
1
41310-M8034-000
Spring assy, rear lh
RHD |
41310-M8034-000 |
— | ||
|
2
|
2
41310-M8033-000
Spring assy, rear
LHD |
41310-M8033-000 |
— | ||
|
3
|
3
42150-M6104-100
Bumper, spring
|
42150-M6104-100 |
— | ||
|
4
|
4
41430-M8000-100
Seat, spring rh
FOR N/TREAD |
41430-M8000-100 |
— | ||
|
4
|
4
41430-M8300-000
Seat, spring rh
FOR W/TREAD |
41430-M8300-000 |
— | ||
|
5
|
5
41440-M8000-100
Seat, spring lh
FOR N/TREAD |
41440-M8000-100 |
— | ||
|
5
|
5
41440-M8300-000
Seat, spring lh
FOR W/TREAD |
41440-M8300-000 |
— | ||
|
6
|
6
41411-M8020-100
U bolt
FOR N/TREAD |
41411-M8020-100 |
— | ||
|
6
|
6
41411-M8300-000
U bolt
FOR W/TREAD |
41411-M8300-000 |
— | ||
|
7
|
7
08321-M3112-300
Lock washer
|
08321-M3112-300 |
— | ||
|
8
|
8
08310-M1112-600
Nut
|
08310-M1112-600 |
— | ||
|
9
|
9
41331-M6202-000
Bush, spring
|
41331-M6202-000 |
— | ||
|
10
|
10
09100-M1202-500
Bolt
|
09100-M1202-500 |
— | ||
|
11
|
11
09180-M1203-500
Spacer
|
09180-M1203-500 |
— | ||
|
12
|
12
08321-M3112-300
Lock washer
|
08321-M3112-300 |
— | ||
|
13
|
13
08310-M1112-600
Nut
|
08310-M1112-600 |
— | ||
|
14
|
14
09305-M1300-200
Bush, shackle
|
09305-M1300-200 |
— | ||
|
15
|
15
41461-M7900-000
Plate, shackle inner
|
41461-M7900-000 |
— | ||
|
16
|
16
41462-M7900-000
Plate, shackle outer
|
41462-M7900-000 |
— | ||
|
17
|
17
41463-M8200-000
Pin, shackle
|
41463-M8200-000 |
— | ||
|
18
|
18
08321-M3110-300
Lock washer
|
08321-M3110-300 |
— | ||
|
19
|
19
08310-M1110-600
Nut
|
08310-M1110-600 |
— | ||
|
20
|
20
41700-80001-000 ABSORBER ASSY,RR SHOCK |
41700-80001-000 |
US $87.58 |
||
|
21
|
21
41781-M8000-000
Bush
|
41781-M8000-000 |
— | ||
|
22
|
22
08322-M2116-600
Washer, no.1
|
08322-M2116-600 |
— | ||
|
23
|
23
09160-M1207-300
Washer, no.2
|
09160-M1207-300 |
— | ||
|
24
|
24
08310-M1112-600
Nut
|
08310-M1112-600 |
— |
