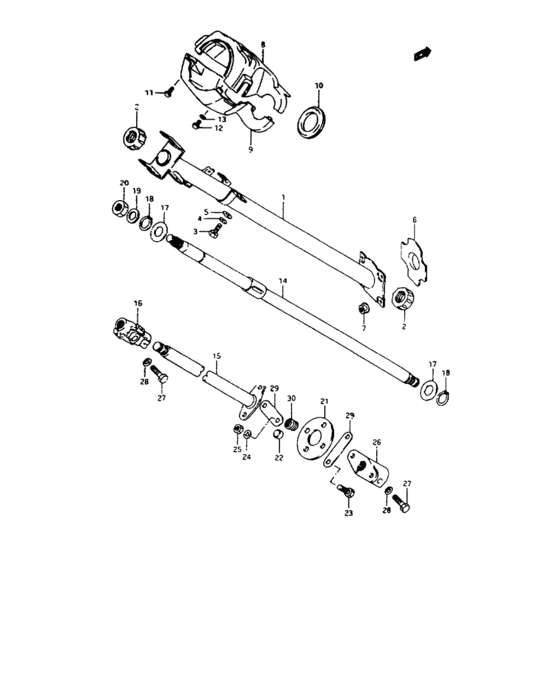

Steering shaft (STEERING SHAFT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48310-M8011-100
Column, steering
|
48310-M8011-100 |
— | ||
|
2
|
2
48381-M5104-000
Bush, column
|
48381-M5104-000 |
— | ||
|
3
|
3
01104-M0820-600
Bolt
|
01104-M0820-600 |
— | ||
|
4
|
4
08321-M2108-300
Lock washer
|
08321-M2108-300 |
— | ||
|
5
|
5
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
|
6
|
6
48491-M8000-000
Rubber, seal
|
48491-M8000-000 |
— | ||
|
7
|
7
08316-M1608-600
Nut
|
08316-M1608-600 |
— | ||
|
8
|
8
48411-M8025-100
Cover, steering upper
RHD |
48411-M8025-100 |
— | ||
|
8
|
8
48411-80351-5ES
Cover, steering upper
LHD |
48411-80351-5ES |
— | ||
| replacement | |||||
|
8
|
8
48400-80350-5ES
COVER SET,STRG COLUMN
LHD |
48400-80350-5ES |
— | ||
|
9
|
9
48421-M8020-000
Cover, steering lower
RHD |
48421-M8020-000 |
— | ||
|
9
|
9
48421-80300-5ES
Cover, steering lower
LHD |
48421-80300-5ES |
— | ||
| replacement | |||||
|
9
|
9
48400-80350-5ES
COVER SET,STRG COLUMN
LHD |
48400-80350-5ES |
— | ||
|
10
|
10
48419-M7500-000
Seal, cover
|
48419-M7500-000 |
— | ||
|
11
|
11
03211-M0516-300
Screw
|
03211-M0516-300 |
— | ||
|
12
|
12
02112-05123-000
Screw 5x12
|
02112-05123-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0512A-000 SCREW |
02112-0512A-000 |
from US $0.80 |
||
|
13
|
13
09160-05034-000
Washer,5.3x10x1
|
09160-05034-000 |
— | ||
| replacement | |||||
|
13
|
13
09160-05044-000 WASHER(5.5X10X1) |
09160-05044-000 |
from US $0.96 |
||
|
14
|
14
48210-M8012-000
Shaft, steering upper
|
48210-M8012-000 |
— | ||
|
15
|
15
48220-M8010-000
Shaft, steering lower
|
48220-M8010-000 |
— | ||
|
16
|
16
48230-80100-000 JOINT,STEERING |
48230-80100-000 |
US $161.12 |
||
|
17
|
17
09160-17021-000
Washer
|
09160-17021-000 |
— | ||
| replacement | |||||
|
17
|
17
09160-17501-XC0 WASHER(17.5X34X2) |
09160-17501-XC0 |
from US $1.92 |
||
|
18
|
18
08331-31176-000
Circlip
|
08331-31176-000 |
— | ||
| replacement | |||||
|
18
|
18
08331-31179-000 CIRCLIP |
08331-31179-000 |
from US $0.96 |
||
|
19
|
19
08321-M3112-300
Lock washer
|
08321-M3112-300 |
— | ||
|
20
|
20
09140-M1202-200
Nut
|
09140-M1202-200 |
— | ||
|
21
|
21
48251-52000-000 JOINT,RUBBER |
48251-52000-000 |
from US $4.48 |
||
|
22
|
22
09180-08007-000 SPACER(8.1X11X9) |
09180-08007-000 |
from US $1.12 |
||
|
23
|
23
01107-M0825-600
Bolt
|
01107-M0825-600 |
— | ||
|
24
|
24
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
24
|
24
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
24
|
24
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
25
|
25
08310-M1108-600
Nut
|
08310-M1108-600 |
— | ||
|
26
|
26
48270-80010-000
Frange,steering joint
|
48270-80010-000 |
— | ||
| replacement | |||||
|
26
|
26
48270-80011-000 FLANGE,STRG RUBBER JOINT |
48270-80011-000 |
US $20 |
||
|
27
|
27
09111-M0806-600
Bolt
|
09111-M0806-600 |
— | ||
|
28
|
28
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
29
|
29
48262-M5800-100
Plate, rubber joint
|
48262-M5800-100 |
— | ||
|
30
|
30
48281-M8500-000
Spring, horn earth
|
48281-M8500-000 |
— | ||
