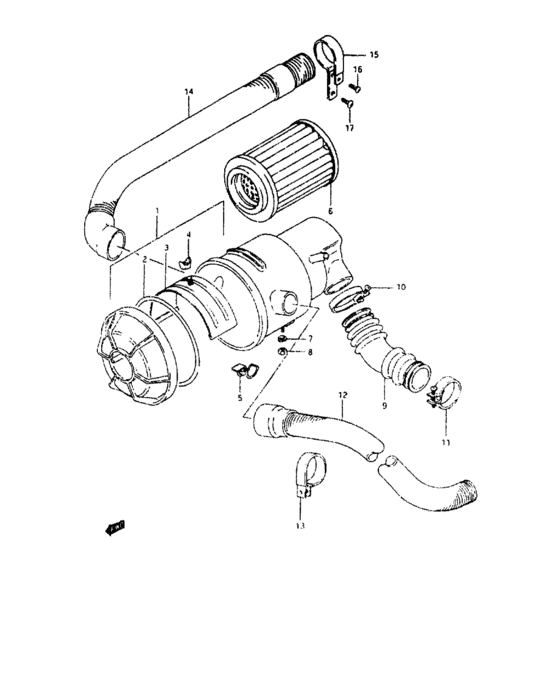

Air cleaner (AIR CLEANER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-M8002-000
Case assy, air cleaner
|
13701-M8002-000 |
— | ||
|
2
|
2
13773-M8000-000
Gasket
|
13773-M8000-000 |
— | ||
|
3
|
3
13740-M8000-100
Valve, air
|
13740-M8000-100 |
— | ||
|
4
|
4
08317-12066-000
Nut
|
08317-12066-000 |
— | ||
| replacement | |||||
|
4
|
4
08317-1206A-000 NUT |
08317-1206A-000 |
from US $1.06 |
||
|
5
|
5
13750-M7950-000
Clamp
|
13750-M7950-000 |
— | ||
|
6
|
6
13780-M7925-000
Filter, air
|
13780-M7925-000 |
— | ||
|
7
|
7
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
8
|
8
08310-M1108-600
Nut
|
08310-M1108-600 |
— | ||
|
9
|
9
13881-M8002-000
Hose, cleaner to carburetor
|
13881-M8002-000 |
— | ||
|
10
|
10
09402-M6830-900
Clamp
|
09402-M6830-900 |
— | ||
|
11
|
11
09402-M5830-900
Clamp
|
09402-M5830-900 |
— | ||
|
12
|
12
13840-79141-000
HOSE,WARM AIR
|
13840-79141-000 |
— | ||
|
13
|
13
09403-M4840-100
Clamp
|
09403-M4840-100 |
— | ||
|
14
|
14
13870-80030-000
Hose, cool air
|
13870-80030-000 |
— | ||
| replacement | |||||
|
14
|
14
13870-80X50-000 HOSE,COOL AIR |
13870-80X50-000 |
US $88.16 |
||
|
15
|
15
13896-79100-000
Clamp, hose & extension case
|
13896-79100-000 |
— | ||
| replacement | |||||
|
15
|
15
13896-72100-000 CLAMP |
13896-72100-000 |
US $2.24 |
||
|
16
|
16
03141-M0510-300
Screw
|
03141-M0510-300 |
— | ||
|
17
|
17
02142-M0612-600
Screw
|
02142-M0612-600 |
— | ||
