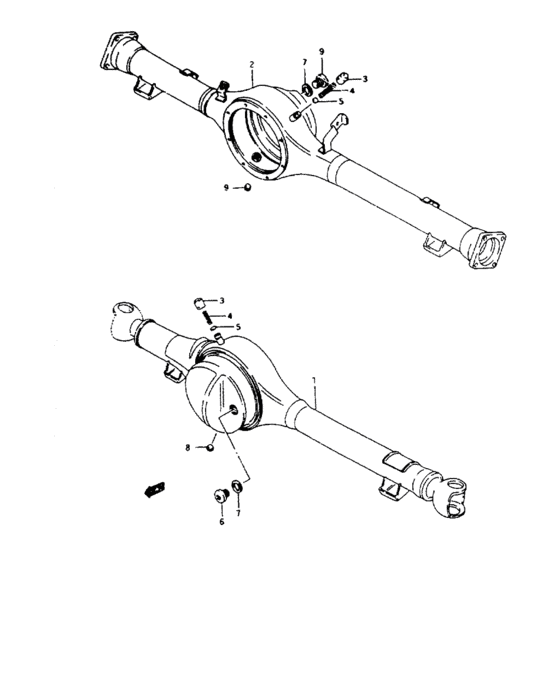

Axle housing (AXLE HOUSING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46480-M8070-200
Housing, front axle
FOR N/TREAD |
46480-M8070-200 |
— | ||
|
1
|
1
46480-M8330-400
Housing, front axle
FOR W/TREAD |
46480-M8330-400 |
— | ||
|
2
|
2
46510-M8010-200
Housing, rear axle
FOR N/TREAD |
46510-M8010-200 |
— | ||
|
2
|
2
46510-M70A0-000
Housing, rear axle
FOR W/TREAD |
46510-M70A0-000 |
— | ||
|
3
|
3
46541-52002-000 CAP,BREATHER |
46541-52002-000 |
US $1.60 |
||
|
4
|
4
09440-12004-000 SPRING |
09440-12004-000 |
US $1.28 |
||
|
5
|
5
46542-52000-000
VALVE,BREATHER
|
46542-52000-000 |
— | ||
| replacement | |||||
|
5
|
5
46542-52001-000 VALVE,RR AXLE HSG BREATHER |
46542-52001-000 |
US $1.60 |
||
|
6
|
6
09248-20003-000 PLUG |
09248-20003-000 |
from US $5.17 |
||
|
7
|
7
09168-M2000-200
Gasket
|
09168-M2000-200 |
— | ||
|
8
|
8
09246-16009-000
プラグ
|
09246-16009-000 |
— | ||
| replacements | |||||
|
8
|
8
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
|
8
|
8
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
US $4.86 |
||
|
9
|
9
09246-16010-000
PLUG
|
09246-16010-000 |
— | ||
