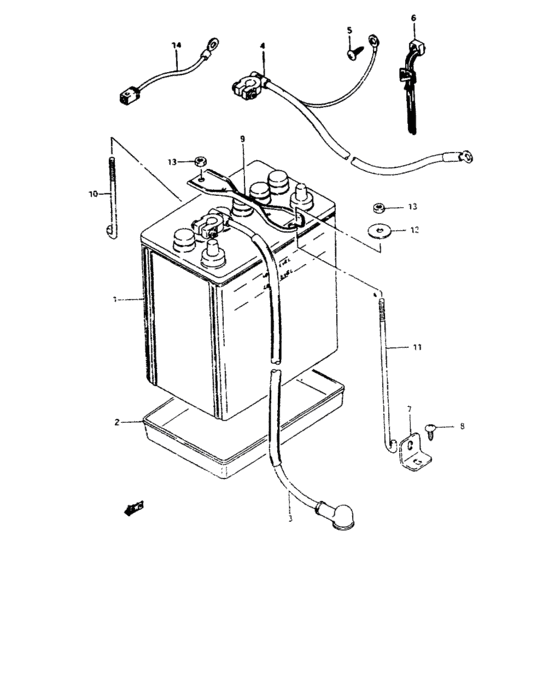

Battery (BATTERY) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-M7501-000
Battery
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
33610-M7501-000 |
— | ||
|
2
|
2
33661-M5102-000
Tray, battery
|
33661-M5102-000 |
— | ||
|
3
|
3
33810-M8001-100
Cable, starting motor
|
33810-M8001-100 |
— | ||
|
4
|
4
33850-M8001-000
Cable, battery ground
|
33850-M8001-000 |
— | ||
|
5
|
5
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
6
|
6
09407-M1040-200
Clamp, cable/fuse
|
09407-M1040-200 |
— | ||
|
8
|
8
02142-M0610-600
Screw
|
02142-M0610-600 |
— | ||
|
9
|
9
72511-M7800-100
Band, battery
|
72511-M7800-100 |
— | ||
|
10
|
10
72521-M8000-100
Bolt, battery no.1
|
72521-M8000-100 |
— | ||
|
11
|
11
63461-M7040-000
Bolt, battery no.2
|
63461-M7040-000 |
— | ||
|
12
|
12
09160-M0501-300
Washer
|
09160-M0501-300 |
— | ||
|
13
|
13
08316-M1605-600
Nut
|
08316-M1605-600 |
— | ||
|
14
|
14
36740-M8000-000
Fuse assy, main
|
36740-M8000-000 |
— |
