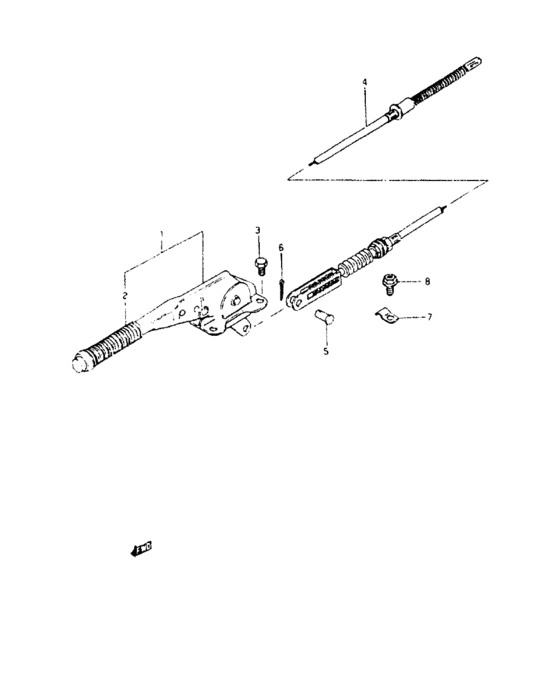

Center brake lever (CENTER BRAKE LEVER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-M8001-000
Lever assy, center brake
|
54100-M8001-000 |
— | ||
|
2
|
2
54112-M6401-000
Grip
|
54112-M6401-000 |
— | ||
|
3
|
3
01107-M0612-600
Bolt
|
01107-M0612-600 |
— | ||
|
4
|
4
54640-80011-000 CABLE,CENTER BRAKE |
54640-80011-000 |
US $74.40 |
||
|
5
|
5
09200-M0803-900
Pin, cable
|
09200-M0803-900 |
— | ||
|
6
|
6
04111-M2518-600
Cotter pin
|
04111-M2518-600 |
— | ||
|
7
|
7
09403-M0530-600
Clamp
|
09403-M0530-600 |
— | ||
|
8
|
8
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
