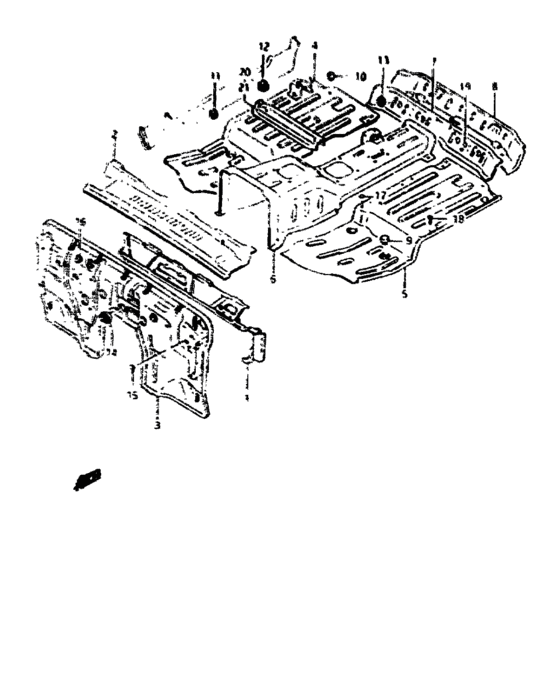

Center panel (CENTER PANEL) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-83001-000 PANEL ASSY,COWL UPPERRHD |
59600-83001-000 |
US $127.68 |
||
|
1
|
1
59600-83011-000
Panel assy,cowl upper rr
LHD |
59600-83011-000 |
— | ||
|
3
|
3
61100-80240-000
Panel, dash
LHD |
61100-80240-000 |
— | ||
|
4
|
4
61400-M8102-000
Panel, floor rh
RHD |
61400-M8102-000 |
— | ||
|
5
|
5
61600-M8100-100
Panel, floor lh
RHD |
61600-M8100-100 |
— | ||
|
5
|
5
61600-80260-000
Panel, tunnel
LHD |
61600-80260-000 |
— | ||
|
6
|
6
61600-83001-000 PANEL,FLOOR TUNNELFOR N/TREAD |
61600-83001-000 |
US $230 |
||
|
6
|
6
61600-M70A3-000
Panel, tunnel
FOR W/TREAD |
61600-M70A3-000 |
— | ||
|
6
|
6
61600-70A11-000
Panel,floor tunnel
LHD |
61600-70A11-000 |
— | ||
|
7
|
7
61810-83030-000 MEMBER,CTR FL NO.1 |
61810-83030-000 |
US $64 |
||
|
8
|
8
61820-M8301-000
Member, floor no.2
|
61820-M8301-000 |
— | ||
|
9
|
9
09250-M4000-200
Cap, front
|
09250-M4000-200 |
— | ||
|
10
|
10
09250-M3000-200
Cap, rear
|
09250-M3000-200 |
— | ||
|
11
|
11
09250-M2001-500
Cap, heater control hole
|
09250-M2001-500 |
— | ||
|
12
|
12
09250-M2500-700
Plug
|
09250-M2500-700 |
— | ||
|
13
|
13
09250-M2001-500
Cap, heater control hole
|
09250-M2001-500 |
— | ||
|
14
|
14
74812-M8303-100
Grommet, heater hose
|
74812-M8303-100 |
— | ||
|
15
|
15
67627-M7000-000
Film, rear body side
|
67627-M7000-000 |
— | ||
|
16
|
16
09250-M2001-500
Cap, heater control hole
|
09250-M2001-500 |
— | ||
|
17
|
17
67627-M7000-000
Film, rear body side
|
67627-M7000-000 |
— | ||
|
18
|
18
09125-08003-000 SCREW(8X14)RHD |
09125-08003-000 |
from US $2.45 |
||
|
19
|
19
67627-M7000-000
Film, rear body side
|
67627-M7000-000 |
— | ||
|
20
|
20
61450-57C00-000 MEMBER,FR SEAT,RRHD |
61450-57C00-000 |
US $50.40 |
||
|
21
|
21
61550-57C00-000
MEMBER,FR SEAT,L
LHD |
61550-57C00-000 |
— |
