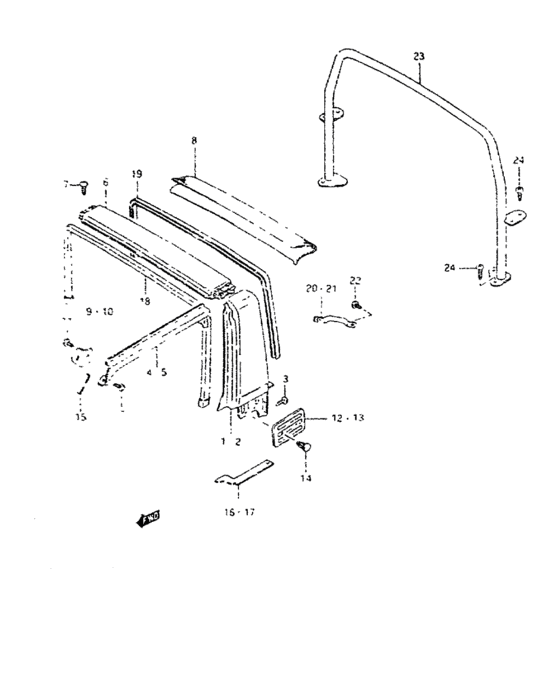

Center pillar extension (CENTER PILLAR EXTENSION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65710-M8030-200
Extension, side rh
|
65710-M8030-200 |
— | ||
|
2
|
2
65750-M8030-200
Extension, side lh
|
65750-M8030-200 |
— | ||
|
3
|
3
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
4
|
4
65770-M8001-000
Rail, roof side rh
|
65770-M8001-000 |
— | ||
|
5
|
5
65780-M8001-000
Rail, roof side lh
|
65780-M8001-000 |
— | ||
|
6
|
6
65730-M8001-100
Extension, center
|
65730-M8001-100 |
— | ||
|
7
|
7
02142-M0612-800
Screw
|
02142-M0612-800 |
— | ||
|
8
|
8
78681-M8030-300
Pad, extension center
|
78681-M8030-300 |
— | ||
|
9
|
9
65775-M8000-000
Stay, roof side rh
|
65775-M8000-000 |
— | ||
|
10
|
10
65785-M8000-000
Stay, roof side lh
|
65785-M8000-000 |
— | ||
|
11
|
11
02142-M0616-600
Screw
|
02142-M0616-600 |
— | ||
|
12
|
12
77311-80000-000 GARNISH,EXTENSION,R |
77311-80000-000 |
US $14.88 |
||
|
13
|
13
77312-80000-000 GARNISH,EXTENSION,L |
77312-80000-000 |
US $14.88 |
||
|
14
|
14
09409-05304-000
クリップ
|
09409-05304-000 |
— | ||
| replacement | |||||
|
14
|
14
09409-05304-5PK CLIP(BLACK) |
09409-05304-5PK |
US $1.92 |
||
|
15
|
15
77313-M8000-100
Seal, roof side rail
|
77313-M8000-100 |
— | ||
|
16
|
16
78621-80001-000 PACKING,EXT CTR PLR,R |
78621-80001-000 |
US $10.24 |
||
|
17
|
17
78661-80001-000 PACKING,EXT CTR PLR,L |
78661-80001-000 |
US $10.24 |
||
|
18
|
18
84650-M8003-000
Trim, opening extension front
|
84650-M8003-000 |
— | ||
|
19
|
19
84646-M8000-000
Trim, opening extension
|
84646-M8000-000 |
— | ||
|
20
|
20
78611-M8031-000
Bar, strain rh
|
78611-M8031-000 |
— | ||
|
21
|
21
78651-M8031-000
Bar, strain lh
|
78651-M8031-000 |
— | ||
|
22
|
22
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
22
|
22
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
|
23
|
23
78660-M8030-000
Pipe, rear
|
78660-M8030-000 |
— | ||
|
24
|
24
09125-08011-000
スクリュ
|
09125-08011-000 |
— | ||
| replacement | |||||
|
24
|
24
09125-08015-XC0 SCREW(8X20) |
09125-08015-XC0 |
US $1.60 |
||
