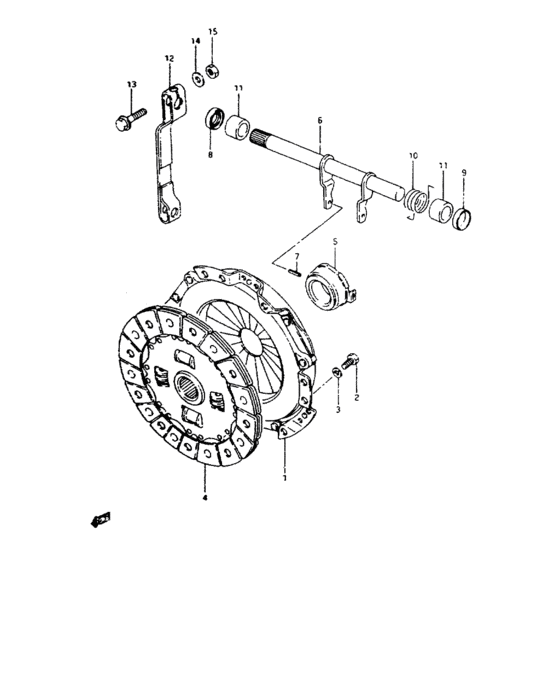

Clutch (CLUTCH) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-M8001-100
Cover assy, clutch
|
22100-M8001-100 |
— | ||
|
2
|
2
01107-M0816-600
Bolt
|
01107-M0816-600 |
— | ||
|
3
|
3
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
4
|
4
22400-M8002-000
Disc, clutch
|
22400-M8002-000 |
— | ||
|
4
|
4
22400-M8521-000
Disc, clutch
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
22400-M8521-000 |
— | ||
|
5
|
5
23265-70C00-000 BEARING,CLUTCH RELEASE |
23265-70C00-000 |
US $87.20 |
||
|
6
|
6
23260-M8300-200
Shaft, clutch release
|
23260-M8300-200 |
— | ||
|
7
|
7
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
8
|
8
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $6.38 |
||
|
9
|
9
09241-22003-000 PLUG |
09241-22003-000 |
from US $1.76 |
||
|
10
|
10
09448-M2000-600
Spring
|
09448-M2000-600 |
— | ||
|
11
|
11
09300-M1401-200
Bush
|
09300-M1401-200 |
— | ||
|
12
|
12
23266-M8040-000
Arm, clutch release
|
23266-M8040-000 |
— | ||
|
13
|
13
01514-M0835-600
Bolt
|
01514-M0835-600 |
— | ||
|
14
|
14
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
|
15
|
15
08310-M1108-600
Nut
|
08310-M1108-600 |
— |
