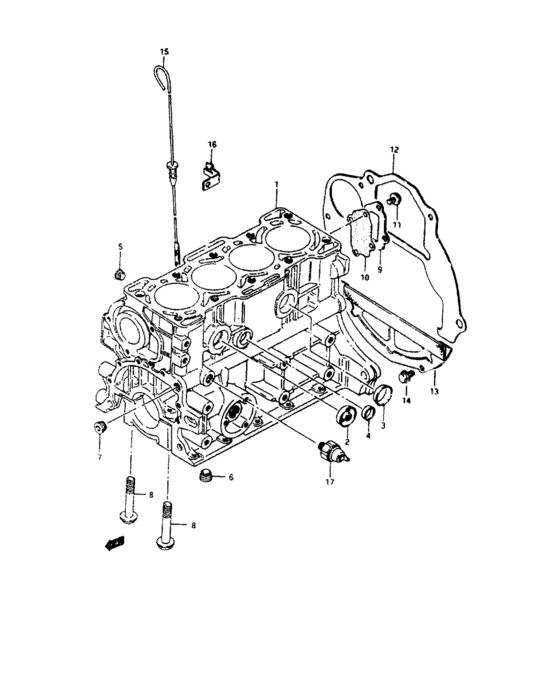

Cylinder (CYLINDER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-M8000-100
Block assy, cylinder
|
11200-M8000-100 |
— | ||
|
2
|
2
11250-80000-000
Bouchon de dessablag
|
11250-80000-000 |
— | ||
| replacements | |||||
|
2
|
2
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
2
|
2
09241-30009-000
Plug
|
09241-30009-000 |
— | ||
|
3
|
3
09241-30002-000
プラグ,OD:30
|
09241-30002-000 |
— | ||
| replacement | |||||
|
3
|
3
09241-30010-000 PLUG |
09241-30010-000 |
US $2.40 |
||
|
4
|
4
09241-20002-000
プラグ
|
09241-20002-000 |
— | ||
| replacement | |||||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
US $1.44 |
||
|
5
|
5
09246-05003-000
プラグ,1/8PT,H:5.5
|
09246-05003-000 |
— | ||
| replacement | |||||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5) |
09246-05006-000 |
from US $1.76 |
||
|
6
|
6
09246-M0600-100
Plug, oil gallery
|
09246-M0600-100 |
— | ||
|
7
|
7
09246-06002-000
PLUG
|
09246-06002-000 |
— | ||
| replacement | |||||
|
7
|
7
09246-08007-000 PLUG |
09246-08007-000 |
US $1.76 |
||
|
8
|
8
01527-M1060-600
Bolt
|
01527-M1060-600 |
— | ||
|
9
|
9
11221-M7300-000
Plate, cylinder block
|
11221-M7300-000 |
— | ||
|
10
|
10
11229-M7300-000
Gasket, cyl block plate
|
11229-M7300-000 |
— | ||
|
11
|
11
01514-M0610-600
Screw
|
01514-M0610-600 |
— | ||
|
12
|
12
11311-M8270-000
Plate, clutch housing upper
|
11311-M8270-000 |
— | ||
|
13
|
13
11320-M7300-000
Plate, clutch housing lower
|
11320-M7300-000 |
— | ||
|
14
|
14
01614-M0610-600
Bolt
|
01614-M0610-600 |
— | ||
|
15
|
15
16910-M8000-200
Gauge, oil level
|
16910-M8000-200 |
— | ||
|
16
|
16
16915-M8000-000
Support, oil level gauge
|
16915-M8000-000 |
— | ||
|
17
|
17
37820-M8204-000
Switch, oil pressure
|
37820-M8204-000 |
— | ||
|
17
|
17
37820-82001-000
Switch assy, oil pressure
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
37820-82001-000 |
— | ||
| replacement | |||||
|
17
|
17
37820-820P0-000 SWITCH ASSY,OIL PRESSUREGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
37820-820P0-000 |
US $23.56 |
||
