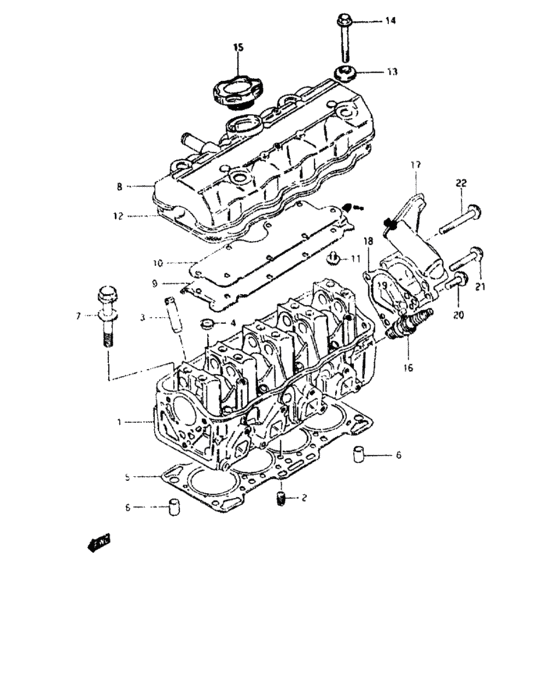

Cylinder head (CYLINDER HEAD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-M8000-100
Head, cylinder
|
11110-M8000-100 |
— | ||
|
2
|
2
11112-M7300-100
Plug, oil venturi
|
11112-M7300-100 |
— | ||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
US $1.44 |
||
|
5
|
5
11141-75120-000 GASKET,CYL HEAD NA |
11141-75120-000 |
US $64.80 |
||
|
6
|
6
09206-M1300-100
Knock pin
|
09206-M1300-100 |
— | ||
|
7
|
7
09116-M1011-600
Bolt
|
09116-M1011-600 |
— | ||
|
8
|
8
11170-M7300-000
Cover, cylinder head
|
11170-M7300-000 |
— | ||
|
9
|
9
11172-M7300-000
Plate, breather
|
11172-M7300-000 |
— | ||
|
10
|
10
11173-M7304-100
Gasket, breather plate
|
11173-M7304-100 |
— | ||
|
11
|
11
01514-M0610-600
Screw
|
01514-M0610-600 |
— | ||
|
12
|
12
11189-M7304-000
Gasket, head cover
|
11189-M7304-000 |
— | ||
|
13
|
13
11180-M7810-100
Washer, head cover
|
11180-M7810-100 |
— | ||
|
14
|
14
01517-M0660-600
Bolt
|
01517-M0660-600 |
— | ||
|
15
|
15
16920-M8000-200
Cap, oil filler
|
16920-M8000-200 |
— | ||
|
16
|
16
09482-M4013-100
Spark Plug
|
09482-M4013-100 |
— | ||
|
17
|
17
11161-M8000-000
Case, diatributor
|
11161-M8000-000 |
— | ||
|
18
|
18
11169-M7301-200
Gasket, case
|
11169-M7301-200 |
— | ||
|
19
|
19
04221-M0612-900
Pin
|
04221-M0612-900 |
— | ||
|
20
|
20
01514-M0825-600
Bolt
|
01514-M0825-600 |
— | ||
|
21
|
21
01517-M0845-600
Bolt
|
01517-M0845-600 |
— | ||
|
22
|
22
01517-M0860-600
Bolt
|
01517-M0860-600 |
— |
