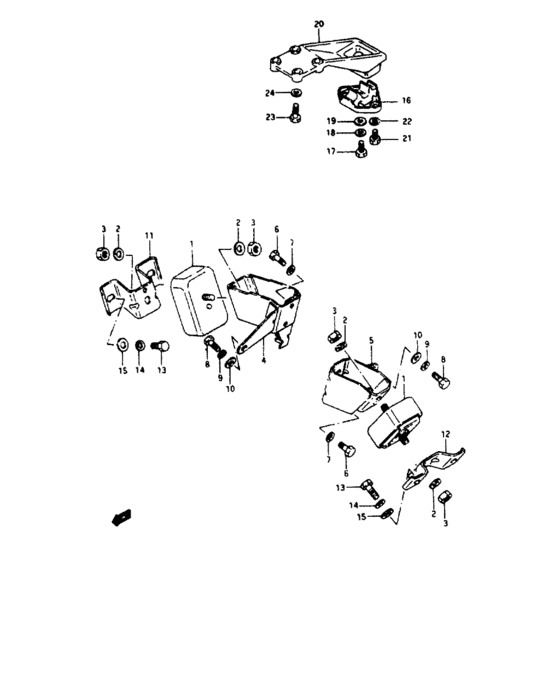

Engine mounting (ENGINE MOUNTING) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-M8002-000
Mounting, engine front
|
11610-M8002-000 |
— | ||
|
2
|
2
08321-M3110-300
Lock washer
|
08321-M3110-300 |
— | ||
|
3
|
3
08310-M0010-300
Nut
|
08310-M0010-300 |
— | ||
|
4
|
4
11640-M8001-000
Bracket, front rh
|
11640-M8001-000 |
— | ||
|
5
|
5
11650-M8001-000
Bracket, front lh
|
11650-M8001-000 |
— | ||
|
6
|
6
01107-M0825-600
Bolt
|
01107-M0825-600 |
— | ||
|
7
|
7
08321-M2108-600
Lock washer
|
08321-M2108-600 |
— | ||
|
8
|
8
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
9
|
9
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
10
|
10
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
|
11
|
11
11661-M8000-100
Bracket, body side rh
|
11661-M8000-100 |
— | ||
|
12
|
12
11671-M8001-000
Bracket, body side lh
|
11671-M8001-000 |
— | ||
|
13
|
13
01107-M1030-600
Bolt
|
01107-M1030-600 |
— | ||
|
14
|
14
08321-M3110-600
Lock washer
|
08321-M3110-600 |
— | ||
|
15
|
15
09160-10001-000
Washer
|
09160-10001-000 |
— | ||
| replacement | |||||
|
15
|
15
09160-10093-000 WASHER(10.5X24X2.3) |
09160-10093-000 |
from US $1.35 |
||
|
16
|
16
11710-M8001-000
Mounting, engine rear
|
11710-M8001-000 |
— | ||
|
17
|
17
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
18
|
18
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
19
|
19
08322-M1108-300
Washer
|
08322-M1108-300 |
— | ||
|
20
|
20
11741-M8001-000
Bracket, rear mounting
|
11741-M8001-000 |
— | ||
|
21
|
21
01107-M0816-600
Bolt
|
01107-M0816-600 |
— | ||
|
22
|
22
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
23
|
23
01107-M0830-600
Bolt
|
01107-M0830-600 |
— | ||
|
24
|
24
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
