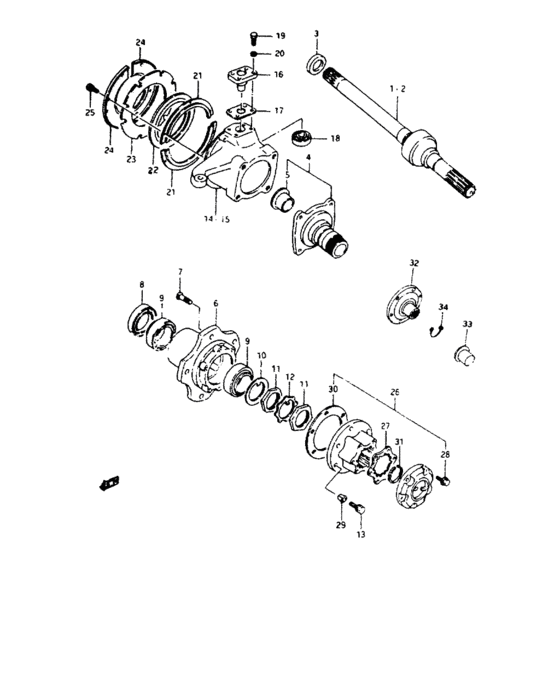

Front axle (FRONT AXLE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-M8001-000
Joint assy, axle shaft rh
FOR N/TREAD |
44101-M8001-000 |
— | ||
|
1
|
1
44101-M8330-100
Joint assy, axle shaft rh
FOR W/TREAD |
44101-M8330-100 |
— | ||
|
2
|
2
44102-M8001-000
Joint assy, axle shaft lh
FOR N/TREAD |
44102-M8001-000 |
— | ||
|
2
|
2
44102-M8330-100
Joint assy, axle shaft lh
FOR W/TREAD |
44102-M8330-100 |
— | ||
|
3
|
3
09283-26016-000 SEAL,OIL(26X38X8) |
09283-26016-000 |
from US $4.41 |
||
|
4
|
4
43440-M8000-500
Spindle, front wheel
|
43440-M8000-500 |
— | ||
|
5
|
5
43445-60A11-000 BUSHING,FR SPINDLE |
43445-60A11-000 |
from US $12.65 |
||
|
6
|
6
43421-M8000-200
Hub, front wheel
|
43421-M8000-200 |
— | ||
|
7
|
7
09119-M1200-800
Bolt
|
09119-M1200-800 |
— | ||
|
8
|
8
09283-50002-000 SEAL,OIL(50X68X7) |
09283-50002-000 |
from US $5.58 |
||
|
9
|
9
09265-41001-000 BEARING(41X68X17.5) |
09265-41001-000 |
from US $38.40 |
||
|
10
|
10
43465-M8000-000
Washer
|
43465-M8000-000 |
— | ||
|
11
|
11
43461-M8000-000
Nut
|
43461-M8000-000 |
— | ||
|
12
|
12
43466-M8000-000
Lock washer
|
43466-M8000-000 |
— | ||
|
13
|
13
01107-M0825-600
Bolt
|
01107-M0825-600 |
— | ||
|
16
|
16
45610-M6300-100
King pin
|
45610-M6300-100 |
— | ||
|
17
|
17
45621-M6300-000
Shim, king pin no.1
|
45621-M6300-000 |
— | ||
|
17
|
17
45622-M6300-000
Shim, king pin no.2
|
45622-M6300-000 |
— | ||
|
18
|
18
09265-15002-000
ベアリング
|
09265-15002-000 |
— | ||
| replacement | |||||
|
18
|
18
09265-15005-000 BEARING(15X42X14.25) |
09265-15005-000 |
US $56 |
||
|
19
|
19
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
20
|
20
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
21
|
21
45623-M8000-100
Retainer, oil seal
|
45623-M8000-100 |
— | ||
|
22
|
22
09285-00002-000 SEAL,OIL(85X112X5) |
09285-00002-000 |
from US $11.72 |
||
|
23
|
23
45624-63001-000
パッド
|
45624-63001-000 |
— | ||
| replacement | |||||
|
23
|
23
45600-82810-000 Pad set |
45600-82810-000 |
from US $6.01 |
||
|
24
|
24
45625-M6300-100
Cover, oil seal
|
45625-M6300-100 |
— | ||
|
25
|
25
45626-83000-000 BOLT,JOINT SEAL |
45626-83000-000 |
US $4.48 |
||
|
26
|
26
43801-80011-000 HUB SET,LOCKING |
43801-80011-000 |
US $571.52 |
||
|
27
|
27
43813-80000-000
ガスケット,カバー
|
43813-80000-000 |
— | ||
| replacement | |||||
|
27
|
27
43813-60A00-000 GASKET,LOCKING HUB COVER |
43813-60A00-000 |
US $2.88 |
||
|
28
|
28
43814-80010-000
ボルト,カバー
|
43814-80010-000 |
— | ||
| replacements | |||||
|
28
|
28
01560-0616A-000 Bolt |
01560-0616A-000 |
US $0.80 |
||
|
28
|
28
01560-06163-000
Bolt
|
01560-06163-000 |
— | ||
|
29
|
29
43841-M8000-000
Cone washer, locking hub
|
43841-M8000-000 |
— | ||
|
30
|
30
43842-80001-000 PACKING,LOCKING HUB |
43842-80001-000 |
US $2.56 |
||
|
31
|
31
09380-26003-000 CIRCLIP |
09380-26003-000 |
US $1.92 |
||
|
32
|
32
43471-M8000-100
Flange, front axle shaft
FOR N/HUB LOCKING |
43471-M8000-100 |
— | ||
|
33
|
33
43241-80001-000 CAP,FR AXLEFOR N/HUB LOCKING |
43241-80001-000 |
from US $5.76 |
||
|
34
|
34
08331-31266-000
Circlip
FOR N/HUB LOCKING |
08331-31266-000 |
— | ||
| replacement | |||||
|
34
|
34
08331-3126A-000 CIRCLIPFOR N/HUB LOCKING |
08331-3126A-000 |
from US $2.32 |
||
