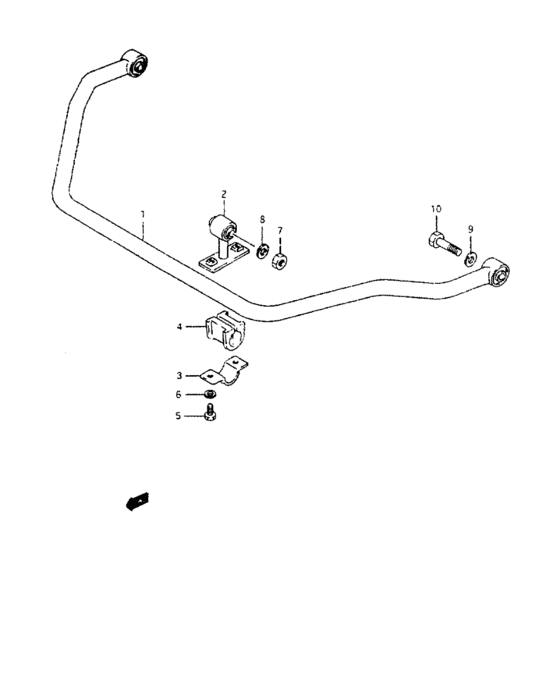

Front stabilizer (FRONT STABILIZER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42300-83000-000
STABILIZER ASSY,FR
FOR N/TREAD |
42300-83000-000 |
— | ||
|
1
|
1
42300-70A00-000 STABILIZER ASSY,FRFOR W/TREAD |
42300-70A00-000 |
US $142.42 |
||
|
2
|
2
42400-83001-000 ROD ASSY,FR STABILIZER |
42400-83001-000 |
US $46.37 |
||
|
3
|
3
42415-M8300-000
Plate, stabilizer mount
|
42415-M8300-000 |
— | ||
|
4
|
4
46625-M8000-000
Bush, stabilizer mount
FOR N/TREAD |
46625-M8000-000 |
— | ||
|
4
|
4
42412-M70A0-000
Bush, stabilizer mount
FOR W/TREAD |
42412-M70A0-000 |
— | ||
|
5
|
5
01107-M0820-600
Bolt, cprsr adjuster bracket
|
01107-M0820-600 |
— | ||
|
6
|
6
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
7
|
7
08310-M1110-600
Nut
|
08310-M1110-600 |
— | ||
|
8
|
8
08321-M3110-300
Lock washer
|
08321-M3110-300 |
— | ||
|
9
|
9
08321-M3112-300
Lock washer
|
08321-M3112-300 |
— | ||
|
10
|
10
09100-M1203-300
Bolt
|
09100-M1203-300 |
— |
