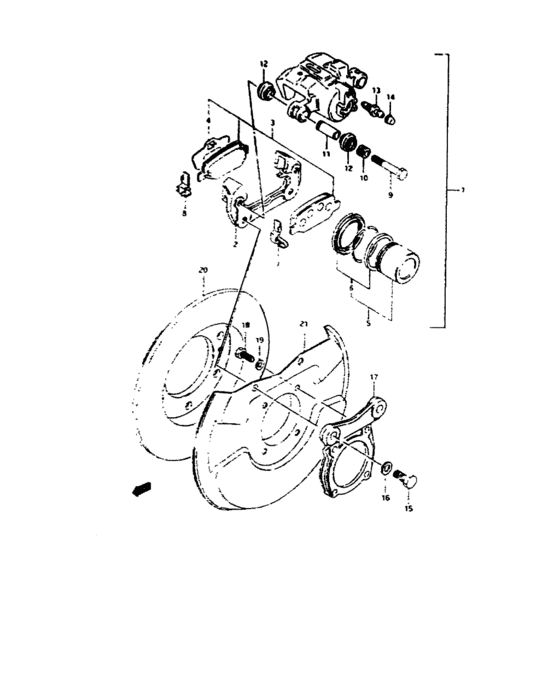

Front wheel brake (FRONT WHEEL BRAKE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55100-70A00-000
キャリパアッシ,フロントディスクブレーキ
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
55100-70A00-000 |
— | ||
| replacements | |||||
|
1
|
1
55100-70A04-999
CALIPER,FR BRAKE
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
55100-70A04-999 |
— | ||
|
1
|
1
55200-70813-000 PAD SET,DISC BRAKEGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
55200-70813-000 |
from US $72.91 |
||
|
1
|
1
55100-70A05-999 Caliper,fr BrakeGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
55100-70A05-999 |
US $371.68 |
||
|
2
|
2
55161-80000-000 MOUNTING,DISC BRAKE |
55161-80000-000 |
US $20 |
||
|
4
|
4
55115-80000-000
シム,アンチスキール
|
55115-80000-000 |
— | ||
|
5
|
5
55100-82810-000
Piston & boot set
|
55100-82810-000 |
— | ||
| replacements | |||||
|
5
|
5
55830-60C12-000
PISTON / SEAL SET
|
55830-60C12-000 |
— | ||
|
5
|
5
55830-60C13-000
Piston / Seal Set
|
55830-60C13-000 |
— | ||
|
6
|
6
55100-82820-000
Seal set,piston
|
55100-82820-000 |
— | ||
| replacements | |||||
|
6
|
6
55100-82822-000
SEAL SET,PISTON
|
55100-82822-000 |
— | ||
|
6
|
6
55100-82823-000
Seal Set,piston
|
55100-82823-000 |
— | ||
|
6
|
6
55100-82824-000 Seal Set,Piston |
55100-82824-000 |
from US $6.75 |
||
|
7
|
7
55234-60800-000
Plate, pad support no.1
|
55234-60800-000 |
— | ||
|
8
|
8
55235-60800-000
Plate, pad support no.2
|
55235-60800-000 |
— | ||
|
9
|
9
55206-80000-000
ボルト
|
55206-80000-000 |
— | ||
| replacements | |||||
|
9
|
9
01500-0855B-000 BOLT |
01500-0855B-000 |
from US $1.12 |
||
|
9
|
9
01500-08553-000
Bolt
|
01500-08553-000 |
— | ||
|
10
|
10
55196-80002-000 SUPPORT,DUST BOOT |
55196-80002-000 |
US $2.40 |
||
|
11
|
11
55191-80000-000
ブッシュ,シリンダスライド
|
55191-80000-000 |
— | ||
| replacement | |||||
|
11
|
11
55191-80001-000 BUSHING,CYLINDER SLIDE |
55191-80001-000 |
US $19.01 |
||
|
12
|
12
55201-80001-000 BOOT,BUSH DUST |
55201-80001-000 |
US $2.40 |
||
|
13
|
13
52473-60020-000
プラグ,ブリーダ
|
52473-60020-000 |
— | ||
| replacement | |||||
|
13
|
13
55151-78451-000 PLUG,BLEEDER |
55151-78451-000 |
from US $3.94 |
||
|
14
|
14
52474-60020-000
Bleeder cap
|
52474-60020-000 |
— | ||
| replacements | |||||
|
14
|
14
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
14
|
14
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
|
15
|
15
09100-M1211-100
Bolt, brake caliper
|
09100-M1211-100 |
— | ||
|
16
|
16
08321-M3112-300
Lock washer
|
08321-M3112-300 |
— | ||
|
17
|
17
55311-M8000-000
Holder, brake caliper
|
55311-M8000-000 |
— | ||
|
18
|
18
09100-M1002-300
Bolt
|
09100-M1002-300 |
— | ||
|
19
|
19
08321-M3110-300
Lock washer
|
08321-M3110-300 |
— | ||
|
20
|
20
55211-M8000-000
Disk, front brake
|
55211-M8000-000 |
— | ||
|
21
|
21
55221-M8000-000
Dust, cover
|
55221-M8000-000 |
— | ||
