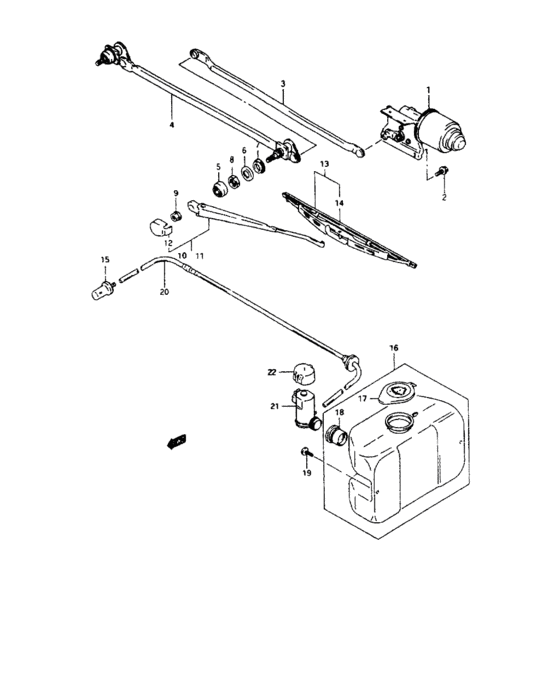

Front wiper and washer (RHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-M8000-000
Motor assy, wiper
FOR N/TREAD |
38101-M8000-000 |
— | ||
|
1
|
1
38101-M50C0-000
Motor assy, wiper
FOR W/TREAD |
38101-M50C0-000 |
— | ||
|
2
|
2
02142-M0612-800
Screw
|
02142-M0612-800 |
— | ||
|
3
|
3
38255-M8000-000
Rod, wiper link
FOR N/TREAD |
38255-M8000-000 |
— | ||
|
3
|
3
38255-M50C0-000
Rod, wiper link
FOR W/TREAD |
38255-M50C0-000 |
— | ||
|
4
|
4
38102-M8002-000
Link assy, wiper
FOR N/TREAD |
38102-M8002-000 |
— | ||
|
4
|
4
38102-M50C0-100
Link assy, wiper
FOR W/TREAD |
38102-M50C0-100 |
— | ||
|
5
|
5
38274-M7801-000
Cap
|
38274-M7801-000 |
— | ||
|
6
|
6
38271-M82C1-000
Washer
|
38271-M82C1-000 |
— | ||
|
7
|
7
38272-M82C1-000
Gasket
|
38272-M82C1-000 |
— | ||
|
8
|
8
38278-67011-000 NUT |
38278-67011-000 |
US $1.60 |
||
|
9
|
9
08316-M1606-600
Nut
|
08316-M1606-600 |
— | ||
|
10
|
10
38310-M8000-000
Arm assy, wiper rh
FOR N/TREAD |
38310-M8000-000 |
— | ||
|
10
|
10
38310-M82C0-000
Arm assy, wiper rh
FOR W/TREAD |
38310-M82C0-000 |
— | ||
|
11
|
11
38330-M8000-000
Arm assy, wiper lh
FOR N/TREAD |
38330-M8000-000 |
— | ||
|
11
|
11
38330-M82C0-000
Arm assy, wiper lh
FOR W/TREAD |
38330-M82C0-000 |
— | ||
|
12
|
12
38315-81000-000 COVER,ARM HEAD |
38315-81000-000 |
US $4.80 |
||
|
13
|
13
38340-M6770-100
Blade assy, wiper
FOR N/TREAD |
38340-M6770-100 |
— | ||
|
13
|
13
38340-M82C0-000
Blade assy, wiper
FOR W/TREAD |
38340-M82C0-000 |
— | ||
|
14
|
14
38346-M82C0-000
Blade
|
38346-M82C0-000 |
— | ||
|
15
|
15
38480-M8010-000
Nozzle, washer
|
38480-M8010-000 |
— | ||
|
16
|
16
38450-M8000-000
Tank assy, washer
|
38450-M8000-000 |
— | ||
|
17
|
17
38452-M8000-000
Cap, washer tank
|
38452-M8000-000 |
— | ||
|
18
|
18
38453-M7500-000
Grommet
|
38453-M7500-000 |
— | ||
|
19
|
19
02142-M0612-600
Screw
|
02142-M0612-600 |
— | ||
|
20
|
20
38490-M8001-000
Hose assy
|
38490-M8001-000 |
— | ||
|
21
|
21
38410-66113-000 PUMP ASSY,WASHERPump assy, washer |
38410-66113-000 |
US $59.20 |
||
|
22
|
22
38837-79500-000 CAP,WASHER MOTOR |
38837-79500-000 |
US $1.60 |
