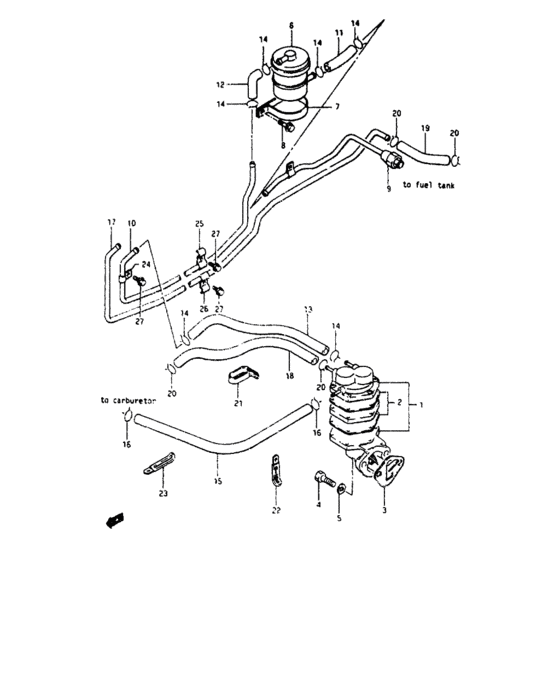

Fuel Pump (FUEL PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-M8002-000
Pump assy, fuel
|
15100-M8002-000 |
— | ||
|
2
|
2
15100-80811-000
Diaphragm set
FOR 15100-80811 |
15100-80811-000 |
— | ||
| replacement | |||||
|
2
|
2
15100-8081V-000 DIAPHRAGM SETFOR 15100-80811 |
15100-8081V-000 |
US $145.60 |
||
|
3
|
3
15319-M7303-100
Gasket
|
15319-M7303-100 |
— | ||
|
4
|
4
01107-M0825-600
Bolt
|
01107-M0825-600 |
— | ||
|
5
|
5
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
6
|
6
15410-M7910-000
Filter, fuel
|
15410-M7910-000 |
— | ||
|
7
|
7
09403-M5140-500
Clamp
|
09403-M5140-500 |
— | ||
|
8
|
8
01514-M0612-600
Screw, stay
|
01514-M0612-600 |
— | ||
|
9
|
9
15810-M8030-100
Pipe, tank to filter
|
15810-M8030-100 |
— | ||
|
10
|
10
15821-M8300-100
Pipe, filter to pump
|
15821-M8300-100 |
— | ||
|
11
|
11
09343-M0704-300
Hose, pipe to filter
|
09343-M0704-300 |
— | ||
|
12
|
12
09343-M0710-900
Hose, filter to pipe
|
09343-M0710-900 |
— | ||
|
13
|
13
09343-M0704-400
Hose, pipe to pump
|
09343-M0704-400 |
— | ||
|
14
|
14
09401-M1230-100
Clip
|
09401-M1230-100 |
— | ||
|
16
|
16
09401-M1140-200
Clip
|
09401-M1140-200 |
— | ||
|
17
|
17
15861-M8340-200
Pipe, fuel return
|
15861-M8340-200 |
— | ||
|
18
|
18
09343-M0404-700
Hose, pump to pipe
|
09343-M0404-700 |
— | ||
|
19
|
19
09343-M0403-600
Hose, pipe to tank
|
09343-M0403-600 |
— | ||
|
20
|
20
09401-M0830-100
Clip
|
09401-M0830-100 |
— | ||
|
21
|
21
15891-M7300-100
Clamp, hose no.1
|
15891-M7300-100 |
— | ||
|
22
|
22
09404-M0840-400
Clamp, hose no.2
|
09404-M0840-400 |
— | ||
|
23
|
23
09404-M0840-200
Clamp, hose no.3
|
09404-M0840-200 |
— | ||
|
24
|
24
09403-M0830-900
Clamp, fuel pipe
|
09403-M0830-900 |
— | ||
|
25
|
25
09403-M0831-000
Clamp, fuel/brake pipe
|
09403-M0831-000 |
— | ||
|
26
|
26
15819-M8300-000
Clamp, return pipe
|
15819-M8300-000 |
— | ||
|
27
|
27
09132-06006-000 SCREW(6X12) |
09132-06006-000 |
US $1.60 |
||
