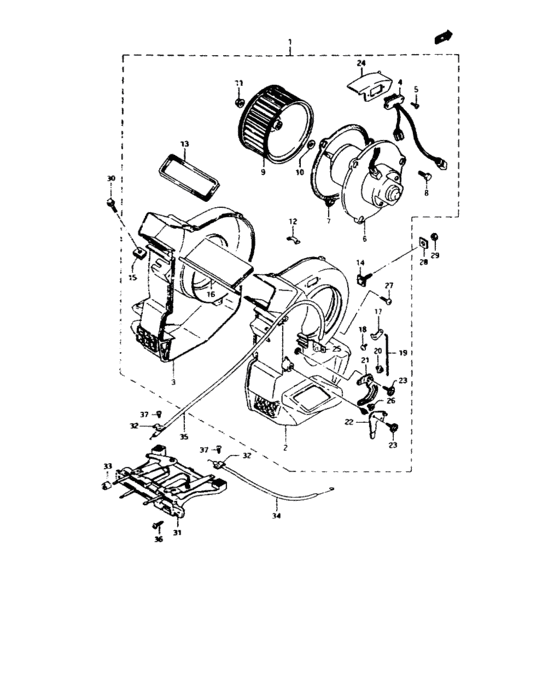

Heater (HEATER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-M8301-000
Heater assy
RHD; General, Bangladesh, Sri Lanka, Malta |
74100-M8301-000 |
— | ||
|
1
|
1
74100-83030-000
Heater assy
LHD |
74100-83030-000 |
— | ||
|
2
|
2
74111-83003-000
ケース,ヒータ,ライト
RHD |
74111-83003-000 |
— | ||
| replacements | |||||
|
2
|
2
74111-83004-000 CASE,HEATER,RRHD |
74111-83004-000 |
US $60.35 |
||
|
2
|
2
74140-70A40-000 REGISTERRHD |
74140-70A40-000 |
US $29.26 |
||
|
2
|
2
74111-83023-000
Case, heater rh
LHD |
74111-83023-000 |
— | ||
| replacement | |||||
|
2
|
2
74111-83024-000
CASE,HEATER,R
LHD |
74111-83024-000 |
— | ||
|
3
|
3
74112-83003-000
ケース,ヒータ,レフト
RHD |
74112-83003-000 |
— | ||
| replacement | |||||
|
3
|
3
74112-83004-000 CASE,HEATER,LRHD |
74112-83004-000 |
US $55.94 |
||
|
3
|
3
74112-83022-000
Case, heater lh
LHD |
74112-83022-000 |
— | ||
| replacement | |||||
|
3
|
3
74112-83023-000 CASE,HEATER,LLHD |
74112-83023-000 |
US $61.82 |
||
|
4
|
4
74120-83000-000 REGISTERRHD |
74120-83000-000 |
US $32 |
||
|
4
|
4
74120-83020-000
REGISTER
LHD |
74120-83020-000 |
— | ||
|
5
|
5
03141-04108-000
New Genuine Part
|
03141-04108-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0410A-000 SCREW |
03141-0410A-000 |
US $0.80 |
||
|
6
|
6
74140-M8300-000
Motor assy
|
74140-M8300-000 |
— | ||
|
7
|
7
88153-M8007-000
Packing
|
88153-M8007-000 |
— | ||
|
8
|
8
03212-05169-000
Screw
|
03212-05169-000 |
— | ||
| replacements | |||||
|
8
|
8
03212-0516B-000
SCREW
|
03212-0516B-000 |
— | ||
|
8
|
8
13765-48GV0-000 Screw |
13765-48GV0-000 |
from US $3.55 |
||
|
9
|
9
88140-80070-000
ファン,ブロア
RHD |
88140-80070-000 |
— | ||
| replacement | |||||
|
9
|
9
74141-50A00-000 FAN,BLOWERRHD |
74141-50A00-000 |
US $31.20 |
||
|
9
|
9
74190-83020-000
Fan, blower
LHD |
74190-83020-000 |
— | ||
| replacement | |||||
|
9
|
9
74141-84300-000 FAN,BLOWERLHD |
74141-84300-000 |
US $33.86 |
||
|
10
|
10
74131-82000-000
ワッシャ,ファン
|
74131-82000-000 |
— | ||
| replacement | |||||
|
10
|
10
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
11
|
11
08316-26056-000
Nut, cam lever
|
08316-26056-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-2005A-000 NUT |
08316-2005A-000 |
from US $0.80 |
||
|
12
|
12
88119-79000-000
Spring, case
|
88119-79000-000 |
— | ||
| replacement | |||||
|
12
|
12
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
13
|
13
74165-83000-000 PACKING |
74165-83000-000 |
US $6.40 |
||
|
14
|
14
74180-83000-000
Lever assy,heat
|
74180-83000-000 |
— | ||
|
15
|
15
74187-M8300-000
Holder
|
74187-M8300-000 |
— | ||
|
16
|
16
74114-M8300-000
Damper
|
74114-M8300-000 |
— | ||
|
17
|
17
74161-M8300-000
Lever
|
74161-M8300-000 |
— | ||
|
18
|
18
02112-M0306-600
Screw
|
02112-M0306-600 |
— | ||
|
19
|
19
74116-M8300-000
Shaft
|
74116-M8300-000 |
— | ||
|
20
|
20
74181-82000-000
ホルダ,リンク
|
74181-82000-000 |
— | ||
| replacement | |||||
|
20
|
20
74181-70A00-000
Clamp
|
74181-70A00-000 |
— | ||
|
21
|
21
74191-83001-000
プレート
|
74191-83001-000 |
— | ||
|
22
|
22
77164-M8300-000
Lever
|
77164-M8300-000 |
— | ||
|
23
|
23
74181-M8410-000
Screw
|
74181-M8410-000 |
— | ||
|
24
|
24
74119-83000-000
PLATE
RHD |
74119-83000-000 |
— | ||
|
24
|
24
74119-83020-000
Plaque
LHD |
74119-83020-000 |
— | ||
|
25
|
25
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
26
|
26
74182-M8410-000
Collar, link
|
74182-M8410-000 |
— | ||
|
27
|
27
03511-05163-000
Screw
|
03511-05163-000 |
— | ||
| replacement | |||||
|
27
|
27
03511-0516A-000 SCREW |
03511-0516A-000 |
from US $0.76 |
||
|
28
|
28
74172-M8000-000
Pad, heater
|
74172-M8000-000 |
— | ||
|
29
|
29
08316-M1608-600
Nut
|
08316-M1608-600 |
— | ||
|
30
|
30
01514-M0616-600
Bolt
|
01514-M0616-600 |
— | ||
|
31
|
31
74400-83000-000 LEVER ASSY,HTR CONT |
74400-83000-000 |
US $80.80 |
||
|
32
|
32
74416-M8300-000
Holder, cable
|
74416-M8300-000 |
— | ||
|
33
|
33
74417-M8300-100
Knob, lever control
|
74417-M8300-100 |
— | ||
|
34
|
34
74513-M8300-000
Wire, circ./fresh
RHD |
74513-M8300-000 |
— | ||
|
34
|
34
74513-83020-000
WIRE,CIRC&FRESH CONTROL
LHD |
74513-83020-000 |
— | ||
|
35
|
35
74514-M8300-000
Wire, room/defroster
|
74514-M8300-000 |
— | ||
|
36
|
36
03541-04123-000
Screw
|
03541-04123-000 |
— | ||
| replacements | |||||
|
36
|
36
03541-0412B-000 SCREWScrew, plate |
03541-0412B-000 |
from US $0.80 |
||
|
36
|
36
03541-0412A-000 SCREWScrew, speedometer |
03541-0412A-000 |
from US $0.80 |
||
|
37
|
37
03511-M0412-600
Screw
|
03511-M0412-600 |
— | ||
