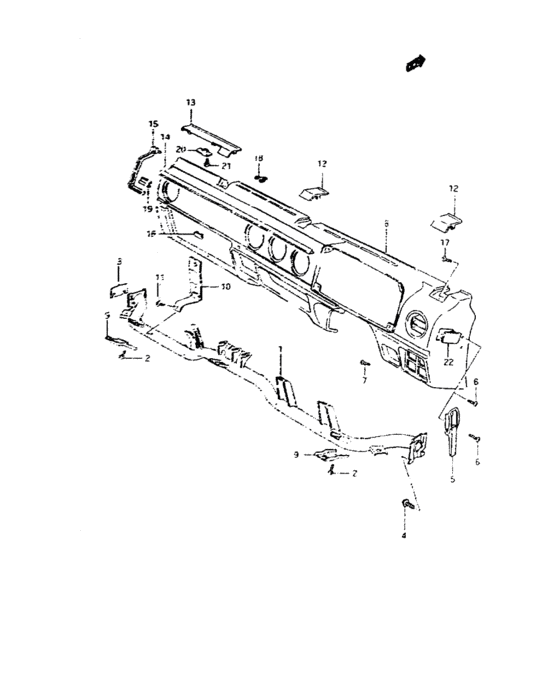

Instrument panel (RHD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
72310-M8300-200
Holder, steering column
|
72310-M8300-200 |
— | ||
|
2
|
2
02142-M0616-600
Screw
|
02142-M0616-600 |
— | ||
|
3
|
3
72321-M8000-100
Plate, column holder
|
72321-M8000-100 |
— | ||
|
4
|
4
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
4
|
4
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
72430-M8000-200
Handle, window lock
|
72430-M8000-200 |
— | ||
|
6
|
6
02142-M0616-300
Screw
|
02142-M0616-300 |
— | ||
|
7
|
7
02142-M0616-600
Screw
|
02142-M0616-600 |
— | ||
|
8
|
8
73111-M8300-000
Panel, instrument main
|
73111-M8300-000 |
— | ||
|
9
|
9
72322-M8300-000
Stay, instrument
|
72322-M8300-000 |
— | ||
|
10
|
10
73810-M8303-000
Stay, hood lock opener
|
73810-M8303-000 |
— | ||
|
11
|
11
03141-M0612-300
Screw
|
03141-M0612-300 |
— | ||
|
12
|
12
73811-M8300-000
Cap, instrument no.1
|
73811-M8300-000 |
— | ||
|
13
|
13
73831-83000-5ES
Cap, instrument no.2
|
73831-83000-5ES |
— | ||
| replacement | |||||
|
13
|
13
73831-83000-55Y CAP,INSTPNL,NO.2,L |
73831-83000-55Y |
US $7.40 |
||
|
14
|
14
73814-M8300-000
Molding, instrument upper
|
73814-M8300-000 |
— | ||
|
15
|
15
73817-83000-5ES
Molding, side lh
|
73817-83000-5ES |
— | ||
| replacement | |||||
|
15
|
15
73817-83000-55Y MOLDING,I/P SIDE,L |
73817-83000-55Y |
US $4.49 |
||
|
16
|
16
73819-M8300-000
Plug, pad hole
|
73819-M8300-000 |
— | ||
|
17
|
17
02142-M0616-600
Screw
|
02142-M0616-600 |
— | ||
|
18
|
18
73815-M8300-000
Holder, upper mole
|
73815-M8300-000 |
— | ||
|
19
|
19
73823-83010-5ES
Joint, molding
|
73823-83010-5ES |
— | ||
| replacement | |||||
|
19
|
19
73823-83010-55Y JOINT,I/P MOLDING |
73823-83010-55Y |
US $4.60 |
||
|
20
|
20
73822-M8300-000
Stopper, instrument
|
73822-M8300-000 |
— | ||
|
21
|
21
03141-M0410-300
Screw
|
03141-M0410-300 |
— | ||
|
22
|
22
73675-83020-281
Lid, side defroster hole
|
73675-83020-281 |
— | ||
| replacement | |||||
|
22
|
22
73675-83020-5PK LID,SIDE DEFROSTER HOLE |
73675-83020-5PK |
US $4.49 |
||
