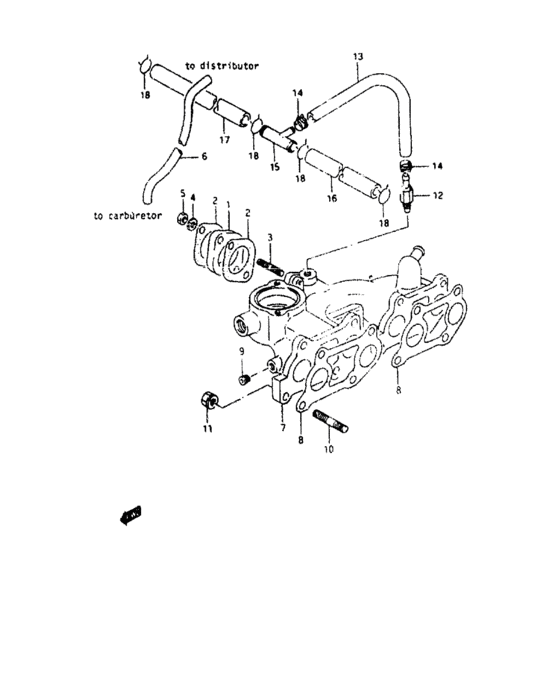

Intake manifold (INTAKE MANIFOLD) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13121-M8000-000
Insulator, carburetor
|
13121-M8000-000 |
— | ||
|
2
|
2
13125-M8003-000
Gasket, carburetor
|
13125-M8003-000 |
— | ||
|
3
|
3
09108-08168-000
Goujon fix corburate
|
09108-08168-000 |
— | ||
| replacement | |||||
|
3
|
3
01421-0835A-000 BOLT,STUDStud bolt (8x35) |
01421-0835A-000 |
from US $1.44 |
||
|
4
|
4
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
5
|
5
08310-M1108-600
Nut
|
08310-M1108-600 |
— | ||
|
7
|
7
13110-M8005-000
Manifold, intake
|
13110-M8005-000 |
— | ||
|
8
|
8
13119-M7304-100
Gasket, intake manifold
|
13119-M7304-100 |
— | ||
|
9
|
9
09246-M0400-200
Plug
|
09246-M0400-200 |
— | ||
|
10
|
10
01411-M0820-600
Stud bolt
|
01411-M0820-600 |
— | ||
|
11
|
11
08316-M1608-600
Nut
|
08316-M1608-600 |
— | ||
|
12
|
12
18118-M8002-000
Valve, pcv
|
18118-M8002-000 |
— | ||
|
13
|
13
11193-M8000-000
Hose, pcv
|
11193-M8000-000 |
— | ||
|
14
|
14
09401-M1340-400
Clamp
|
09401-M1340-400 |
— | ||
|
15
|
15
09367-M1400-200
<- way, pcv
|
09367-M1400-200 |
— | ||
|
16
|
16
11191-M7810-000
Hose, breather
|
11191-M7810-000 |
— | ||
|
17
|
17
11191-M8000-000
Hose, breather
|
11191-M8000-000 |
— | ||
|
18
|
18
09401-M1830-400
Clamp
|
09401-M1830-400 |
— | ||
