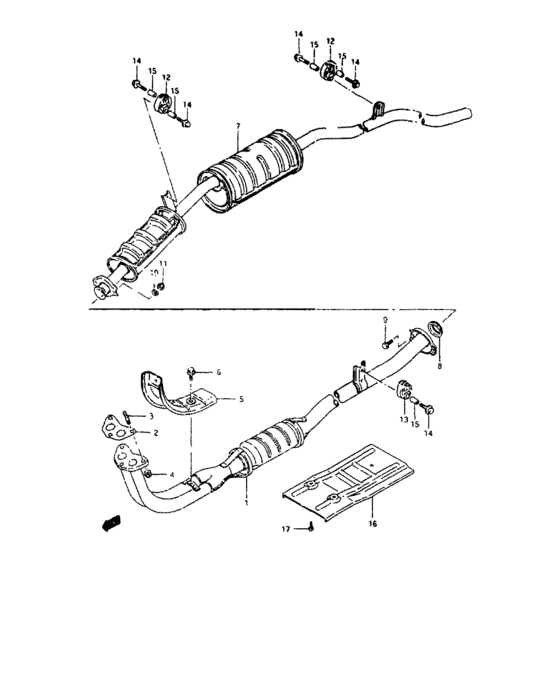

Muffler (MUFFLER) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14150-80041-000
Pipe, exhaust center
|
14150-80041-000 |
— | ||
| replacement | |||||
|
1
|
1
14150-8004V-000 PIPE,EXH CENTER |
14150-8004V-000 |
US $147.57 |
||
|
2
|
2
14181-M8004-000
Gasket, ceater pipe
|
14181-M8004-000 |
— | ||
|
3
|
3
01411-M1025-300
Stud bolt
|
01411-M1025-300 |
— | ||
|
4
|
4
09159-M1001-700
Nut
|
09159-M1001-700 |
— | ||
|
5
|
5
14220-80000-000
COVER,EXHAUST PIPE
|
14220-80000-000 |
— | ||
|
6
|
6
01514-M0610-600
Screw
|
01514-M0610-600 |
— | ||
|
7
|
7
14300-80301-000
Muffler
|
14300-80301-000 |
— | ||
| replacement | |||||
|
7
|
7
14300-8030V-000 MUFFLER |
14300-8030V-000 |
US $137.63 |
||
|
9
|
9
01104-M0825-600
Bolt
|
01104-M0825-600 |
— | ||
|
10
|
10
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
11
|
11
09159-M0802-200
Nut
|
09159-M0802-200 |
— | ||
|
12
|
12
14209-M7901-000
Mounting set, muffler
|
14209-M7901-000 |
— | ||
|
13
|
13
14011-M7900-000
Mounting set, exhaust pipe
|
14011-M7900-000 |
— | ||
|
14
|
14
01514-M0835-600
Bolt
|
01514-M0835-600 |
— | ||
|
15
|
15
09180-M0809-500
Spacer
|
09180-M0809-500 |
— | ||
|
16
|
16
14231-M8001-000
Panel, heat protector
|
14231-M8001-000 |
— | ||
|
17
|
17
03141-M0612-300
Screw
|
03141-M0612-300 |
— | ||
