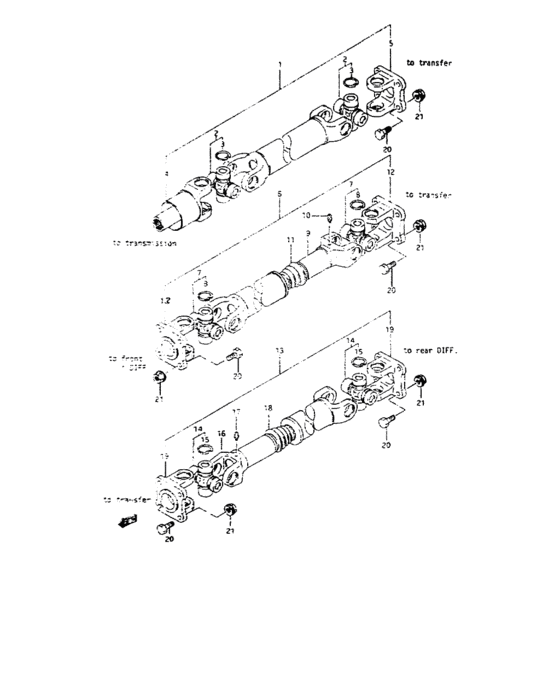

Propeller shaft (PROPELLER SHAFT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
08311-41256-000
Circlip
|
08311-41256-000 |
— | ||
|
4
|
4
27140-83001-000 YOKE,SLIDING |
27140-83001-000 |
US $122.37 |
||
|
5
|
5
27131-83001-000 YOKE,CROSS JOINT FLANGE |
27131-83001-000 |
US $52.62 |
||
|
6
|
6
27102-M8040-100
Shaft assy, propeller no.2
FOR N/TREAD |
27102-M8040-100 |
— | ||
|
6
|
6
27102-M8300-100
Shaft assy, propeller no.2
FOR W/TREAD |
27102-M8300-100 |
— | ||
|
7
|
7
27200-83810-000
ジョイントアッシ,ユニバーサル
|
27200-83810-000 |
— | ||
| replacements | |||||
|
7
|
7
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
|
7
|
7
27200-83813-000 Joint Set,universal |
27200-83813-000 |
US $57.60 |
||
|
8
|
8
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
8
|
8
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
9
|
9
27180-83001-000 YOKE,SLIDING |
27180-83001-000 |
US $148.96 |
||
|
10
|
10
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
10
|
10
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
11
|
11
27153-83000-000
ブーツ,プロペラシャフト
|
27153-83000-000 |
— | ||
| replacements | |||||
|
11
|
11
27153-83001-000
BOOT,PROPELLER SHAFT
|
27153-83001-000 |
— | ||
|
11
|
11
27153-77R00-000 Boot,propeller Shaft |
27153-77R00-000 |
US $10.08 |
||
|
12
|
12
27131-83001-000 YOKE,CROSS JOINT FLANGE |
27131-83001-000 |
US $52.62 |
||
|
13
|
13
27103-M8045-100
Shaft assy, propeller no.3
FOR N/TREAD |
27103-M8045-100 |
— | ||
|
13
|
13
27103-M8320-100
Shaft assy, propeller no.3
FOR W/TREAD |
27103-M8320-100 |
— | ||
|
14
|
14
27200-83810-000
ジョイントアッシ,ユニバーサル
|
27200-83810-000 |
— | ||
| replacements | |||||
|
14
|
14
27200-83812-000
JOINT SET,UNIVERSAL
|
27200-83812-000 |
— | ||
|
14
|
14
27200-83813-000 Joint Set,universal |
27200-83813-000 |
US $57.60 |
||
|
15
|
15
08331-41256-000
サークリップ
|
08331-41256-000 |
— | ||
| replacement | |||||
|
15
|
15
51118-36213-000 RING,SNAP |
51118-36213-000 |
from US $2.24 |
||
|
16
|
16
27180-83001-000 YOKE,SLIDING |
27180-83001-000 |
US $148.96 |
||
|
17
|
17
08351-21008-000
Grease nipple
|
08351-21008-000 |
— | ||
| replacement | |||||
|
17
|
17
08351-2100A-000 NIPPLE |
08351-2100A-000 |
from US $2.40 |
||
|
18
|
18
27153-83000-000
ブーツ,プロペラシャフト
|
27153-83000-000 |
— | ||
| replacements | |||||
|
18
|
18
27153-83001-000
BOOT,PROPELLER SHAFT
|
27153-83001-000 |
— | ||
|
18
|
18
27153-77R00-000 Boot,propeller Shaft |
27153-77R00-000 |
US $10.08 |
||
|
19
|
19
27131-60A01-000
ヨーク,クロスジョイントフランジ
|
27131-60A01-000 |
— | ||
| replacement | |||||
|
19
|
19
27131-56B00-000 YOKE,CROSS JOINT FLANGE |
27131-56B00-000 |
US $55.94 |
||
|
20
|
20
09100-M0817-200
Bolt
|
09100-M0817-200 |
— | ||
|
21
|
21
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
