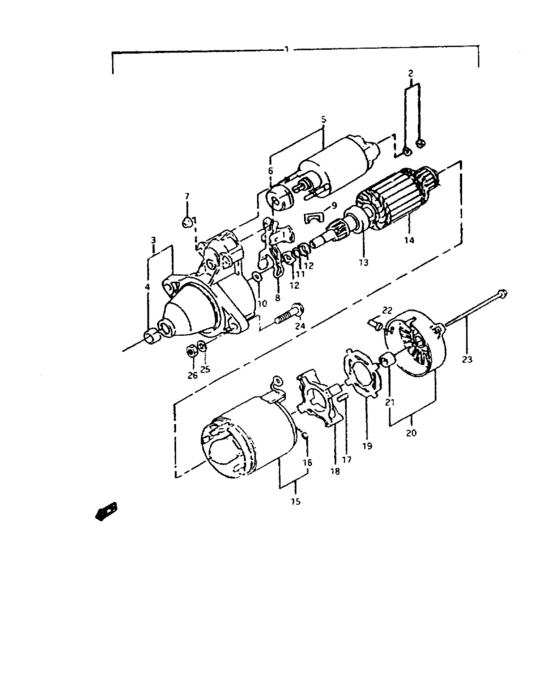

Starting motor (SRF ND) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-M7301-000
Starter motor assy
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
31100-M7301-000 |
— | ||
|
2
|
2
31155-M8101-000
Nut
|
31155-M8101-000 |
— | ||
|
3
|
3
31151-M7301-000
Housing assy, starter
|
31151-M7301-000 |
— | ||
|
4
|
4
31152-M7301-000
Bearing needle
|
31152-M7301-000 |
— | ||
|
5
|
5
31220-M7301-000
Switch assy
|
31220-M7301-000 |
— | ||
|
6
|
6
31221-M8101-000
Cover
|
31221-M8101-000 |
— | ||
|
7
|
7
31154-M8101-000
Nut
|
31154-M8101-000 |
— | ||
|
8
|
8
31191-M7301-000
Lever
|
31191-M7301-000 |
— | ||
|
9
|
9
31192-M8101-000
Seal
|
31192-M8101-000 |
— | ||
|
10
|
10
31262-M8101-000
Washer
|
31262-M8101-000 |
— | ||
|
11
|
11
31314-M8101-000
Ring, snap
|
31314-M8101-000 |
— | ||
|
12
|
12
31313-M8101-000
Nut, pinion stop
|
31313-M8101-000 |
— | ||
|
13
|
13
31320-M7301-000
Clutch assy
|
31320-M7301-000 |
— | ||
|
14
|
14
31311-M7301-000
Armature assy
|
31311-M7301-000 |
— | ||
|
15
|
15
31110-M7301-000
Yoke assy
|
31110-M7301-000 |
— | ||
|
16
|
16
31131-M8101-000
Brush
|
31131-M8101-000 |
— | ||
|
17
|
17
31135-M8101-000
Spring, brush
|
31135-M8101-000 |
— | ||
|
18
|
18
31173-M8101-000
Holder, brush
|
31173-M8101-000 |
— | ||
|
19
|
19
31174-M8101-000
Insulator
|
31174-M8101-000 |
— | ||
|
20
|
20
31170-M7301-000
Housing, commutator end
|
31170-M7301-000 |
— | ||
|
21
|
21
31171-M8101-000
Bearing, oilless
|
31171-M8101-000 |
— | ||
|
22
|
22
31172-M7301-000
Cover
|
31172-M7301-000 |
— | ||
|
23
|
23
31261-M8101-000
Bolt
|
31261-M8101-000 |
— | ||
|
24
|
24
01517-08506-000
Bolt 8x50
|
01517-08506-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
25
|
25
08321-M3108-600
Lock washer
|
08321-M3108-600 |
— | ||
|
26
|
26
08310-M1108-600
Nut
|
08310-M1108-600 |
— | ||
