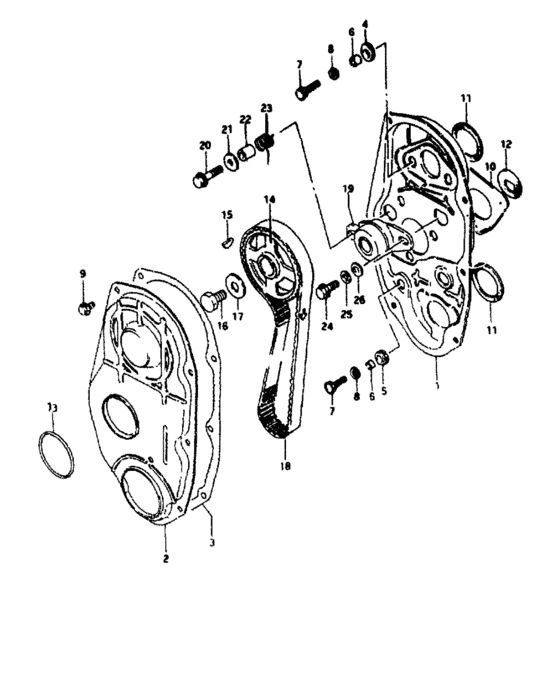

Timing belt (TIMING BELT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11380-M7810-200
Cover, inside
|
11380-M7810-200 |
— | ||
|
2
|
2
11391-M7300-300
Cover, outside
|
11391-M7300-300 |
— | ||
|
3
|
3
11399-M7301-000
Gasket, cover
|
11399-M7301-000 |
— | ||
|
4
|
4
11398-M7300-000
Grommet, no.1
|
11398-M7300-000 |
— | ||
|
5
|
5
09308-M1000-400
Grommet, no.2
|
09308-M1000-400 |
— | ||
|
6
|
6
09180-M0610-600
Spacer
|
09180-M0610-600 |
— | ||
|
7
|
7
01107-M0616-600
Bolt
|
01107-M0616-600 |
— | ||
|
8
|
8
09160-M0602-700
Washer
|
09160-M0602-700 |
— | ||
|
9
|
9
01514-M0610-600
Screw
|
01514-M0610-600 |
— | ||
|
10
|
10
11482-M7300-400
Seal, cushion no.2
|
11482-M7300-400 |
— | ||
|
11
|
11
11483-M7300-100
Seal, cushion no.3
|
11483-M7300-100 |
— | ||
|
12
|
12
11485-M7300-000
Seal, cushion no.4
|
11485-M7300-000 |
— | ||
|
13
|
13
11484-M7300-000
Grommet, outside
|
11484-M7300-000 |
— | ||
|
14
|
14
12741-M7841-000
Pulley, timing bolt
|
12741-M7841-000 |
— | ||
|
15
|
15
08341-M3105-900
Key
|
08341-M3105-900 |
— | ||
|
16
|
16
01107-M1225-600
Bolt
|
01107-M1225-600 |
— | ||
|
17
|
17
09160-M1204-300
Washer
|
09160-M1204-300 |
— | ||
|
18
|
18
12761-N7840-000
Bolt, timing
|
12761-N7840-000 |
— | ||
|
18
|
18
12761-78400-000
BELT,TIMING
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
12761-78400-000 |
— | ||
|
19
|
19
12810-M8402-000
Tenaioner, timing belt
|
12810-M8402-000 |
— | ||
|
19
|
19
12810-84000-000
テンショナアッシ,タイミングベルト
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
12810-84000-000 |
— | ||
| replacement | |||||
|
19
|
19
12810-53A00-000 TENSIONER ASSY,TIMING BELTGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
12810-53A00-000 |
US $72.80 |
||
|
20
|
20
01517-M0840-600
Bolt
|
01517-M0840-600 |
— | ||
|
21
|
21
09160-M0807-500
Washer
|
09160-M0807-500 |
— | ||
|
22
|
22
09180-M0811-100
Spacer
|
09180-M0811-100 |
— | ||
|
23
|
23
12821-M7810-000
Spring, tenasioner
|
12821-M7810-000 |
— | ||
|
24
|
24
01517-M0825-600
Bolt
|
01517-M0825-600 |
— | ||
|
25
|
25
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
26
|
26
09160-M0803-300
Washer
|
09160-M0803-300 |
— | ||
