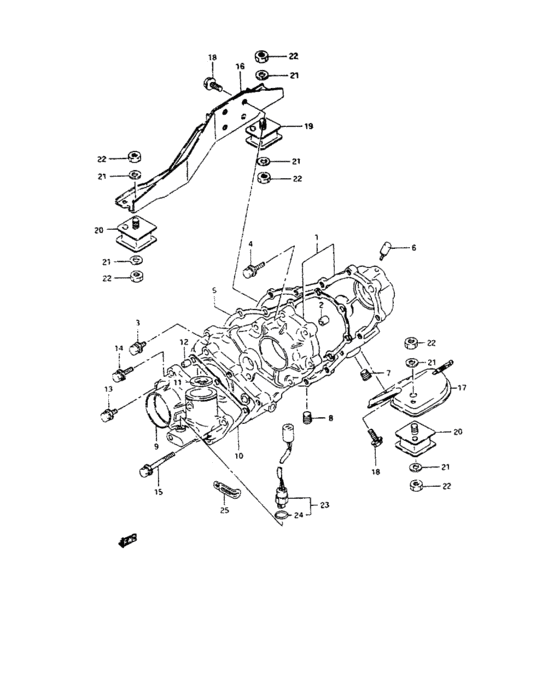

Transfer case (TRANSFER CASE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29510-80053-000
ケースアッシ,トランスファ
|
29510-80053-000 |
— | ||
| replacement | |||||
|
1
|
1
29510-83050-000 CASE ASSY,T/F |
29510-83050-000 |
US $366.91 |
||
|
2
|
2
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
US $1.82 |
||
|
3
|
3
01987-08303-000
Bolt, no.1
|
01987-08303-000 |
— | ||
| replacement | |||||
|
3
|
3
01580-0830A-000 BOLT |
01580-0830A-000 |
from US $5.88 |
||
|
4
|
4
01987-08403-000
Bolt, no.2
|
01987-08403-000 |
— | ||
| replacement | |||||
|
4
|
4
01580-0840A-000 Bolt |
01580-0840A-000 |
from US $3.33 |
||
|
5
|
5
29525-80050-000 GASKET,T/F CASE CENTER |
29525-80050-000 |
US $2.24 |
||
|
6
|
6
29515-80050-000 PLUG,T/F BREATHER |
29515-80050-000 |
US $3.52 |
||
|
7
|
7
29945-80050-000
PLUG,T/F OIL FILLER
|
29945-80050-000 |
— | ||
|
8
|
8
29946-80051-000 PLUG,OIL DRAIN |
29946-80051-000 |
US $5.28 |
||
|
9
|
9
29530-80050-000
Carter avant
|
29530-80050-000 |
— | ||
| replacement | |||||
|
9
|
9
29530-80051-000 CASE,T/F,FR |
29530-80051-000 |
US $241.60 |
||
|
10
|
10
29535-80050-000 GASKET,T/F CASE FR |
29535-80050-000 |
US $1.60 |
||
|
11
|
11
29540-80050-000
Siege espherique
|
29540-80050-000 |
— | ||
| replacement | |||||
|
11
|
11
29541-80051-000 SHEET,T/F SHIFT BALL |
29541-80051-000 |
US $12 |
||
|
12
|
12
29527-80050-000 PIN,T/F CASE KNOCK |
29527-80050-000 |
US $1.82 |
||
|
13
|
13
01987-08303-000
Bolt, no.1
|
01987-08303-000 |
— | ||
| replacement | |||||
|
13
|
13
01580-0830A-000 BOLT |
01580-0830A-000 |
from US $5.88 |
||
|
14
|
14
01987-08403-000
Bolt, no.2
|
01987-08403-000 |
— | ||
| replacement | |||||
|
14
|
14
01580-0840A-000 Bolt |
01580-0840A-000 |
from US $3.33 |
||
|
15
|
15
01987-08803-000
ボルト
|
01987-08803-000 |
— | ||
| replacement | |||||
|
15
|
15
09117-08093-000 BOLT(8X80) |
09117-08093-000 |
US $32.80 |
||
|
16
|
16
29620-83000-000 BRACKET,T/F MOUNTING,R |
29620-83000-000 |
US $22.82 |
||
|
17
|
17
29630-83000-000
ブラケット,トランスファマウンチング,レフト
|
29630-83000-000 |
— | ||
| replacement | |||||
|
17
|
17
29630-800V0-000 BRACKET,T/F MOUNTING,L |
29630-800V0-000 |
US $11.92 |
||
|
18
|
18
01517-M0820-600
Bolt
|
01517-M0820-600 |
— | ||
|
19
|
19
29650-M8300-100
Mounting, rh rear
|
29650-M8300-100 |
— | ||
|
20
|
20
29610-M8300-100
Mounting, rh front & lh
|
29610-M8300-100 |
— | ||
|
21
|
21
08321-M3110-600
Lock washer
|
08321-M3110-600 |
— | ||
|
22
|
22
08310-M1210-300
Nut
|
08310-M1210-300 |
— | ||
|
23
|
23
37620-80000-000 SWITCH ASSYFOR N/TREAD |
37620-80000-000 |
US $78.40 |
||
|
23
|
23
37680-80002-000 SWITCH ASSY,4WDFOR W/TREAD |
37680-80002-000 |
US $32 |
||
|
24
|
24
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
US $1.52 |
||
|
25
|
25
09404-08413-000
Alternator w cl
|
09404-08413-000 |
— | ||
| replacement | |||||
|
25
|
25
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
