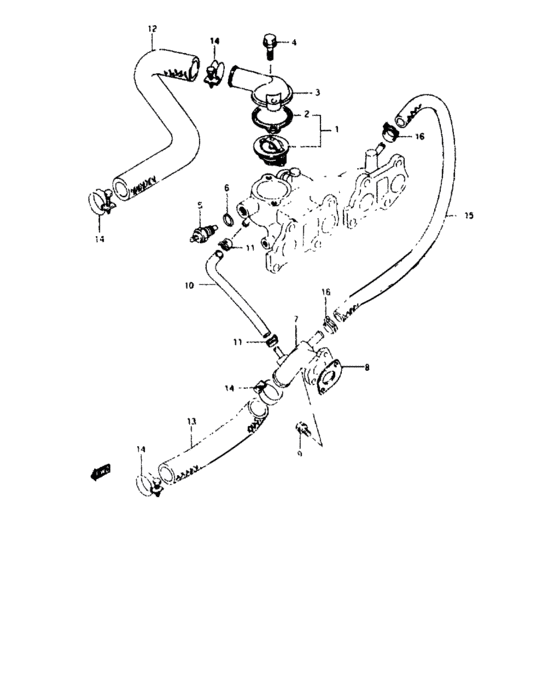

Water hose (WATER HOSE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
17569-M8001-100
Gasket, cap
|
17569-M8001-100 |
— | ||
|
3
|
3
17561-M7300-000
Cap, thermostat
|
17561-M7300-000 |
— | ||
|
4
|
4
01514-M0825-600
Bolt
|
01514-M0825-600 |
— | ||
|
5
|
5
34850-M6501-100
Gauge, water temperature
|
34850-M6501-100 |
— | ||
|
5
|
5
34850-65011-000 GAUGE ASSY,WATER TEMPGeneral, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
34850-65011-000 |
from US $25.60 |
||
|
6
|
6
09280-M1400-400
O ring
|
09280-M1400-400 |
— | ||
|
7
|
7
17550-M8000-000
Pipe, water inlet
|
17550-M8000-000 |
— | ||
|
8
|
8
17559-M7101-100
Gasket, pipe
|
17559-M7101-100 |
— | ||
|
9
|
9
01514-M0620-600
Rolt
|
01514-M0620-600 |
— | ||
|
10
|
10
17859-M7000-000
Hose, water bypass
|
17859-M7000-000 |
— | ||
|
11
|
11
09401-M1140-800
Clip
|
09401-M1140-800 |
— | ||
|
12
|
12
17841-M8000-000
Hose, radiator inlet
|
17841-M8000-000 |
— | ||
|
13
|
13
17851-M8000-000
Hose, radiator outlet
|
17851-M8000-000 |
— | ||
|
14
|
14
09400-M3631-100
Clamp
|
09400-M3631-100 |
— | ||
|
15
|
15
17874-M8000-000
Hose, heatet
|
17874-M8000-000 |
— | ||
|
16
|
16
09400-M2231-300
Clip
|
09400-M2231-300 |
— |
