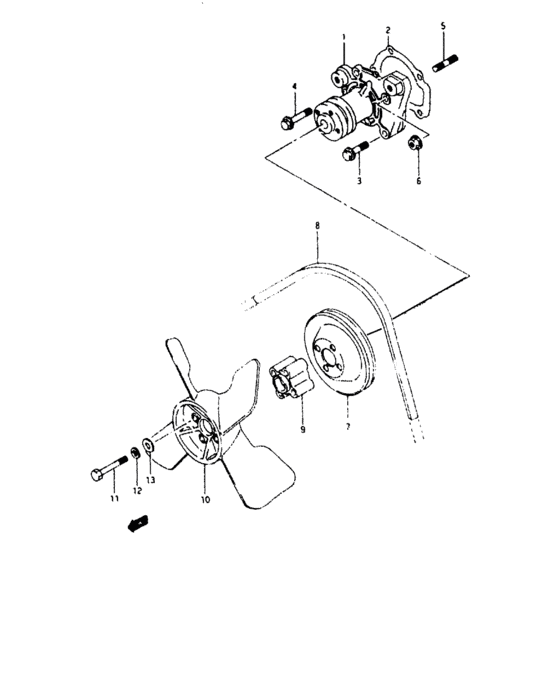

Water pump (WATER PUMP) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-M7831-100
Pump assy, water
|
17400-M7831-100 |
— | ||
|
1
|
1
17400-M7821-100
Pump assy, water
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
17400-M7821-100 |
— | ||
|
2
|
2
17431-M7301-100
Gasket, water pump
|
17431-M7301-100 |
— | ||
|
3
|
3
01517-M0630-600
Bolt
|
01517-M0630-600 |
— | ||
|
4
|
4
01517-M0640-600
Bolt
|
01517-M0640-600 |
— | ||
|
5
|
5
01411-M0625-300
Stud bolt
|
01411-M0625-300 |
— | ||
|
6
|
6
08316-M1606-600
Nut
|
08316-M1606-600 |
— | ||
|
7
|
7
17511-M7710-000
Pulley, water pump
|
17511-M7710-000 |
— | ||
|
8
|
8
17521-M7151-000
Belt, water pump
|
17521-M7151-000 |
— | ||
|
9
|
9
17131-M8000-100
Hub, cooling fan
|
17131-M8000-100 |
— | ||
|
10
|
10
17111-M7300-000
Fan, cooling
|
17111-M7300-000 |
— | ||
|
11
|
11
01107-M0650-300
Bolt
|
01107-M0650-300 |
— | ||
|
12
|
12
08321-M3106-300
Lock washer
|
08321-M3106-300 |
— | ||
|
13
|
13
08322-M2106-800
Washer
|
08322-M2106-800 |
— |
