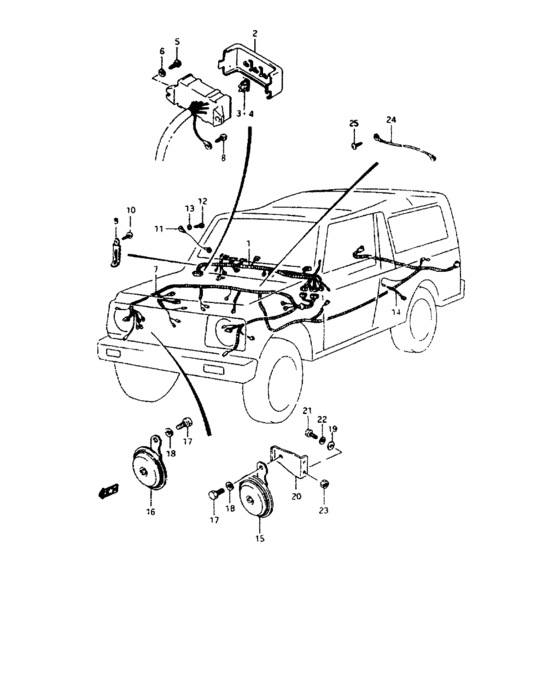

Wiring harness (WIRING HARNESS) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- Pacific
- grade
- STD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-M8300-300
Harness assy, wiring no.1
RHD |
36610-M8300-300 |
— | ||
|
1
|
1
36610-83012-000
Harness, wiring no. 1
LHD |
36610-83012-000 |
— | ||
|
2
|
2
36717-M8002-100
Cover, fuse box
|
36717-M8002-100 |
— | ||
|
3
|
3
09481-10101-000 FUSE(10A) |
09481-10101-000 |
from US $1.28 |
||
|
4
|
4
09481-15101-000 FUSE(15A)Fuse (15a) |
09481-15101-000 |
from US $1.28 |
||
|
5
|
5
03141-M0512-300
Screw
|
03141-M0512-300 |
— | ||
|
6
|
6
08322-M2106-600
Washer
|
08322-M2106-600 |
— | ||
|
7
|
7
36620-M8030-500
Harness assy, wiring no.2
RHD |
36620-M8030-500 |
— | ||
|
7
|
7
36620-80324-000
Harness assy, wiring no.2
LHD |
36620-80324-000 |
— | ||
|
8
|
8
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
9
|
9
09404-M0640-400
Clamp, harness no.1
|
09404-M0640-400 |
— | ||
|
10
|
10
03141-M0512-300
Screw
|
03141-M0512-300 |
— | ||
|
11
|
11
36821-M8000-000
Wire, window earth lead
|
36821-M8000-000 |
— | ||
|
12
|
12
03141-M0512-300
Screw
|
03141-M0512-300 |
— | ||
|
13
|
13
08322-M2106-600
Washer
|
08322-M2106-600 |
— | ||
|
14
|
14
36822-M8000-100
Wire, fuel gauge lead
|
36822-M8000-100 |
— | ||
|
15
|
15
38500-M7806-400
Horn assy, high
|
38500-M7806-400 |
— | ||
|
16
|
16
38500-M7805-400
Horn assy, low
|
38500-M7805-400 |
— | ||
|
16
|
16
38500-M7802-000
Horn assy
General, Bangladesh, Sri Lanka, Malta, ECE3 (Finland, Norway, Sweden, EC, Holland, Austria, Spain) |
38500-M7802-000 |
— | ||
|
17
|
17
01104-M0812-600
Bolt
|
01104-M0812-600 |
— | ||
|
18
|
18
08321-M3106-300
Lock washer
|
08321-M3106-300 |
— | ||
|
19
|
19
08322-M2106-600
Washer
|
08322-M2106-600 |
— | ||
|
20
|
20
38570-M8300-100
Bracket, horn
|
38570-M8300-100 |
— | ||
|
21
|
21
01104-M0612-600
Bolt, front fender
|
01104-M0612-600 |
— | ||
|
22
|
22
08321-M3108-300
Washer lock
|
08321-M3108-300 |
— | ||
|
23
|
23
08310-M2206-600
Nut
|
08310-M2206-600 |
— | ||
|
24
|
24
39312-M8000-000
Wire, noise suppresser
|
39312-M8000-000 |
— | ||
|
25
|
25
03141-M0612-300
Screw
|
03141-M0612-300 |
— |
