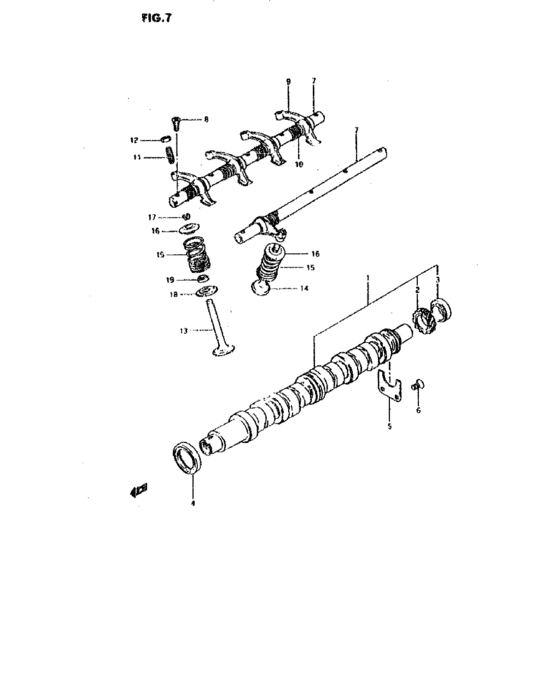

Arbre a cames (ARBRE A CAMES) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-80002-000
Cam shaft assy
|
12710-80002-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-80005-000 CAMSHAFT |
12710-80005-000 |
US $432.96 |
||
|
2
|
2
12721-73000-000 GEAR,DISTRIBUTOR DRIVE NT:13 |
12721-73000-000 |
US $39.74 |
||
|
3
|
3
12731-73001-000 CAM,FUEL PUMP |
12731-73001-000 |
US $19.87 |
||
|
4
|
4
09283-32022-000
オイルシール,32X47X8
|
09283-32022-000 |
— | ||
| replacement | |||||
|
4
|
4
09283-32042-000 SEAL,OIL(32X47X6) |
09283-32042-000 |
from US $8.03 |
||
|
5
|
5
12749-73001-000
プレート,カムシャフトスラスト
|
12749-73001-000 |
— | ||
| replacement | |||||
|
5
|
5
12749-73002-000 PLATE,CAMSHAFT THRUST |
12749-73002-000 |
US $7.20 |
||
|
6
|
6
02122-06128-000
Screw
|
02122-06128-000 |
— | ||
| replacement | |||||
|
6
|
6
02122-06127-000 SCREW |
02122-06127-000 |
from US $0.80 |
||
|
7
|
7
12860-A7300-400
Axe culbuteurs
|
12860-A7300-400 |
— | ||
|
8
|
8
02122-06166-000
Screw
|
02122-06166-000 |
— | ||
| replacements | |||||
|
8
|
8
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
8
|
8
02122-0616A-000 SCREW |
02122-0616A-000 |
from US $0.76 |
||
|
9
|
9
12841-73002-000
Culbuteur
|
12841-73002-000 |
— | ||
| replacements | |||||
|
9
|
9
12841-77300-000 ARM,VALVE ROCKER |
12841-77300-000 |
US $26.50 |
||
|
9
|
9
12841-60C00-000 ARM,VALVE ROCKER |
12841-60C00-000 |
US $26.50 |
||
|
10
|
10
12891-73001-000
スプリング,ロッカアーム
|
12891-73001-000 |
— | ||
| replacement | |||||
|
10
|
10
12891-51G00-000 SPRING,ROCKER ARMSpring, rocket arm |
12891-51G00-000 |
US $1.60 |
||
|
11
|
11
12848-A7301-000
Vis reglage
|
12848-A7301-000 |
— | ||
|
12
|
12
09159-07002-000 NUT |
09159-07002-000 |
US $18 |
||
|
13
|
13
12911-C7810-000
Soupape admision
|
12911-C7810-000 |
— | ||
|
14
|
14
12915-C7300-200
Souppape echappement
|
12915-C7300-200 |
— | ||
|
15
|
15
12921-73002-000 SPRING,VALVE |
12921-73002-000 |
US $7.52 |
||
|
16
|
16
12931-82000-000
リテーナ,バルブスプリング
|
12931-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
12900-82811-000 RETAINER SET,COTTER VALVE |
12900-82811-000 |
US $6.88 |
||
|
17
|
17
12932-82000-000 COTTER,VALVE |
12932-82000-000 |
from US $1.52 |
||
|
18
|
18
12933-73000-000 SEAT,VALVE SPRINGSeat, valve spring |
12933-73000-000 |
US $1.60 |
||
|
19
|
19
09289-07005-000
オイルシール
|
09289-07005-000 |
— | ||
| replacement | |||||
|
19
|
19
09289-07007-000 SEAL,OIL(6.5X14.5X9.7)Seal |
09289-07007-000 |
from US $3.69 |
||
