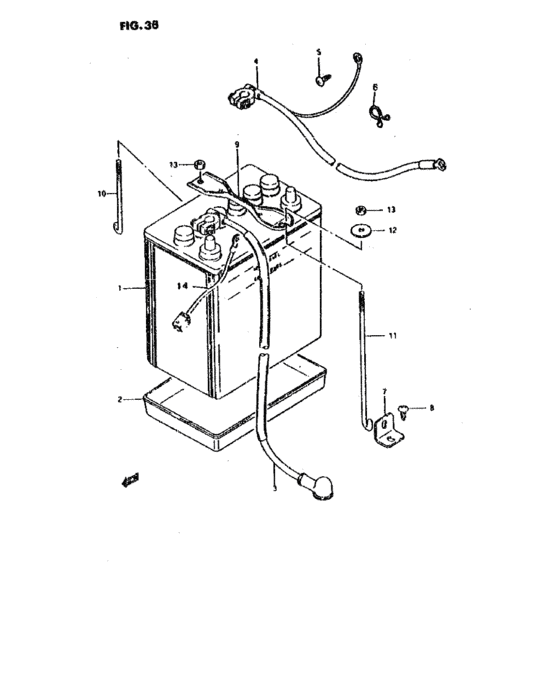

Batterie (BATTERIE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
00000-A0048-900
55a tudor battery
|
00000-A0048-900 |
— | ||
|
2
|
2
33661-A5102-000
Plateau batterie
|
33661-A5102-000 |
— | ||
|
3
|
3
33810-A8001-000
Cable demarrage
|
33810-A8001-000 |
— | ||
|
4
|
4
33850-A8001-000
Cable masse
|
33850-A8001-000 |
— | ||
|
5
|
5
09129-06002-000 SCREW(6X12) |
09129-06002-000 |
US $0.96 |
||
|
6
|
6
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) |
09408-00012-000 |
from US $3.37 |
||
|
7
|
7
72525-80001-000 STAY,BATTERY BOLT |
72525-80001-000 |
US $3.36 |
||
|
8
|
8
02142-06106-000
Screw
|
02142-06106-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
8
|
8
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
9
|
9
72511-A7800-000
Battery band
|
72511-A7800-000 |
— | ||
|
10
|
10
72521-80000-000
Vis batterie
|
72521-80000-000 |
— | ||
| replacement | |||||
|
10
|
10
72521-80001-000 BOLT,BATTERY |
72521-80001-000 |
US $1.60 |
||
|
11
|
11
63461-70400-000
Bolt, battery
|
63461-70400-000 |
— | ||
| replacement | |||||
|
11
|
11
63461-80000-000 BOLT,BATTERY |
63461-80000-000 |
from US $2.72 |
||
|
12
|
12
09160-05013-000 WASHER(5.2X16X1)Washer |
09160-05013-000 |
from US $0.76 |
||
|
13
|
13
08310-T1105-600
Ecrou
|
08310-T1105-600 |
— | ||
|
14
|
14
36740-A8000-000
Cable fuse
|
36740-A8000-000 |
— | ||
