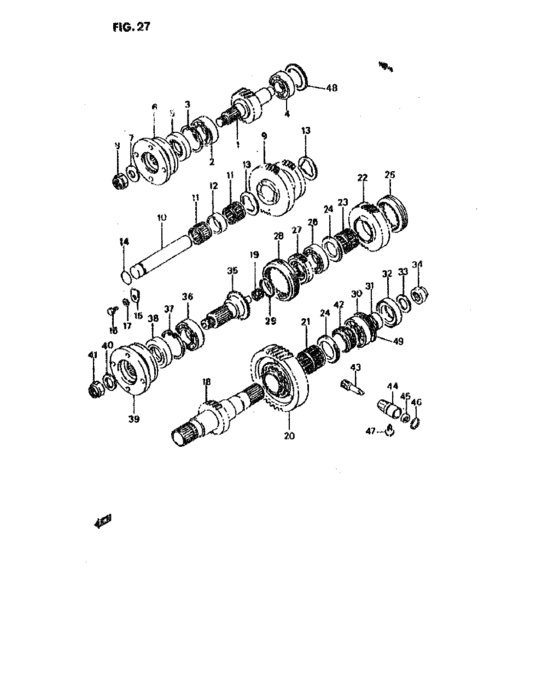

Boite de transfert (BOITE DE TRANSFERT) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29111-80450-000 SHAFT,T/F INPUT |
29111-80450-000 |
US $235.52 |
||
|
2
|
2
29981-80050-000 BEARING,T/F OUT SHAFT FR |
29981-80050-000 |
US $66.40 |
||
|
3
|
3
29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG |
29992-80050-000 |
from US $2.88 |
||
|
4
|
4
29982-80050-000 BEARING,T/F INPUT SHAFT RR |
29982-80050-000 |
US $60.80 |
||
|
5
|
5
29971-80050-000
Arretoir
|
29971-80050-000 |
— | ||
| replacement | |||||
|
5
|
5
29971-83050-000 SEAL,T/F INPUT SHAFT OIL |
29971-83050-000 |
from US $7.02 |
||
|
6
|
6
27110-83050-000
Bride complete
|
27110-83050-000 |
— | ||
| replacement | |||||
|
6
|
6
27110-83053-000 FLANGE,UNIVERSAL JOINT |
27110-83053-000 |
US $98.05 |
||
|
7
|
7
29955-80050-000
WASHER,T/F SHAFT
|
29955-80050-000 |
— | ||
|
8
|
8
29951-80050-000
Ecrou
|
29951-80050-000 |
— | ||
| replacement | |||||
|
8
|
8
29951-83050-000 NUT |
29951-83050-000 |
from US $7.52 |
||
|
9
|
9
29121-80050-000 GEAR,T/F COUNTER |
29121-80050-000 |
US $217.12 |
||
|
10
|
10
29131-80050-000
Arble intermedia.
|
29131-80050-000 |
— | ||
| replacement | |||||
|
10
|
10
29131-80051-000 SHAFT,T/F COUNTER |
29131-80051-000 |
from US $31.23 |
||
|
11
|
11
29983-80050-000 BEARING,T/F CTSHFT |
29983-80050-000 |
US $28.80 |
||
|
12
|
12
29962-80050-000 SPACER,T/F CTSHFT |
29962-80050-000 |
US $3.72 |
||
|
13
|
13
29956-A8005-000
Washer
|
29956-A8005-000 |
— | ||
|
14
|
14
29975-80050-000 O-RING,T/F CTSHFT |
29975-80050-000 |
US $1.60 |
||
|
15
|
15
29136-80050-000 PLATE,T/F COUNTER SHAFT |
29136-80050-000 |
US $1.60 |
||
|
16
|
16
01104-08163-000
Boulon
|
01104-08163-000 |
— | ||
|
17
|
17
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
18
|
18
29141-80050-000 SHAFT,T/F OUTPUT RR |
29141-80050-000 |
US $169.60 |
||
|
19
|
19
29986-80050-000 BEARING,T/F OUT SHAFT PILOT |
29986-80050-000 |
US $10.56 |
||
|
20
|
20
29211-80050-000 GEAR,T/F OUTPUT LOW |
29211-80050-000 |
US $175.90 |
||
|
21
|
21
29984-80050-000 BEARING,T/F OUT LOW GEAR |
29984-80050-000 |
US $24.80 |
||
|
22
|
22
29221-80050-000 GEAR,T/F OUTPUT HIGH |
29221-80050-000 |
US $214.40 |
||
|
23
|
23
29985-80050-000 BEARING,T/F OUT HIGH GEAR |
29985-80050-000 |
from US $19.46 |
||
|
24
|
24
29959-80050-000 WASHER,T/F OUTPUT GEAR |
29959-80050-000 |
US $10.24 |
||
|
25
|
25
29241-80050-000 SLEEVE,REDUCTION CLUTCH |
29241-80050-000 |
from US $62.32 |
||
|
26
|
26
08173-63060-000 BEARING |
08173-63060-000 |
US $16 |
||
|
27
|
27
29231-80050-000 HUB,FR DRIVE CLUTCH |
29231-80050-000 |
US $80.80 |
||
|
28
|
28
29241-80050-000 SLEEVE,REDUCTION CLUTCH |
29241-80050-000 |
from US $62.32 |
||
|
29
|
29
29911-80050-000 CIRCLIP,FR DR HUB |
29911-80050-000 |
US $1.60 |
||
|
30
|
30
29981-80050-000 BEARING,T/F OUT SHAFT FR |
29981-80050-000 |
US $66.40 |
||
|
31
|
31
29143-80050-000 RETAINER,OUTPUT SHAFT |
29143-80050-000 |
US $14.08 |
||
|
32
|
32
29972-80050-000 SEAL,OIL |
29972-80050-000 |
from US $6.26 |
||
|
33
|
33
29955-80050-000
WASHER,T/F SHAFT
|
29955-80050-000 |
— | ||
|
34
|
34
29951-80050-000
Ecrou
|
29951-80050-000 |
— | ||
| replacement | |||||
|
34
|
34
29951-83050-000 NUT |
29951-83050-000 |
from US $7.52 |
||
|
35
|
35
29151-80050-000
シャフト,トランスファアウトプツト,フロント
|
29151-80050-000 |
— | ||
| replacement | |||||
|
35
|
35
29151-80051-000 SHAFT,T/F OUTPUT FR |
29151-80051-000 |
US $157.60 |
||
|
36
|
36
29981-80050-000 BEARING,T/F OUT SHAFT FR |
29981-80050-000 |
US $66.40 |
||
|
37
|
37
29992-80050-000 CIRCLIP,T/F INPUT SHAFT BRG |
29992-80050-000 |
from US $2.88 |
||
|
38
|
38
29971-80050-000
Arretoir
|
29971-80050-000 |
— | ||
| replacement | |||||
|
38
|
38
29971-83050-000 SEAL,T/F INPUT SHAFT OIL |
29971-83050-000 |
from US $7.02 |
||
|
39
|
39
27110-83050-000
Bride complete
|
27110-83050-000 |
— | ||
| replacement | |||||
|
39
|
39
27110-83053-000 FLANGE,UNIVERSAL JOINT |
27110-83053-000 |
US $98.05 |
||
|
40
|
40
29955-80050-000
WASHER,T/F SHAFT
|
29955-80050-000 |
— | ||
|
41
|
41
29951-83050-000 NUT |
29951-83050-000 |
from US $7.52 |
||
|
42
|
42
29411-83050-000
Engrenage
|
29411-83050-000 |
— | ||
| replacement | |||||
|
42
|
42
29411-83051-000 GEAR,SPDOM DRIVE |
29411-83051-000 |
US $40.80 |
||
|
43
|
43
29421-80450-000
Engrenage conducteur
|
29421-80450-000 |
— | ||
| replacement | |||||
|
43
|
43
29421-80451-000 GEAR,SPDOM DRIVEN |
29421-80451-000 |
US $41.60 |
||
|
44
|
44
29431-80050-000
ケース,スピードメータドライブギヤ
|
29431-80050-000 |
— | ||
| replacements | |||||
|
44
|
44
29430-80810-000 CASE,SPEEDOMETER DRIVEN GEAR |
29430-80810-000 |
US $21.60 |
||
|
44
|
44
29977-80050-000 O-RING,SPDOM GEAR CASE NO.2 |
29977-80050-000 |
US $1.92 |
||
|
45
|
45
29973-80050-000 SEAL,SPDOM GEAR CASE OIL |
29973-80050-000 |
US $2.56 |
||
|
46
|
46
09280-19001-000 O RING(D:1.9,ID:18.8)O ring |
09280-19001-000 |
from US $1.60 |
||
|
47
|
47
09128-06032-000 SCREW(6X13.5) |
09128-06032-000 |
US $1.22 |
||
|
48
|
48
29119-80050-000
シム,トランスファインプットシャフト,T:0.5
|
29119-80050-000 |
— | ||
|
49
|
49
29149-80050-000
シム,トランスファアウトプツトシャフト,T:0.5
|
29149-80050-000 |
— | ||
