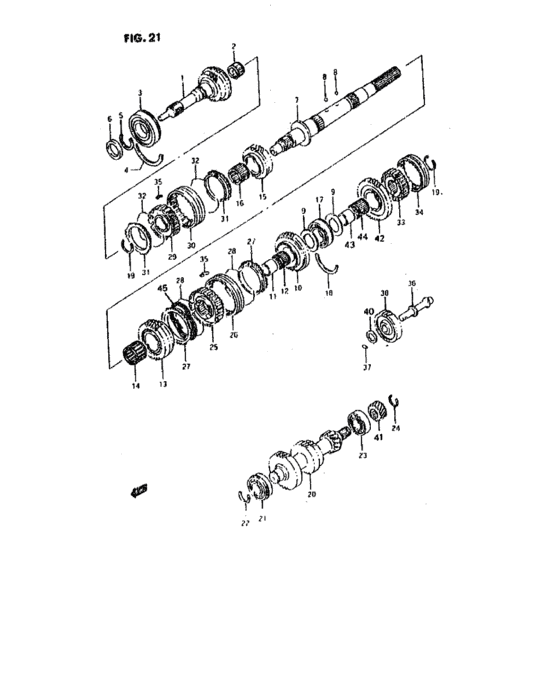

Boite de vitesses (BOITE DE VITESSES) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-80402-000
Shaft, input
|
24110-80402-000 |
— | ||
| replacement | |||||
|
1
|
1
24110-80410-000
SHAFT,T/M INPUT
|
24110-80410-000 |
— | ||
|
2
|
2
09263-20056-000 BEARING(20X26X17) |
09263-20056-000 |
from US $8.64 |
||
|
3
|
3
09262-28005-000 BEARING(28X68X18) |
09262-28005-000 |
from US $33.44 |
||
|
4
|
4
09390-68002-000 C RING |
09390-68002-000 |
from US $1.76 |
||
|
5
|
5
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
6
|
6
09283-25077-000
Joint
|
09283-25077-000 |
— | ||
| replacement | |||||
|
6
|
6
09283-25088-000 SEAL,OIL(25X38X6) |
09283-25088-000 |
from US $5.67 |
||
|
7
|
7
24121-83001-000
Shaft, main
|
24121-83001-000 |
— | ||
| replacement | |||||
|
7
|
7
24121-83002-000 SHAFT,T/M MAIN |
24121-83002-000 |
US $185.84 |
||
|
8
|
8
06111-06004-000
Ball
|
06111-06004-000 |
— | ||
| replacement | |||||
|
8
|
8
06111-06003-000 BALL |
06111-06003-000 |
from US $0.76 |
||
|
9
|
9
09166-30007-000 WASHER |
09166-30007-000 |
from US $5.24 |
||
|
10
|
10
24210-A8040-100
Engrenage de baise
|
24210-A8040-100 |
— | ||
|
11
|
11
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
12
|
12
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
13
|
13
24220-83000-000
Gear, mainshaft 2nd
|
24220-83000-000 |
— | ||
| replacement | |||||
|
13
|
13
24220-60A01-000 GEAR,MAIN SFT 2ND |
24220-60A01-000 |
US $176 |
||
|
14
|
14
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
15
|
15
24230-83000-000
Gear, mainshaft 3rd
|
24230-83000-000 |
— | ||
| replacement | |||||
|
15
|
15
24230-81A20-000 GEAR,MAIN SFT 3RD |
24230-81A20-000 |
from US $103.28 |
||
|
16
|
16
09263-30016-000
Bearing (30x35x26.8)
|
09263-30016-000 |
— | ||
| replacement | |||||
|
16
|
16
09263-30031-000 BEARING(30X35X26.8) |
09263-30031-000 |
from US $8.16 |
||
|
17
|
17
09262-30072-000
Bearing
|
09262-30072-000 |
— | ||
| replacement | |||||
|
17
|
17
09262-30086-000 BEARING(30X62X16) |
09262-30086-000 |
from US $24.32 |
||
|
18
|
18
09390-62010-000 C RING |
09390-62010-000 |
US $2.24 |
||
|
19
|
19
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
20
|
20
24131-80401-000
Shaft, counter
|
24131-80401-000 |
— | ||
| replacement | |||||
|
20
|
20
24131-80402-000
Shaft,t/m counter
|
24131-80402-000 |
— | ||
|
21
|
21
09262-28015-000
New Genuine Part
|
09262-28015-000 |
— | ||
| replacement | |||||
|
21
|
21
09262-28019-000 BEARING(28X58X16)B1 28x58x16 bearing m |
09262-28019-000 |
from US $23.56 |
||
|
22
|
22
09380-28007-000 RING,SNAP |
09380-28007-000 |
from US $1.80 |
||
|
23
|
23
09262-28006-000
Bearing, center
|
09262-28006-000 |
— | ||
| replacement | |||||
|
23
|
23
09262-28020-000 BEARING(28X58X16) |
09262-28020-000 |
US $19.76 |
||
|
24
|
24
09380-24004-000
Joint torique
|
09380-24004-000 |
— | ||
|
25
|
25
24411-83000-000
Moyeu synchron baise
|
24411-83000-000 |
— | ||
| replacement | |||||
|
25
|
25
24411-60A00-000
ハブ,シンクロナイザロースピード
|
24411-60A00-000 |
— | ||
|
26
|
26
24421-83004-000
Sleeve, cynchronizer low
|
24421-83004-000 |
— | ||
| replacement | |||||
|
26
|
26
24400-83002-000 HUB ASSY,LOW SPEED SYNC |
24400-83002-000 |
from US $112.19 |
||
|
27
|
27
24431-83001-000 RING,LOW SPEED SYNC |
24431-83001-000 |
from US $48.06 |
||
|
28
|
28
09388-80017-000
Ressort rappel cone
|
09388-80017-000 |
— | ||
|
29
|
29
24412-83000-000 Moyeu synchron haute |
24412-83000-000 |
from US $35.82 |
||
| replacement | |||||
|
29
|
29
24412-60A00-000
ハブ,シンクロナイザハイスピード
|
24412-60A00-000 |
— | ||
|
30
|
30
24422-83003-000
Sleeve, cynchronizer high
|
24422-83003-000 |
— | ||
| replacements | |||||
|
30
|
30
24410-83002-000 HUB ASSY,HIGH SPEED SYNC |
24410-83002-000 |
from US $77.40 |
||
|
30
|
30
24432-83001-000 RING,HIGH SPEED SYNC |
24432-83001-000 |
US $82.40 |
||
|
31
|
31
24432-83061-000
Cone synchro 3/4
|
24432-83061-000 |
— | ||
|
32
|
32
09388-00019-000 SPRING |
09388-00019-000 |
from US $1.98 |
||
|
33
|
33
24413-80400-000
Moyeu crabotage
|
24413-80400-000 |
— | ||
|
34
|
34
24423-80402-000
Sleeve, revarse drive
|
24423-80402-000 |
— | ||
| replacements | |||||
|
34
|
34
24420-81A23-000 HUB ASSY,5TH&REV |
24420-81A23-000 |
from US $86.33 |
||
|
34
|
34
24432-83001-000 RING,HIGH SPEED SYNC |
24432-83001-000 |
US $82.40 |
||
|
35
|
35
09422-05011-000
キー
|
09422-05011-000 |
— | ||
| replacement | |||||
|
35
|
35
24471-60A00-000 KEY,SYNC |
24471-60A00-000 |
US $1.73 |
||
|
36
|
36
24551-83000-000
Axe tendeur marche arriere
|
24551-83000-000 |
— | ||
| replacements | |||||
|
36
|
36
24551-83010-000 SHAFT,T/M REVERSE GEAR |
24551-83010-000 |
US $28.13 |
||
|
36
|
36
09380-17008-000 CIRCLIP |
09380-17008-000 |
US $1.92 |
||
|
37
|
37
09261-06003-000 PIN(6X10)Pin, drive shadft, r |
09261-06003-000 |
from US $1.06 |
||
|
38
|
38
24560-83001-000 GEAR,REV IDLE |
24560-83001-000 |
US $77.52 |
||
|
40
|
40
09166-15014-000
Rondelle
|
09166-15014-000 |
— | ||
|
41
|
41
24671-83000-000 GEAR,CTSHFT REV |
24671-83000-000 |
US $41.04 |
||
|
42
|
42
24681-83000-000
ギヤ,メインシャフトリバース
|
24681-83000-000 |
— | ||
| replacement | |||||
|
42
|
42
24681-81A41-000 GEAR, MAIN SHAFT REVERSE |
24681-81A41-000 |
US $88.93 |
||
|
43
|
43
09300-30003-000 BUSH(30X35X27.1) |
09300-30003-000 |
from US $7.74 |
||
|
44
|
44
09263-35015-000 BEARING(35X40X26.8) |
09263-35015-000 |
from US $10.79 |
||
|
45
|
45
24436-83000-000 SPRING,SYNC RING LOW |
24436-83000-000 |
US $7.84 |
||
