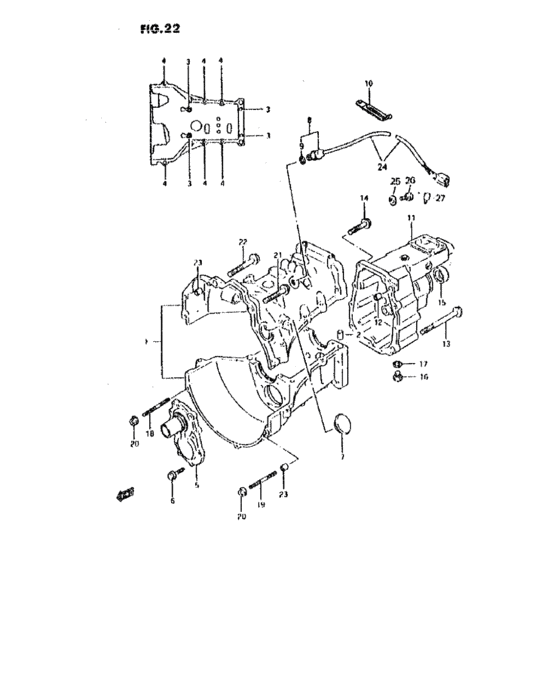

Carter boite (CARTER BOITE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-80400-000
CASE ASSY,T/M
|
24700-80400-000 |
— | ||
|
2
|
2
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
2
|
2
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
09103-08131-000 BOLT(8X120) |
09103-08131-000 |
US $2.24 |
||
|
4
|
4
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
24741-83000-000
Retainer, input shaft bearing
|
24741-83000-000 |
— | ||
| replacement | |||||
|
5
|
5
24741-83001-000 RETAINER,INPUT SFT BEARING |
24741-83001-000 |
US $45.60 |
||
|
6
|
6
09103-08130-000
BOLT(8X25)
|
09103-08130-000 |
— | ||
|
7
|
7
09250-26005-000 CAP(OD:36) |
09250-26005-000 |
US $6.56 |
||
|
8
|
8
37610-A8004-200
Contacteur ma
|
37610-A8004-200 |
— | ||
|
9
|
9
37610-B8004-200
Anne u torique
|
37610-B8004-200 |
— | ||
|
10
|
10
09404-A0641-500
Collier de serrage
|
09404-A0641-500 |
— | ||
|
11
|
11
24770-80420-000
Carter exten 5 vitas
|
24770-80420-000 |
— | ||
|
12
|
12
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
12
|
12
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
13
|
13
09103-08132-000
Bolt (8x100)
|
09103-08132-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-08230-000 BOLT(8X100)Bolt (8x100) |
09103-08230-000 |
US $1.76 |
||
|
14
|
14
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
14
|
14
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
15
|
15
24780-83010-000 SEAL,EXTENSION CASE OIL |
24780-83010-000 |
from US $5.74 |
||
|
16
|
16
09247-A1800-300
Bouchon v dange
|
09247-A1800-300 |
— | ||
|
17
|
17
09160-18018-000 WASHER(18X24X2)Washer (18x24x2) |
09160-18018-000 |
US $0.96 |
||
|
18
|
18
01421-10403-000
New Genuine Part
|
01421-10403-000 |
— | ||
| replacement | |||||
|
18
|
18
01421-1040A-000 BOLT,STUD |
01421-1040A-000 |
from US $1.52 |
||
|
19
|
19
01421-10503-000
Stud bolt (l:50)
|
01421-10503-000 |
— | ||
| replacement | |||||
|
19
|
19
01421-1050A-000 BOLT,STUD |
01421-1050A-000 |
from US $1.67 |
||
|
20
|
20
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
20
|
20
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
21
|
21
01517-10403-000
Vis
|
01517-10403-000 |
— | ||
|
22
|
22
01517-10453-000
Vis
|
01517-10453-000 |
— | ||
|
23
|
23
09206-13011-000
ノックピン,10.4X13X14
|
09206-13011-000 |
— | ||
| replacement | |||||
|
23
|
23
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
24
|
24
35026-00000-000
Cableage
|
35026-00000-000 |
— | ||
|
25
|
25
09168-08015-000 GASKET(8.2X14X1.6) |
09168-08015-000 |
from US $1.28 |
||
|
26
|
26
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
26
|
26
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
27
|
27
24821-09000-000 Plug, breather |
24821-09000-000 |
US $7.39 |
||
| replacement | |||||
|
27
|
27
24821-09001-000 PLUG,T/M BREATHERPlug, breather |
24821-09001-000 |
from US $3.04 |
||
