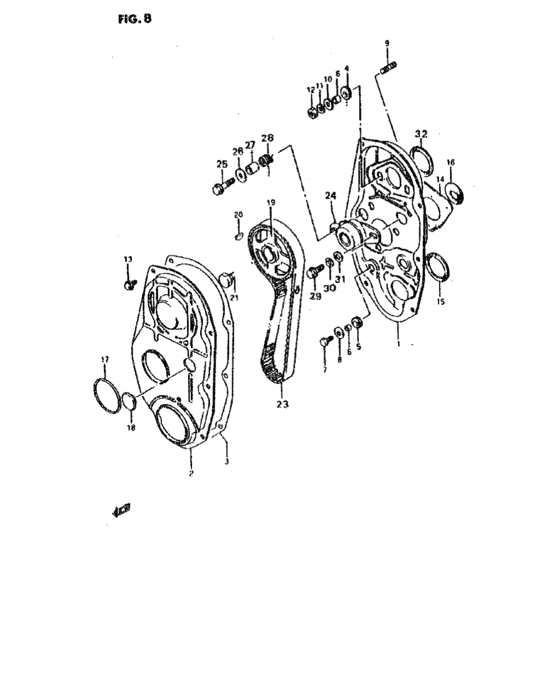

Carter distribution (CARTER DISTRIBUTION) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11380-78102-000
カバー,タイミングベルト,インサイド
|
11380-78102-000 |
— | ||
| replacement | |||||
|
1
|
1
11360-78100-000 COVER,TIMING BELT INSIDE |
11360-78100-000 |
US $30.40 |
||
|
2
|
2
11391-A7300-300
Couvercle carter
|
11391-A7300-300 |
— | ||
|
3
|
3
11399-A7301-000
Joint carter huille
|
11399-A7301-000 |
— | ||
|
4
|
4
11398-73000-000 GROMMET,COVER |
11398-73000-000 |
US $3.19 |
||
|
5
|
5
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
6
|
6
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
7
|
7
09100-06127-000
New Genuine Part
|
09100-06127-000 |
— | ||
| replacement | |||||
|
7
|
7
09100-06127-XC0
BOLT(6X20)
|
09100-06127-XC0 |
— | ||
|
8
|
8
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
8
|
8
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
9
|
9
09108-06078-000 BOLT,STUD |
09108-06078-000 |
US $4.48 |
||
|
10
|
10
09160-06027-000
Washer (6.5x20x1.2)
|
09160-06027-000 |
— | ||
| replacement | |||||
|
10
|
10
09160-06077-000 WASHER(6.5X20X1.2)Washer (6.5x20x1.2) |
09160-06077-000 |
from US $0.96 |
||
|
11
|
11
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
|
12
|
12
08310-11063-000 Nut m6x1x5 |
08310-11063-000 |
US $1.07 |
||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
01514-06103-000
Vis fixation deflect
|
01514-06103-000 |
— | ||
|
14
|
14
11482-73004-000
クッション,シールNO.2
|
11482-73004-000 |
— | ||
|
15
|
15
11483-73001-000
シール,タイミングベルト,NO.3
|
11483-73001-000 |
— | ||
| replacements | |||||
|
15
|
15
11480-78110-000 SEAL SET,TIMING COVER INSIDE |
11480-78110-000 |
US $13.92 |
||
|
15
|
15
11300-53831-000
SEAL SET,TIMING BELT COVER
|
11300-53831-000 |
— | ||
|
16
|
16
11485-73000-000
シール,タイミングカバーインサイド
|
11485-73000-000 |
— | ||
|
17
|
17
11484-73000-000 GROMMET,COVER OUTSIDE |
11484-73000-000 |
US $2.43 |
||
|
18
|
18
09250-26003-000
CAP(OD:32)
|
09250-26003-000 |
— | ||
| replacement | |||||
|
18
|
18
09250-26006-000 Cap(Od:32) |
09250-26006-000 |
from US $3.91 |
||
|
19
|
19
12741-78400-000
Pulley, cam shaft timing belt
|
12741-78400-000 |
— | ||
| replacement | |||||
|
19
|
19
12741-78403-000 PULLEY,CAMSHAFT TIMING BELT |
12741-78403-000 |
US $72.86 |
||
|
20
|
20
08341-31059-000 KEYKey |
08341-31059-000 |
from US $1.49 |
||
|
21
|
21
01107-12253-000
Vis fixation pignon
|
01107-12253-000 |
— | ||
|
23
|
23
12761-A7840-000
Courrie crantee
|
12761-A7840-000 |
— | ||
|
24
|
24
12810-84000-000
テンショナアッシ,タイミングベルト
|
12810-84000-000 |
— | ||
| replacement | |||||
|
24
|
24
12810-53A00-000 TENSIONER ASSY,TIMING BELT |
12810-53A00-000 |
from US $42.44 |
||
|
25
|
25
01517-08406-000
Bolt
|
01517-08406-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
25
|
25
01550-0840A-000 BOLT |
01550-0840A-000 |
from US $1.12 |
||
|
26
|
26
09160-T0807-500
Flat washer
|
09160-T0807-500 |
— | ||
|
27
|
27
09180-08111-000 SPACER(8.1X16X17)Spacer, front |
09180-08111-000 |
from US $2.08 |
||
|
28
|
28
12821-78100-000 SPRING,TENSIONER |
12821-78100-000 |
US $6.72 |
||
|
29
|
29
09103-08152-000 Bolt |
09103-08152-000 |
from US $1.93 |
||
| replacement | |||||
|
29
|
29
09103-08419-000 BOLT(8X25) |
09103-08419-000 |
from US $2.08 |
||
|
30
|
30
08321-B3108-600
Grower washer
|
08321-B3108-600 |
— | ||
|
31
|
31
09160-08033-000
Cl rel arm washer rh
|
09160-08033-000 |
— | ||
| replacement | |||||
|
31
|
31
09160-08126-000 WASHER(8.5X20X2.6) |
09160-08126-000 |
from US $3.35 |
||
|
32
|
32
11486-78110-000
Joint a. f. carter
|
11486-78110-000 |
— | ||
