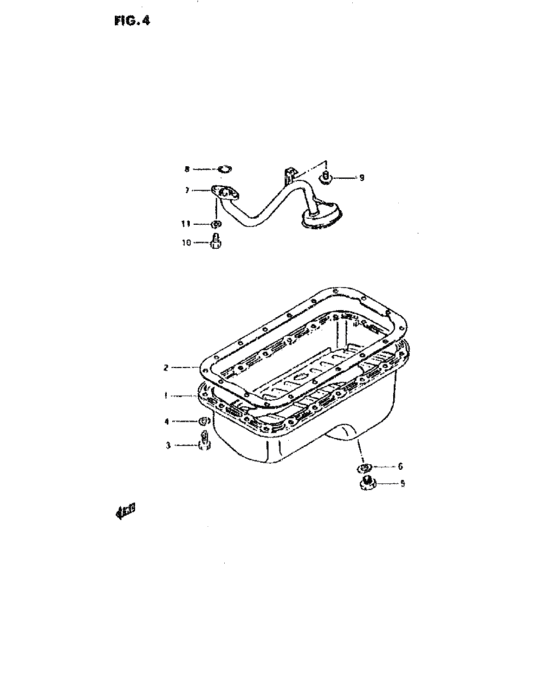

Carter huile (CARTER HUILE) Diagram Suzuki SIERRA
- Year
- -
- Sales region
- All regions
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11510-A8000-200
Carter inferieur
|
11510-A8000-200 |
— | ||
|
2
|
2
11529-B7300-100
Joint carter
|
11529-B7300-100 |
— | ||
|
3
|
3
09100-A0611-600
Screw
|
09100-A0611-600 |
— | ||
|
4
|
4
08321-A3106-600
Washer
|
08321-A3106-600 |
— | ||
|
5
|
5
09247-12101-000 BOLT |
09247-12101-000 |
US $2.24 |
||
|
6
|
6
09168-A1200-700
Joint
|
09168-A1200-700 |
— | ||
|
7
|
7
16520-80001-000 STRAINER,OIL |
16520-80001-000 |
US $59.25 |
||
|
8
|
8
09280-16004-000
O ring, shifting rod guide
|
09280-16004-000 |
— | ||
| replacement | |||||
|
8
|
8
09280-16005-000 O RING(D:2.4,ID:15.8)O ring, exhaust pipe |
09280-16005-000 |
from US $1.40 |
||
|
9
|
9
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
9
|
9
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
10
|
10
01107-06163-000 Bolt m6x1x16 |
01107-06163-000 |
US $1.09 |
||
| replacement | |||||
|
10
|
10
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
11
|
11
08321-A3106-300
Rondelle ressort
|
08321-A3106-300 |
— | ||
